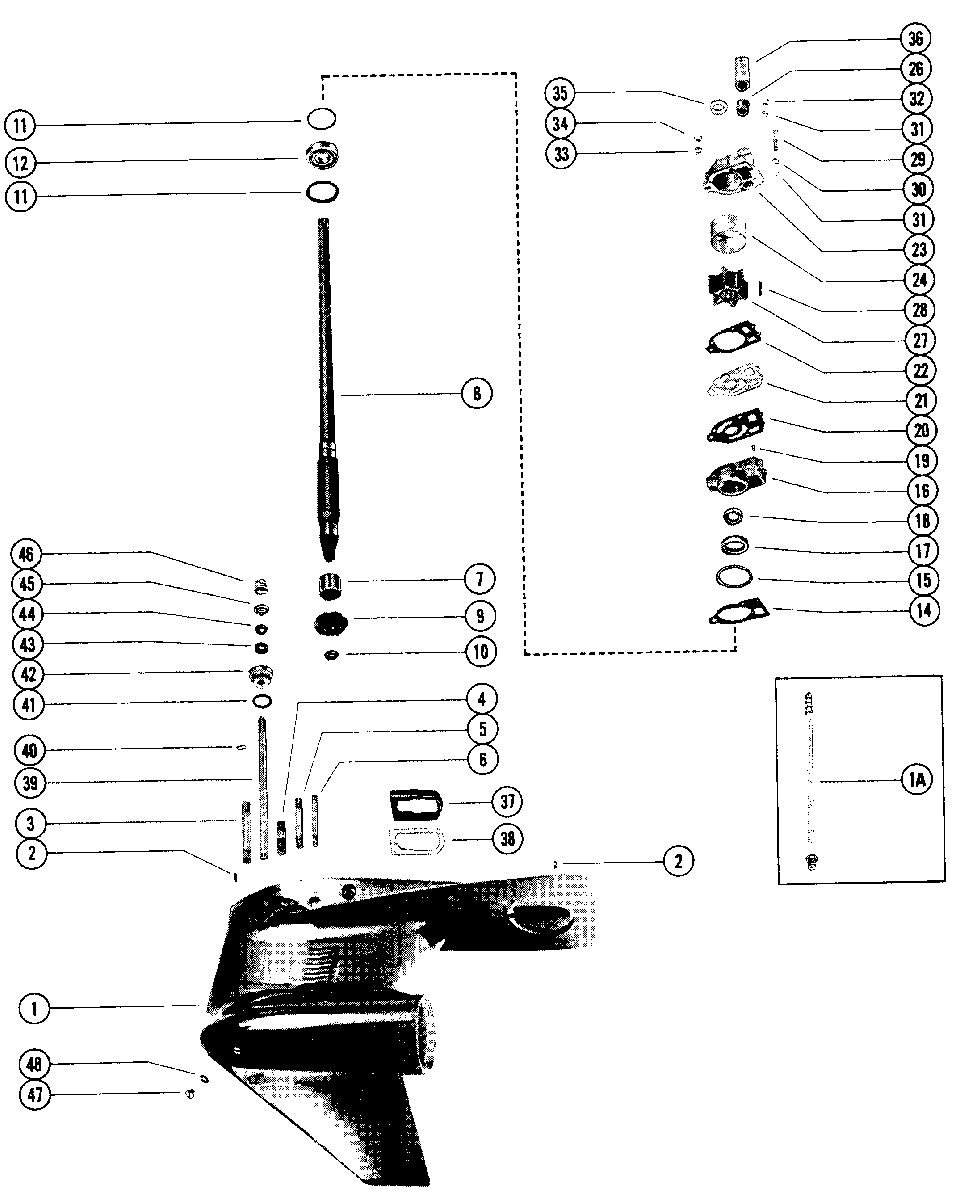

GEAR HOUSING ASSEMBLY, COMPLETE (PAGE 1) для Mercury - 1400, 140 7112773 THRU 7132512
-
№АртикулНазвание
-
1655-7333T24 GEAR HOUSING ASS'Y, COMP. SEE NOTE BELOWGEAR HOUSING ASS'Y, COMP. SEE NOTE BELOW
-
11655-7333T23 GEAR HOUSING ASS'Y
UNITED STATES 5189787 AND BELOW
AUSTRALIA 8052879 AND BELOW
CANADA 7125012 AND BELOWGEAR HOUSING ASS'Y
UNITED STATES 5189787 AND BELOW
AUSTRALIA 8052879 AND BELOW
CANADA 7125012 AND BELOW -
11655-7333T23 GEAR HOUSING ASS'Y
UNITED STATES 5189788 AND UP
CANADA 7125013 AND UPGEAR HOUSING ASS'Y
UNITED STATES 5189788 AND UP
CANADA 7125013 AND UP -
1A22-85822A10 CONNECTOR ASSEMBLY, SPEEDOMETER
UNITED STATES 5189788 AND UP
CANADA 7125013 AND UPCONNECTOR ASSEMBLY, SPEEDOMETER
UNITED STATES 5189788 AND UP
CANADA 7125013 AND UP -
217-8M0084726 DOWEL PIN, GEAR HOUSING LOCATINGDOWEL PIN, GEAR HOUSING LOCATING
-
316-57921 STUD
GEAR HOUSING TO DRIVE SHAFT HOUSING (4")STUD
GEAR HOUSING TO DRIVE SHAFT HOUSING (4") -
416-8M0133358 STUD
GEAR HOUSING TO DRIVE SHAFT HOUSING (2 1/16")STUD
GEAR HOUSING TO DRIVE SHAFT HOUSING (2 1/16") -
516-8M0034463 STUD
WATER PUMP BASE AND BODY TO GEAR HOUSING (3 3/8")STUD
WATER PUMP BASE AND BODY TO GEAR HOUSING (3 3/8") -
616-306671 STUD
WATER PUMP BASE AND BODY TO GEAR HOUSING (3 1/8")STUD
WATER PUMP BASE AND BODY TO GEAR HOUSING (3 1/8") -
731-32898T BEARING, ROLLER - DRIVE SHAFTBEARING, ROLLER - DRIVE SHAFT
-
845-42646 DRIVE SHAFTDRIVE SHAFT
-
943-68548T3 GEAR, PINION - DRIVE SHAFTGEAR, PINION - DRIVE SHAFT
Производитель Mercury-Mercruiser -
1011-35921 NUT, PINION GEAR TO DRIVE SHAFTNUT, PINION GEAR TO DRIVE SHAFT
-
1123-70412 SPACER, BALL BEARING TO BASESPACER, BALL BEARING TO BASE
-
1115-57007A1 SHIM, BALL BEARING TO BASESHIM, BALL BEARING TO BASE
-
1231-69220T ROLLER BEARING, DRIVE SHAFTROLLER BEARING, DRIVE SHAFT
-
1427-856704 GASKET, WATER PUMP BASEGASKET, WATER PUMP BASE
-
1525-33145 "O" RING, WATER PUMP BASE"O" RING, WATER PUMP BASE
-
1646-96146A5 WATER PUMP BASE ASSEMBLYWATER PUMP BASE ASSEMBLY
-
1726-94038 OIL SEAL, WATER PUMP BASEOIL SEAL, WATER PUMP BASE
-
1826-16977 OIL SEAL, WATER PUMP BASEOIL SEAL, WATER PUMP BASE
-
1917-8M0084627 DOWEL PIN
WATER PUMP BASE TO WATER PUMP BODYDOWEL PIN
WATER PUMP BASE TO WATER PUMP BODY -
2027-8M0090319 GASKET, LOWER
WATER PUMP BASE TO FACE PLATEGASKET, LOWER
WATER PUMP BASE TO FACE PLATE -
21324351 PLATE, FACE
WATER PUMP BASE TO WATER PUMP BODYPLATE, FACE
WATER PUMP BASE TO WATER PUMP BODY -
2227-858524 GASKET, UPPER
FACE PLATE TO WATER PUMP BODYGASKET, UPPER
FACE PLATE TO WATER PUMP BODY -
2346-96148T1 WATER PUMP BODY ASSEMBLYWATER PUMP BODY ASSEMBLY
-
2448752T INSERT, WATER PUMP BODYINSERT, WATER PUMP BODY
-
2626-38970 SEAL, RUBBER - WATER INLET TUBESEAL, RUBBER - WATER INLET TUBE
-
2747-89984T4 IMPELLER, WATER PUMPIMPELLER, WATER PUMP
-
2828-8M0032834 KEY, IMPELLER DRIVEKEY, IMPELLER DRIVE
-
2910-30720 SCREW
WATER PUMP BODY TO GEAR HOUSING (2 1/4")SCREW
WATER PUMP BODY TO GEAR HOUSING (2 1/4") -
3013-26992 LOCKWASHER, WATER PUMP BODY SCREWLOCKWASHER, WATER PUMP BODY SCREW
-
3112-29245 WASHER
WATER PUMP BODY FASTENING SCREW AND STUDWASHER
WATER PUMP BODY FASTENING SCREW AND STUD -
3211-35888 NUT, WATER PUMP FASTENING SCREWNUT, WATER PUMP FASTENING SCREW
-
3312-36001 WASHER, WATER PUMP BODY FASTENING STUDWASHER, WATER PUMP BODY FASTENING STUD
-
3411-82670911 NUT, WATER PUMP BODY FASTENING STUDNUT, WATER PUMP BODY FASTENING STUD
-
3525-30271 RING
RUBBER - CENTRIFUGAL SLINGER (DRIVE SHAFT)RING
RUBBER - CENTRIFUGAL SLINGER (DRIVE SHAFT) -
3623-29804T SLEEVE, GUIDE - WATER INLET TUBESLEEVE, GUIDE - WATER INLET TUBE
-
3737641001 SEAL, EXHAUST ELBOWSEAL, EXHAUST ELBOW
-
3838051 PLATE, SUPPORT - EXHAUST TUBE SEALPLATE, SUPPORT - EXHAUST TUBE SEAL
-
3976062A1 SHAFT ASSEMBLY, SHIFT - LOWERSHAFT ASSEMBLY, SHIFT - LOWER
-
4053-29641 "E" RING, RETAINING - SHIFT SHAFT"E" RING, RETAINING - SHIFT SHAFT
-
4125-25439 "O" RING, SHIFT SHAFT BUSHING"O" RING, SHIFT SHAFT BUSHING
-
4223-77631A2 BUSHING ASSEMBLY, SHIFT SHAFTBUSHING ASSEMBLY, SHIFT SHAFT
-
4326-8164641 OIL SEAL, SHIFT SHAFT BUSHINGOIL SEAL, SHIFT SHAFT BUSHING
-
4412-77674 WASHER, RUBBER - SHIFT SHAFT BUSHINGWASHER, RUBBER - SHIFT SHAFT BUSHING
-
4578036 SPACER, LOWER - REVERSE LOCKING
NOT USED WITH FULL POWER TRIMSPACER, LOWER - REVERSE LOCKING
NOT USED WITH FULL POWER TRIM -
4643308T1 CAM, REVERSE LOCKING
NOT USED WITH FULL POWER TRIMCAM, REVERSE LOCKING
NOT USED WITH FULL POWER TRIM -
4710-79953Q04 SCREW, GREASE FILLER AND VENT HOLESCREW, GREASE FILLER AND VENT HOLE
-
4722-8M0058389 PLUG, DRAIN (MAGNETIC)PLUG, DRAIN (MAGNETIC)
-
4812-191833 WASHER
GREASE FILLER AND VENT HOLE SCREWWASHER
GREASE FILLER AND VENT HOLE SCREW -
-27-85653A87 GASKET SETGASKET SET
-
-46-96148A8 WATER PUMP REPAIR KITWATER PUMP REPAIR KIT
-
-26-55682A1 SEAL REPAIR KITSEAL REPAIR KIT
