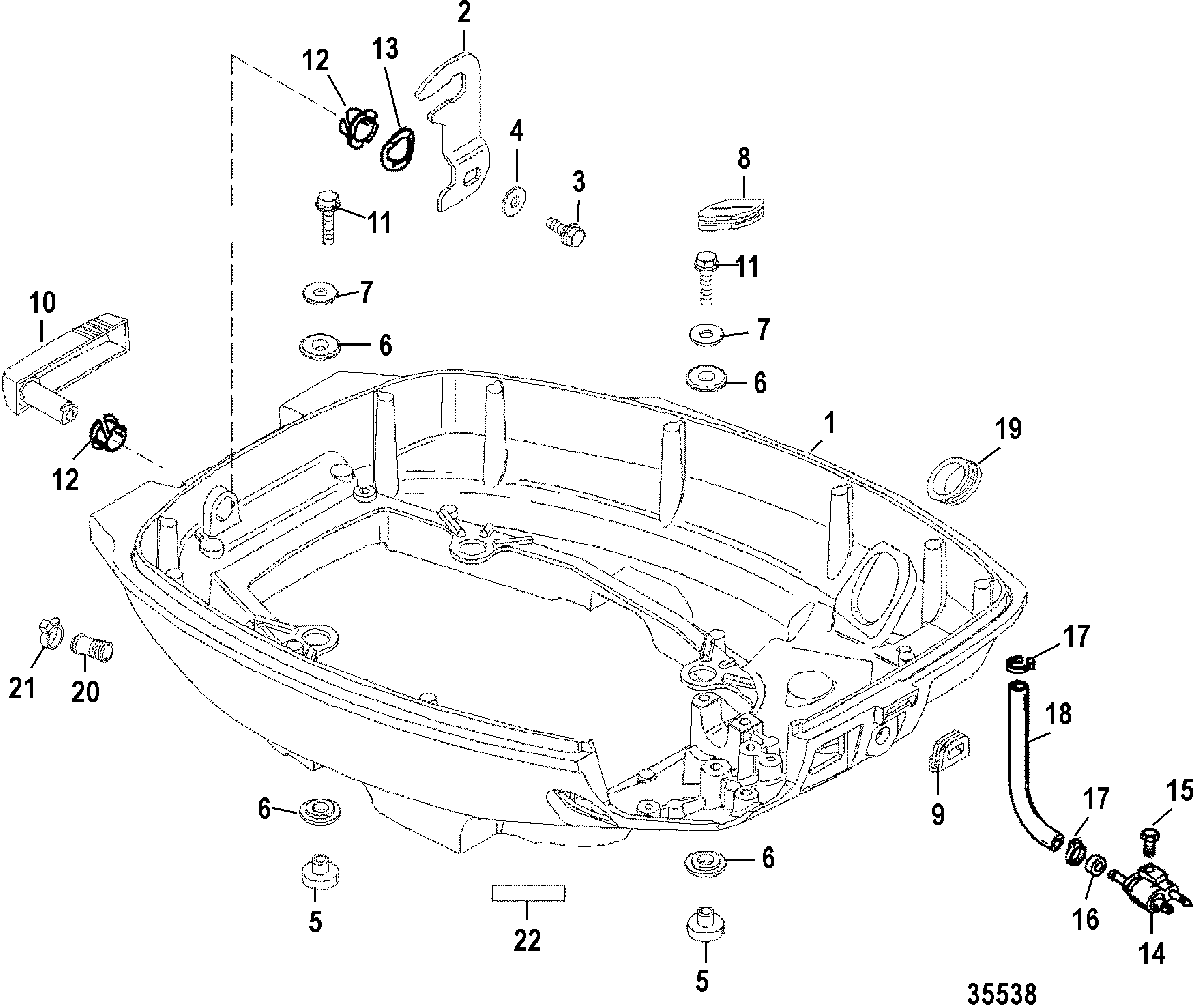

Bottom Cowl для Mercury - 15 (4-STROKE) 0G590000 THRU 0G760299
-
№АртикулНазвание
-
14000-835416A1 BOTTOM COWL
(BLACK)BOTTOM COWL
(BLACK) -
14000-835416A2 BOTTOM COWL
(GRAY)BOTTOM COWL
(GRAY) -
2852480 LATCH HOOKLATCH HOOK
-
310-4006731 SCREW, (M6 x 16)SCREW, (M6 x 16)
-
412-4002316 WASHERWASHER
-
523-826618 BUSHINGBUSHING
-
625-828129 GROMMETGROMMET
-
712-69057 WASHER, (.281 x .734 x .063)WASHER, (.281 x .734 x .063)
-
825-855289T GROMMETGROMMET
-
925-857002 GROMMET
(HANDLE)GROMMET
(HANDLE) -
9827403 PLUG
(NON-HANDLE)PLUG
(NON-HANDLE) -
10825782F1 LEVER, Cowl Latch
(BLACK)LEVER, Cowl Latch
(BLACK) -
10825782F1 LEVER, Cowl Latch
(GRAY)LEVER, Cowl Latch
(GRAY) -
1110-1993735 SCREW, (M6 x 35 MM)SCREW, (M6 x 35 MM)
-
1223-812707 BUSHINGBUSHING
-
1313-12134 WASHER, WaveWASHER, Wave
-
1422-15781A5 CONNECTOR, Fuel - BrassCONNECTOR, Fuel - Brass
-
1510-40011129 SCREW, (M6 x 25) Stainless SteelSCREW, (M6 x 25) Stainless Steel
-
1625-18202 GROMMETGROMMET
-
1754-816311T TIE STRAP, (8.00 Inches)TIE STRAP, (8.00 Inches)
-
1832-9912878 HOSE, (.187) (26.00 Inches Bulk) (Cut to 21 IN.)HOSE, (.187) (26.00 Inches Bulk) (Cut to 21 IN.)
-
19826037 PLUGPLUG
-
2022-813613 FITTINGFITTING
-
2154-816311T TIE STRAP, (8.00 Inches)TIE STRAP, (8.00 Inches)
-
2237-111851 SHIFT DECAL
(HANDLE)SHIFT DECAL
(HANDLE)
