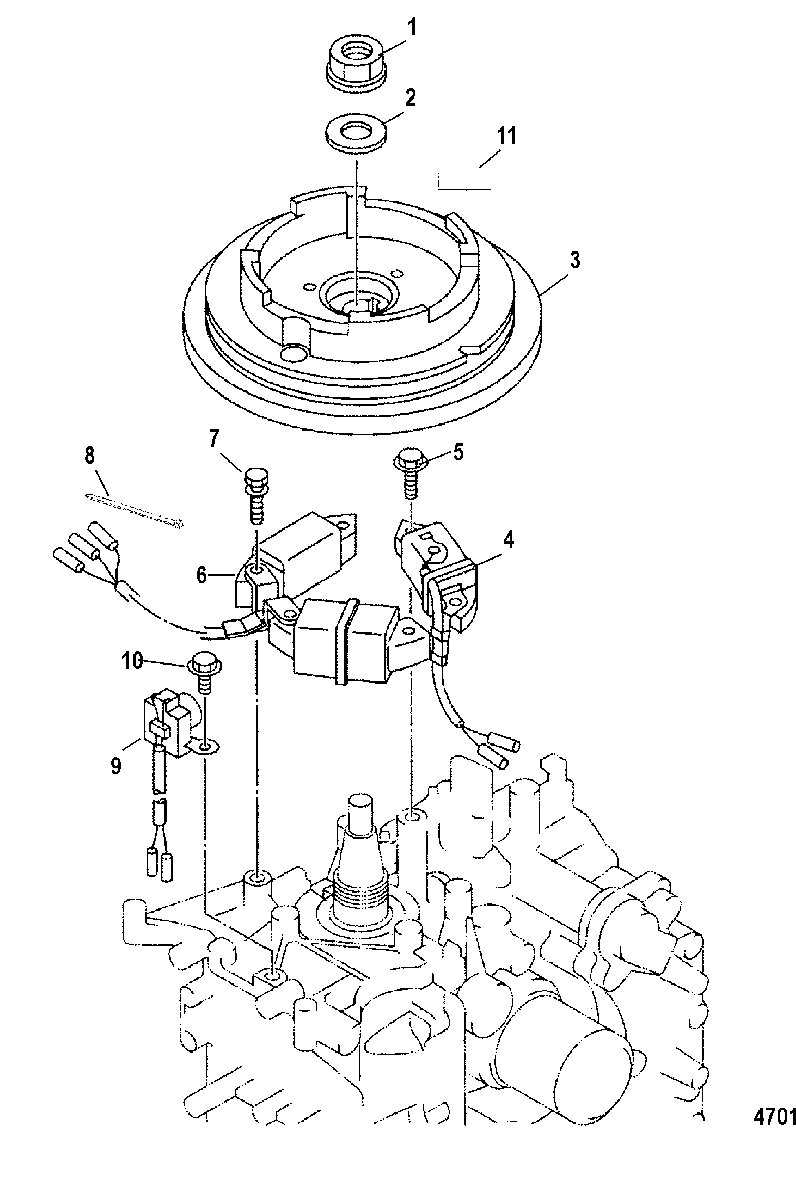

Flywheel для Mercury - 15 (4-STROKE) 0G590000 THRU 0G760299
-
№АртикулНазвание
-
111-96650M NUT, (M16)NUT, (M16)
-
212-96651M WASHERWASHER
-
3856031 FLYWHEEL
(MANUAL)FLYWHEEL
(MANUAL) -
3835397 FLYWHEEL
(ELECTRIC)FLYWHEEL
(ELECTRIC) -
4835399T COIL, ChargingCOIL, Charging
-
510-853536 BOLT, (M6 x 25)BOLT, (M6 x 25)
-
6835387 COIL, Lighting
(MANUAL)COIL, Lighting
(MANUAL) -
6855944 COIL, Lighting
(ELECTRIC)COIL, Lighting
(ELECTRIC) -
7855782 BOLT (M6 X 30)
(MANUAL)BOLT (M6 X 30)
(MANUAL) -
710-853531 BOLT, (M6 x 40)
(ELECTRIC)BOLT, (M6 x 40)
(ELECTRIC) -
854-816311T TIE STRAP, (8.00 Inches)TIE STRAP, (8.00 Inches)
-
9835395 PULSERPULSER
-
1010-811188T BOLT, (M6 x 16)BOLT, (M6 x 16)
-
11NSS NOT SOLD SEPARATE, Decal-Warning NeutralNOT SOLD SEPARATE, Decal-Warning Neutral
