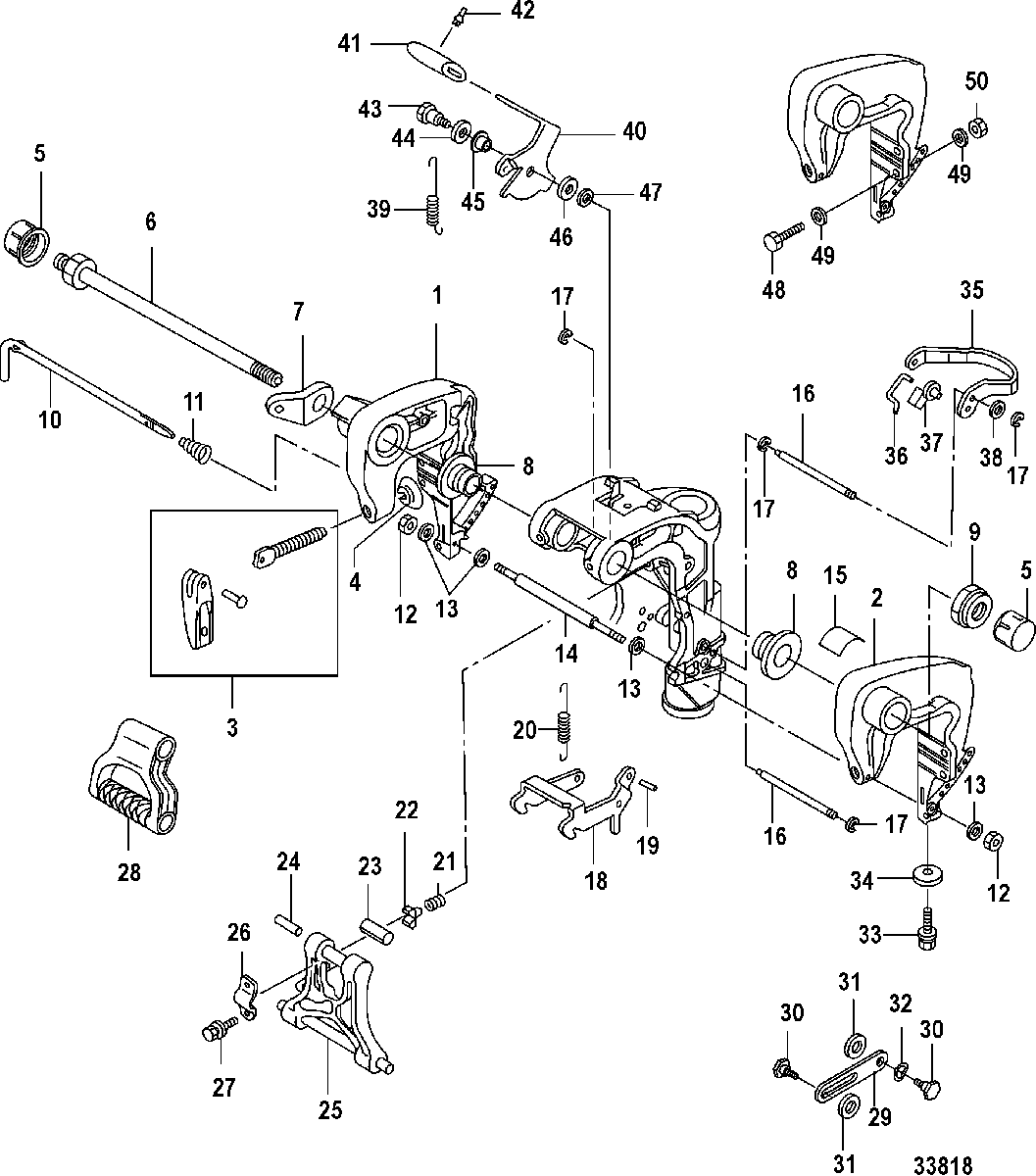

Clamp Brackets, Manual Tilt для Mercury - 15 Carb(2CYL)(4-STROKE) 0R235949 & Up
-
№АртикулНазвание
-
13418-879147T73 CLAMP BRACKET, StarboardCLAMP BRACKET, Starboard
-
23418-879147T74 CLAMP BRACKET, PortCLAMP BRACKET, Port
-
310-8M0060117 THUMB SCREW ASSEMBLY, 14 MM Thread SizeTHUMB SCREW ASSEMBLY, 14 MM Thread Size
-
412-95379 PADPAD
-
511-85372214 CAP NUTCAP NUT
-
6898101191 TILT TUBE ASSEMBLYTILT TUBE ASSEMBLY
-
7895163002 PLATEPLATE
-
823-8537435 BUSHINGBUSHING
-
911-853722029 NUT, NylonNUT, Nylon
-
10898103101 THRUST ROD ASSEMBLYTHRUST ROD ASSEMBLY
-
1124-815093003 SPRINGSPRING
-
1211-400212 NUTNUT
-
1312-16826 WASHERWASHER
-
14898101938 DISTANCE PIECEDISTANCE PIECE
-
1537-823701004 DECAL, Co-PilotDECAL, Co-Pilot
-
16898101152 SHAFT, Reverse LockSHAFT, Reverse Lock
-
1753-953181 E RINGE RING
-
18879147T77 REVERSE LOCKREVERSE LOCK
-
1917-170331 PIN, SpringPIN, Spring
-
2024-898103111 SPRING, Reverse LockSPRING, Reverse Lock
-
2124-953832 SPRINGSPRING
-
22853774 STOPSTOP
-
2323-163364 BUSHINGBUSHING
-
2417-898103104 PIN, SpringPIN, Spring
-
25898103103 STOPPER, TiltSTOPPER, Tilt
-
26803781001 SET PLATESET PLATE
-
2710-8M0101654 BOLTBOLT
-
28815082002 HANDLE, CarryingHANDLE, Carrying
-
29898103105 STOPPER, TiltSTOPPER, Tilt
-
3010-898101014 SCREWSCREW
-
3112-8M0135942 WASHERWASHER
-
3213-8537232 WAVE WASHERWAVE WASHER
-
3310-167051 BOLT, (M6 x 20)BOLT, (M6 x 20)
-
3497-823913Q ANODEANODE
-
35898103108 ARM, Reverse LockARM, Reverse Lock
-
36898103112 LINK, Reverse LockLINK, Reverse Lock
-
37176431 SNAP, Link RodSNAP, Link Rod
-
3823-898103109 COLLARCOLLAR
-
3924-898103110 SPRING, Reverse Lock LeverSPRING, Reverse Lock Lever
-
40879147T76 LEVER, Reverse LockLEVER, Reverse Lock
-
41898103106 GRIP, Reverse Lock LeverGRIP, Reverse Lock Lever
-
428M0051399 BUTTONBUTTON
-
4310-803790001 BOLT, ShoulderBOLT, Shoulder
-
4412-16192 WASHERWASHER
-
4523-898103107 BUSHINGBUSHING
-
4612-953925 WASHERWASHER
-
4712-953921 WASHER, Stainless SteelWASHER, Stainless Steel
-
4810-8M0094877 BOLTBOLT
-
4912-16192 WASHERWASHER
-
5011-95374 NUT, NylonNUT, Nylon
