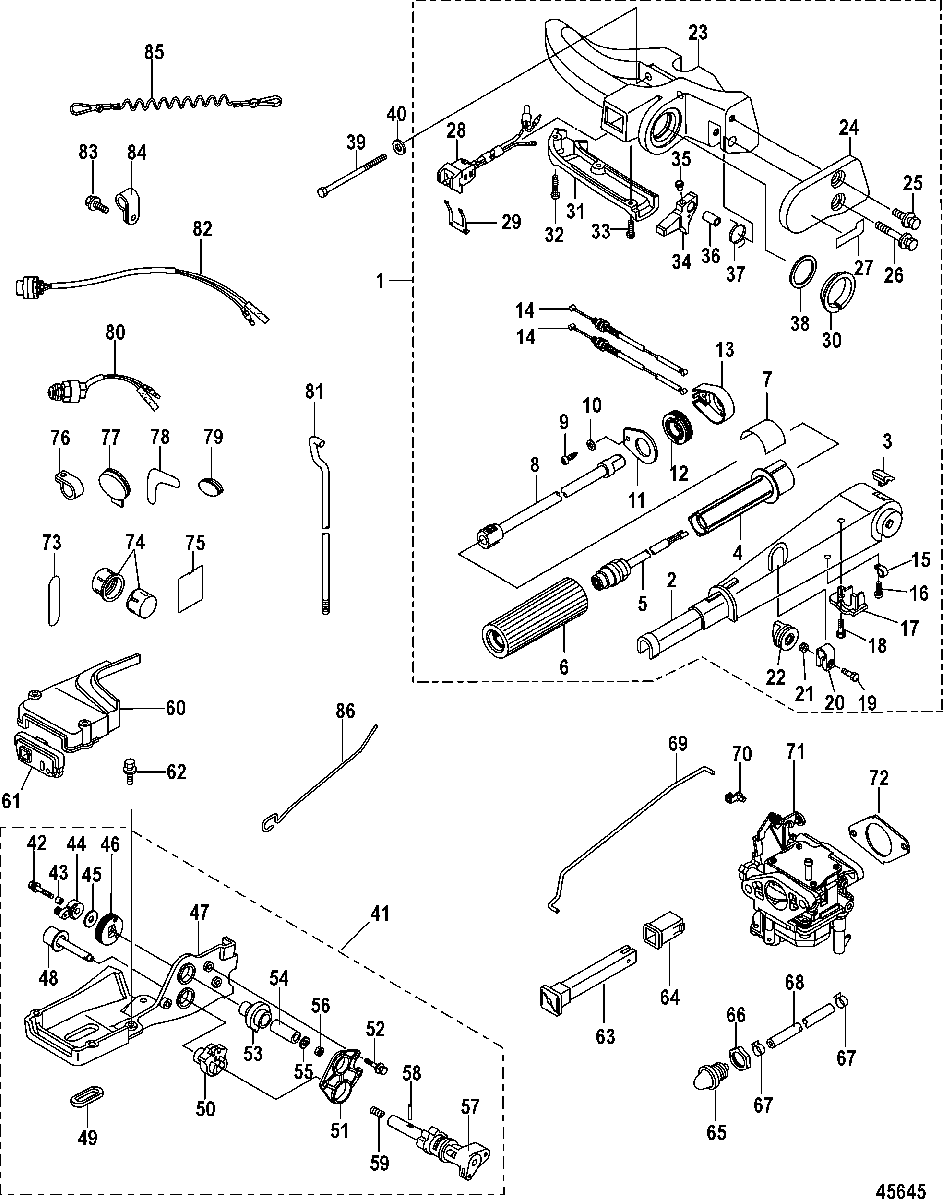

Tiller Handle Conversion Kit, Electric - 8M0051059 для Mercury - 15 Carb(2CYL)(4-STROKE) 0R235949 & Up
-
№АртикулНазвание
-
-8M0104197 CONVERSION KIT, Tiller Handle, (Electric Remote Control to Electric Handle)CONVERSION KIT, Tiller Handle, (Electric Remote Control to Electric Handle)
-
1NSS NOT SOLD SEPARATE, TILLER HANDLE ASSEMBLYNOT SOLD SEPARATE, TILLER HANDLE ASSEMBLY
-
28M0051374 TILLER HANDLETILLER HANDLE
-
38M0051375 PLUG, CapPLUG, Cap
-
48M0051377 GRIPGRIP
-
58M0051405 SWITCH ASSEMBLY, StopSWITCH ASSEMBLY, Stop
-
68M0051376 GRIP, RubberGRIP, Rubber
-
737-896853008 DECAL, Tiller Handle Shift-RabbitDECAL, Tiller Handle Shift-Rabbit
-
88M0051379 SHAFT, ThrottleSHAFT, Throttle
-
910-878608 SCREW, (#10-16 x .500)SCREW, (#10-16 x .500)
-
1012-8M0108373 WASHER, Stainless SteelWASHER, Stainless Steel
-
118M0051388 COVERCOVER
-
128M0051386 PULLEYPULLEY
-
138M0051387 HOUSINGHOUSING
-
148M0051391 CABLE, ThrottleCABLE, Throttle
-
1554-22740 CLIPCLIP
-
1610-8M0051381 SCREWSCREW
-
178M0051380 BRACKET, AluminumBRACKET, Aluminum
-
1810-8M0051381 SCREWSCREW
-
1910-4000330 BOLTBOLT
-
208M0051382 CLAMP, Friction - ThrottleCLAMP, Friction - Throttle
-
2124-8M0051384 SPRING, Stainless SteelSPRING, Stainless Steel
-
228M0051383 NUTNUT
-
238M0051392 HANDLE, CarryingHANDLE, Carrying
-
248M0051400 COVERCOVER
-
2510-823042 BOLT, Stainless SteelBOLT, Stainless Steel
-
2610-8M0051402 BOLT, Stainless SteelBOLT, Stainless Steel
-
2737-892904006 DECAL, Tiller Lock ReleaseDECAL, Tiller Lock Release
-
2887-892395A01 SWITCH ASSEMBLY, StopSWITCH ASSEMBLY, Stop
-
298M0032846 RETAINER, BrassRETAINER, Brass
-
3023-8M0051403 BUSHING, PlasticBUSHING, Plastic
-
318M0051393 COVERCOVER
-
3210-4000330 BOLTBOLT
-
3310-8M0051394 SCREW, Stainless Steel (M4 x 16)SCREW, Stainless Steel (M4 x 16)
-
348M0051396 LEVER, Tiller Lock - Stainless SteelLEVER, Tiller Lock - Stainless Steel
-
358M0051383 NUTNUT
-
368M0051397 COLLAR, Stainless SteelCOLLAR, Stainless Steel
-
3724-8M0051398 SPRING, Stainless SteelSPRING, Stainless Steel
-
3812-8M0051404 WASHER, RubberWASHER, Rubber
-
3910-8M0058362 BOLT, SteelBOLT, Steel
-
4012-879194340 WASHER, Stainless SteelWASHER, Stainless Steel
-
41NSS NOT SOLD SEPARATE, GEAR ASSEMBLY, Throttle OnlyNOT SOLD SEPARATE, GEAR ASSEMBLY, Throttle Only
-
4210-8M0102279 BOLTBOLT
-
4323-895126004 COLLAR, Stainless Steel (6.3 mm)COLLAR, Stainless Steel (6.3 mm)
-
44898103144 OPENER, ThrottleOPENER, Throttle
-
4512-953921 WASHER, Stainless SteelWASHER, Stainless Steel
-
46895101401 DRUM, ThrottleDRUM, Throttle
-
47879147T85 BRACKET, Shift LeverBRACKET, Shift Lever
-
48898103139 KNOBKNOB
-
4925-898103140 GROMMETGROMMET
-
50895161 GEAR, DrivenGEAR, Driven
-
51898103141 GEAR PLATEGEAR PLATE
-
5210-823042 BOLTBOLT
-
53898103142 GEAR , DriveGEAR , Drive
-
5423-895162001 COLLAR, SteelCOLLAR, Steel
-
5512-16826 WASHERWASHER
-
5611-8537227 NUT, NylonNUT, Nylon
-
57898103136 SHIFT SHAFT ASSEMBLYSHIFT SHAFT ASSEMBLY
-
5817-16085003 PINPIN
-
5924-813028003 SPRINGSPRING
-
60879147T86 COVERCOVER
-
6125-853709007 GROMMETGROMMET
-
6210-167051 BOLTBOLT
-
63855565002 ROD, ChokeROD, Choke
-
6423-851858005 BUSHINGBUSHING
-
65895124 PUMP ASSEMBLY, PrimingPUMP ASSEMBLY, Priming
-
6611-895177 NUTNUT
-
6754-898101964 CLIPCLIP
-
6832-879194473 HOSE, Rubber (300 mm)HOSE, Rubber (300 mm)
-
69855562003 LINK RODLINK ROD
-
70855561010 SNAP, Link RodSNAP, Link Rod
-
713303-8M0109533 CARBURETOR ASSEMBLYCARBURETOR ASSEMBLY
-
7227-898101981 GASKETGASKET
-
7337-859278004 DECAL, StartDECAL, Start
-
7411-85372214 CAP NUTCAP NUT
-
7537-898101978 DECAL, Wiring DiagramDECAL, Wiring Diagram
-
7654-17169 CLAMPCLAMP
-
7725-898101963 GROMMETGROMMET
-
7837-859278003 DECAL, Throttle OnlyDECAL, Throttle Only
-
7925-898101962 GROMMETGROMMET
-
8087-8M0127937 SWITCH ASSEMBLY, NeutralSWITCH ASSEMBLY, Neutral
-
81898103154 SHIFT RODSHIFT ROD
-
8287-853820A02 SWITCH ASSEMBLY, StartSWITCH ASSEMBLY, Start
-
8310-8230427 BOLT, (M6 x 12)BOLT, (M6 x 12)
-
8454-953951 CLAMPCLAMP
-
858M0092850 LANYARD ASSEMBLYLANYARD ASSEMBLY
-
86898103145 ROD, ThrottleROD, Throttle
