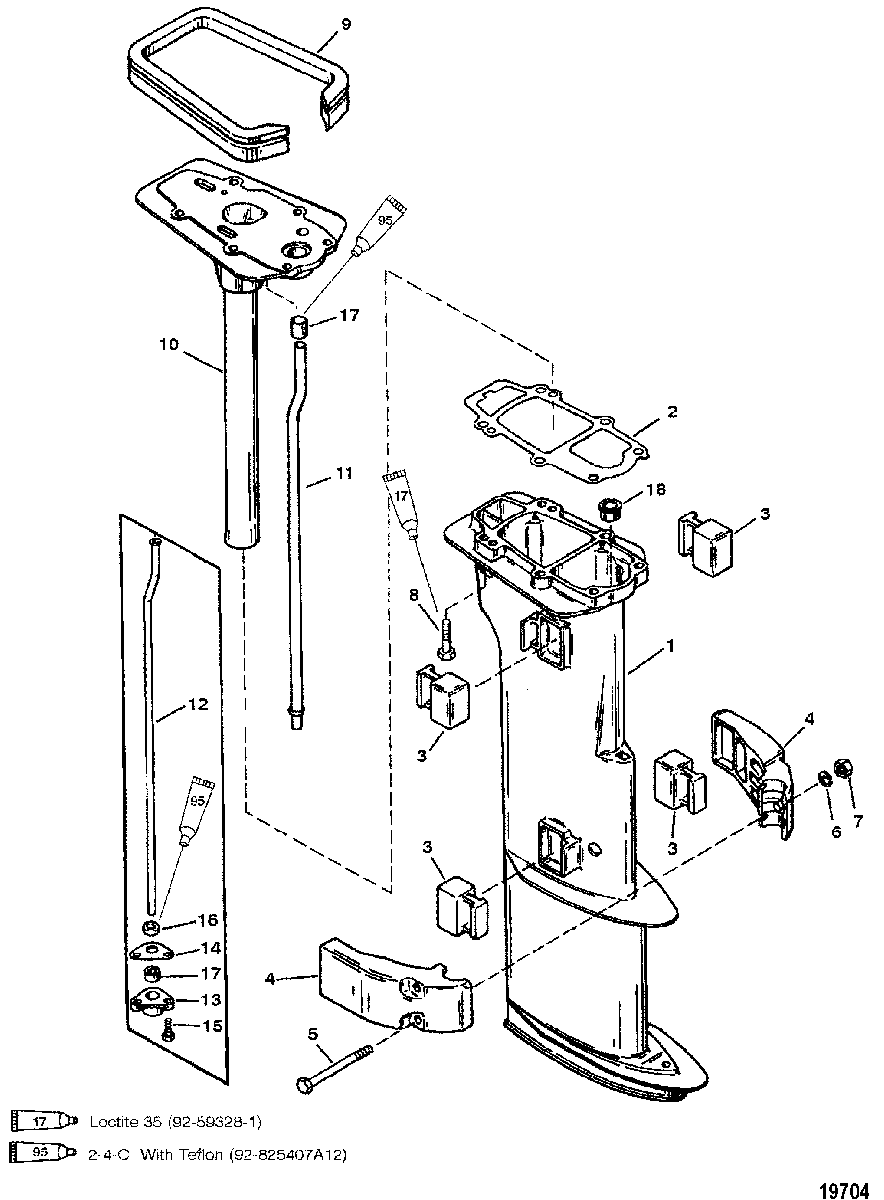

Driveshaft Housing для Mercury - 15 SEA PRO 9927000 THRU 0P016999
-
№АртикулНазвание
-
11596-822154A1 HOUSING ASSEMBLY
(SHORT) BLACKHOUSING ASSEMBLY
(SHORT) BLACK -
11597-822155A1 HOUSING ASSEMBLY
(LONG) BLACKHOUSING ASSEMBLY
(LONG) BLACK -
11596-822154A2 HOUSING ASSEMBLY
(SHORT) GRAYHOUSING ASSEMBLY
(SHORT) GRAY -
11597-822155A2 HOUSING ASSEMBLY
(LONG) GRAYHOUSING ASSEMBLY
(LONG) GRAY -
227-195992 GASKET, Driveshaft HousingGASKET, Driveshaft Housing
-
38M0039074 MOUNTMOUNT
-
442374F6 COVER, Mount
(BLACK)COVER, Mount
(BLACK) -
442374F6 COVER
(GRAY)COVER
(GRAY) -
510-4009238 SCREW, (M6 x 80)SCREW, (M6 x 80)
-
612-29245 WASHER, (.281 x .500 x .060) Stainless SteelWASHER, (.281 x .500 x .060) Stainless Steel
-
711-400212 NUT, (M6) Stainless SteelNUT, (M6) Stainless Steel
-
810-40011131 SCREW, (M6 x 35) Stainless SteelSCREW, (M6 x 35) Stainless Steel
-
926-11287001 SEAL, Adapter PlateSEAL, Adapter Plate
-
108M0036855 ADAPTOR PLATE
(NO EXHAUST TUBE) USE WITH DESIGN II WATER TUBEADAPTOR PLATE
(NO EXHAUST TUBE) USE WITH DESIGN II WATER TUBE -
1041344T6 ADAPTOR PLATE ASSEMBLY
(WITH EXHAUST TUBE) USE WITH DESIGN II WATER TUBEADAPTOR PLATE ASSEMBLY
(WITH EXHAUST TUBE) USE WITH DESIGN II WATER TUBE -
1132-881203A1 TUBE ASSEMBLY, Water
(SHORT) USE WITH DESIGN II WATER TUBETUBE ASSEMBLY, Water
(SHORT) USE WITH DESIGN II WATER TUBE -
1132-881203A2 TUBE ASSEMBLY, Water
(LONG) USE WITH DESIGN II WATER TUBETUBE ASSEMBLY, Water
(LONG) USE WITH DESIGN II WATER TUBE -
10413448 ADAPTOR PLATE
(NO TUBE) USE WITH DESIGN I WATER TUBE SEE PARTS BULLETIN #94-3ADAPTOR PLATE
(NO TUBE) USE WITH DESIGN I WATER TUBE SEE PARTS BULLETIN #94-3 -
1041344A3 ADAPTOR PLATE ASSEMBLY
(1-1/8 IN. I.D. TUBE) USE WITH DESIGN I WATER TUBE SEE PARTS BULLETIN #94-3ADAPTOR PLATE ASSEMBLY
(1-1/8 IN. I.D. TUBE) USE WITH DESIGN I WATER TUBE SEE PARTS BULLETIN #94-3 -
1232-42123 TUBE, Water
(SHORT) USE WITH DESIGN I WATER TUBE SEE PARTS BULLETIN #94-3TUBE, Water
(SHORT) USE WITH DESIGN I WATER TUBE SEE PARTS BULLETIN #94-3 -
1232-42122 TUBE, Water
(LONG) USE WITH DESIGN I WATER TUBE SEE PARTS BULLETIN #94-3TUBE, Water
(LONG) USE WITH DESIGN I WATER TUBE SEE PARTS BULLETIN #94-3 -
1342371 HOLDER
USE WITH DESIGN I WATER TUBE SEE PARTS BULLETIN #94-3HOLDER
USE WITH DESIGN I WATER TUBE SEE PARTS BULLETIN #94-3 -
1427-192012 GASKET
USE WITH DESIGN I WATER TUBE SEE PARTS BULLETIN #94-3GASKET
USE WITH DESIGN I WATER TUBE SEE PARTS BULLETIN #94-3 -
1510-40011107 SCREW, (M5 x 16) Stainless Steel
USE WITH DESIGN I WATER TUBE SEE PARTS BULLETIN #94-3SCREW, (M5 x 16) Stainless Steel
USE WITH DESIGN I WATER TUBE SEE PARTS BULLETIN #94-3 -
1623-42465 SPACER
USE WITH DESIGN I WATER TUBE SEE PARTS BULLETIN #94-3SPACER
USE WITH DESIGN I WATER TUBE SEE PARTS BULLETIN #94-3 -
1726-42380001 SEALSEAL
-
18445551 BLOCK, Bearing
(LONG)BLOCK, Bearing
(LONG) -
-27-42364A92 GASKET SET, EngineGASKET SET, Engine
