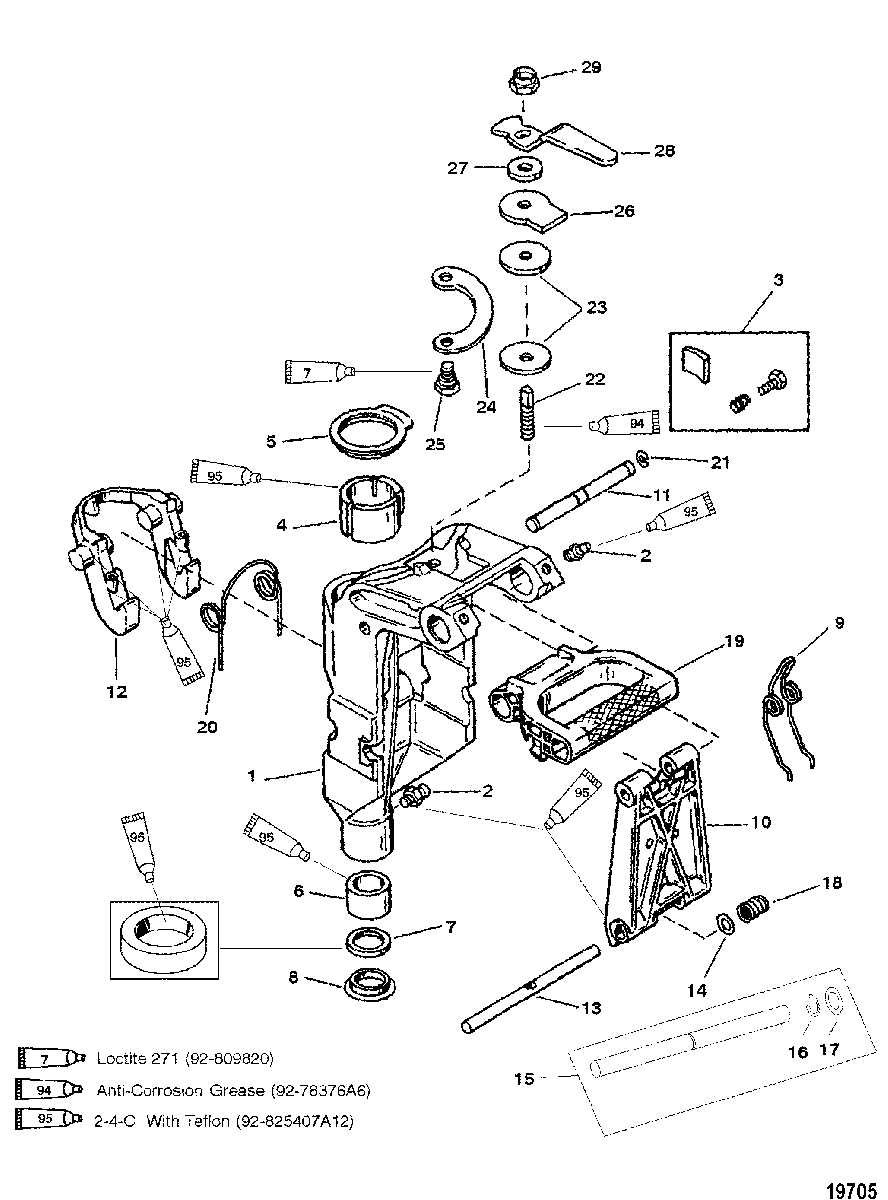

Swivel Bracket для Mercury - 15 SEA PRO 9927000 THRU 0P016999
-
№АртикулНазвание
-
13402-8831A13 SWIVEL BRACKET ASSEMBLY
(Black) SN# USA-0G031926/BEL-9803666 & BelowSWIVEL BRACKET ASSEMBLY
(Black) SN# USA-0G031926/BEL-9803666 & Below -
13402-8831A13 SWIVEL BRACKET ASSEMBLY
(Gray) SN# USA-0G031926/BEL-9803666 & BelowSWIVEL BRACKET ASSEMBLY
(Gray) SN# USA-0G031926/BEL-9803666 & Below -
13402-8831T08 SWIVEL BRACKET ASSEMBLY
(Black) SN# USA-0G031927/BEL-9803667 & UpSWIVEL BRACKET ASSEMBLY
(Black) SN# USA-0G031927/BEL-9803667 & Up -
13402-8831T08 SWIVEL BRACKET ASSEMBLY
(Gray) SN# USA-0G031927/BEL-9803667 & UpSWIVEL BRACKET ASSEMBLY
(Gray) SN# USA-0G031927/BEL-9803667 & Up -
222-74036 FITTING, GreaseFITTING, Grease
-
342124A2 PLATE ASSEMBLY, Co-PilotPLATE ASSEMBLY, Co-Pilot
-
423-421402 BEARINGBEARING
-
523-42080T01 BEARING, Thrust - UpperBEARING, Thrust - Upper
-
623-42139 BUSHINGBUSHING
-
726-42077 SEALSEAL
-
812-42373 THRUST WASHERTHRUST WASHER
-
924-421301 SPRINGSPRING
-
1042082T04 BRACKETBRACKET
-
1117-420811 PINPIN
-
128M0075731 HOOK, Reverse LockHOOK, Reverse Lock
-
1317-830741A1 PIN, Pivot
DESIGN IPIN, Pivot
DESIGN I -
1491963 WASHER, (.390 x .600 x .032)
DESIGN IWASHER, (.390 x .600 x .032)
DESIGN I -
1517-830741A1 PIN ASSEMBLY, Pivot
DESIGN IIPIN ASSEMBLY, Pivot
DESIGN II -
16NSS NOT SOLD SEPARATE, Retaining Ring
DESIGN IINOT SOLD SEPARATE, Retaining Ring
DESIGN II -
1791963 WASHER, (.390 x .600 x .032)
DESIGN IIWASHER, (.390 x .600 x .032)
DESIGN II -
1824-42128 SPRINGSPRING
-
19420852 CARRYING HANDLE
(BLACK)CARRYING HANDLE
(BLACK) -
19420852 CARRYING HANDLE
(GRAY)CARRYING HANDLE
(GRAY) -
2024-42127 SPRINGSPRING
-
2153-13194 RING, RetainingRING, Retaining
-
22821961 RODROD
-
238165621 DISCDISC
-
24821958A1 PLATE KITPLATE KIT
-
2510-40011126 SCREW, (M6 x 13) Stainless SteelSCREW, (M6 x 13) Stainless Steel
-
26821957 BRAKE PLATEBRAKE PLATE
-
2712-29330 WASHERWASHER
-
28821959 HANDLEHANDLE
-
2911-8M0042636 NUT, (.375-24)NUT, (.375-24)
-
-37-8237011 DECAL, Co-PilotDECAL, Co-Pilot
