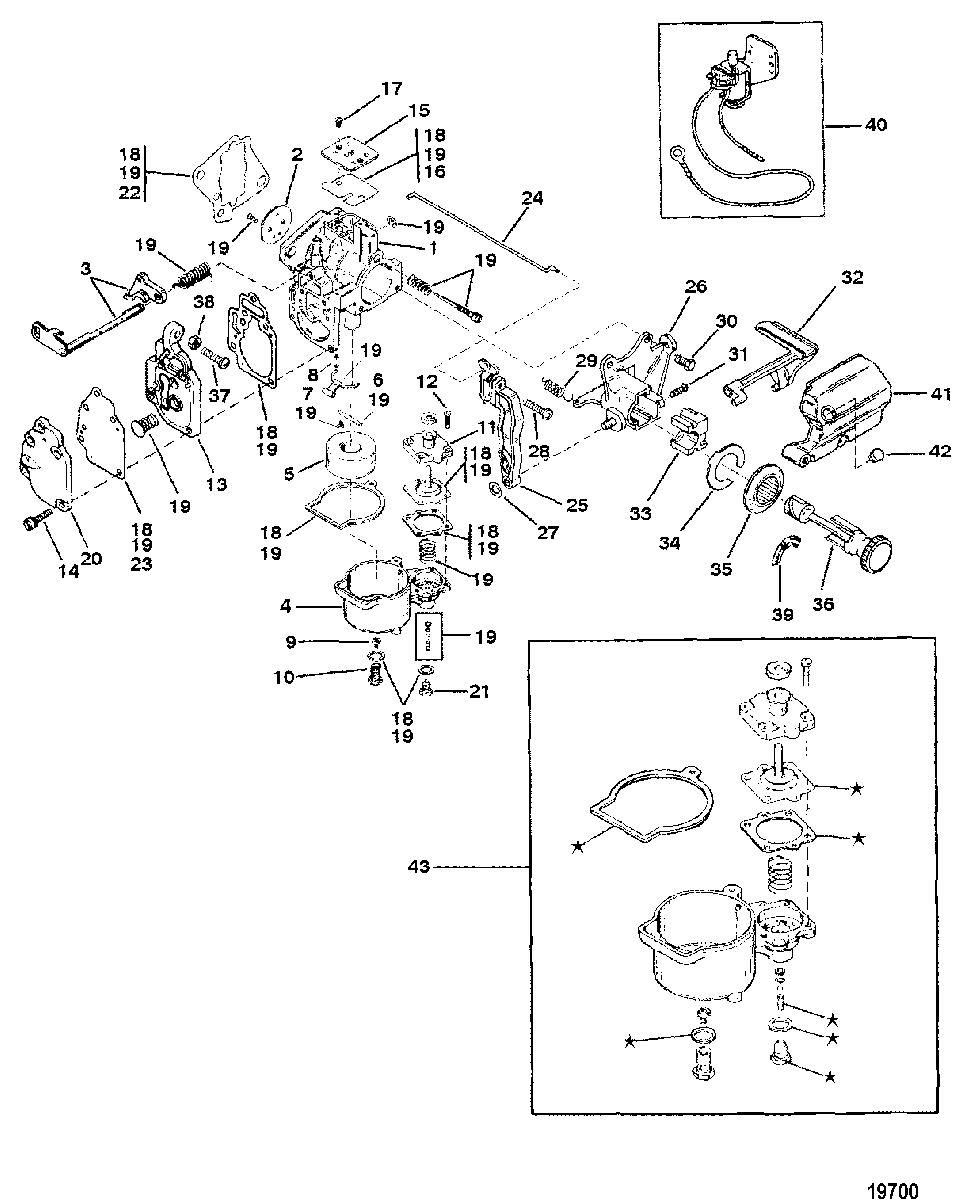

Carb(9.9/15)(USA-S/N-0G112450/BEL-S/N-9831800 & Up) для Mercury - 15 9792200 THRU 0P016999
-
№АртикулНазвание
-
-1392-8846T28 CARBURETOR
(9.9) (WMC-47)CARBURETOR
(9.9) (WMC-47) -
-1392-8846T28 CARBURETOR
(9.9) (WMC-47A)CARBURETOR
(9.9) (WMC-47A) -
-1392-9726T18 CARBURETOR
(15) (WMC-49A)CARBURETOR
(15) (WMC-49A) -
21395-94731 VALVE, Throttle
(9.9) (WMC-47/47A)VALVE, Throttle
(9.9) (WMC-47/47A) -
21395-823716 VALVE, Throttle
(15) (WMC-49/49A)VALVE, Throttle
(15) (WMC-49/49A) -
3813022 SHAFT, Throttle (INCL. SCREW/SPRING)
(9.9) (WMC-47/47A)SHAFT, Throttle (INCL. SCREW/SPRING)
(9.9) (WMC-47/47A) -
319267 SHAFT, Throttle (INCL. SCREW/SPRING)
(15) (WMC-49/49A)SHAFT, Throttle (INCL. SCREW/SPRING)
(15) (WMC-49/49A) -
41395-9164 BOWL, FuelBOWL, Fuel
-
51395-91691 FLOATFLOAT
-
6F10064 SHAFTSHAFT
-
71395-5902 SCREW, (#6-32 x .187)SCREW, (#6-32 x .187)
-
898551 VALVE, Inlet NeedleVALVE, Inlet Needle
-
91395-6246 JET, (.048)
(9.9)JET, (.048)
(9.9) -
91395-6207 JET, (.072)
(15)JET, (.072)
(15) -
101395-9171 PLUGPLUG
-
111395-823648 COVER, DiaphragmCOVER, Diaphragm
-
121395-9697 SCREWSCREW
-
131395-9702 BODYBODY
-
141395-9643 SCREWSCREW
-
151395-9699 PLATEPLATE
-
1627-44426 GASKETGASKET
-
171395-9696 SCREWSCREW
-
181395-97611 GASKET/DIAPHRAGM KITGASKET/DIAPHRAGM KIT
-
191395-8237072 REPAIR KITREPAIR KIT
-
201395-9637 COVERCOVER
-
211395-9762 PLUGPLUG
-
2227-192061 GASKET, Carburetor (USE WHERE APPLICABLE)GASKET, Carburetor (USE WHERE APPLICABLE)
-
231395-9635 DIAPHRAGM/GASKETDIAPHRAGM/GASKET
-
24445541 IDLE WIREIDLE WIRE
-
25128053 LEVER, Fast IdleLEVER, Fast Idle
-
2612803 BRACKET, PrimerBRACKET, Primer
-
2711-821979 NUTNUT
-
2810-12110 SCREW, (#6-32 x .750)SCREW, (#6-32 x .750)
-
2924-11277 SPRING, TensionSPRING, Tension
-
3010-400018 SCREW, (M5 x 12)SCREW, (M5 x 12)
-
3110-79965 SCREW, (#8-32 x .500) Stainless SteelSCREW, (#8-32 x .500) Stainless Steel
-
32112731 LEVER, PrimerLEVER, Primer
-
3311280 CAM BLOCKCAM BLOCK
-
3453-11278 CLIP, RetainingCLIP, Retaining
-
3512804A1 BEZEL ASSEMBLY, ChokeBEZEL ASSEMBLY, Choke
-
36128022 PRIMER KNOBPRIMER KNOB
-
3710-40056110 SCREW, (M5 x 30)SCREW, (M5 x 30)
-
3811-400211 NUT, (M5) Stainless SteelNUT, (M5) Stainless Steel
-
3937-129701 DECAL (SLOW/FAST)DECAL (SLOW/FAST)
-
401395-823433 CHOKE, ElectricCHOKE, Electric
-
41174421 COVER, CarburetorCOVER, Carburetor
-
4219-47579 PLUGPLUG
-
431395-9844A1 SERVICE KIT, Primer/Injector (See Illustration for Contents-Indicated by a Star)SERVICE KIT, Primer/Injector (See Illustration for Contents-Indicated by a Star)
-
-27-42364A92 GASKET SET, EngineGASKET SET, Engine
-
-12750A1 RESTRICTOR PLATERESTRICTOR PLATE
