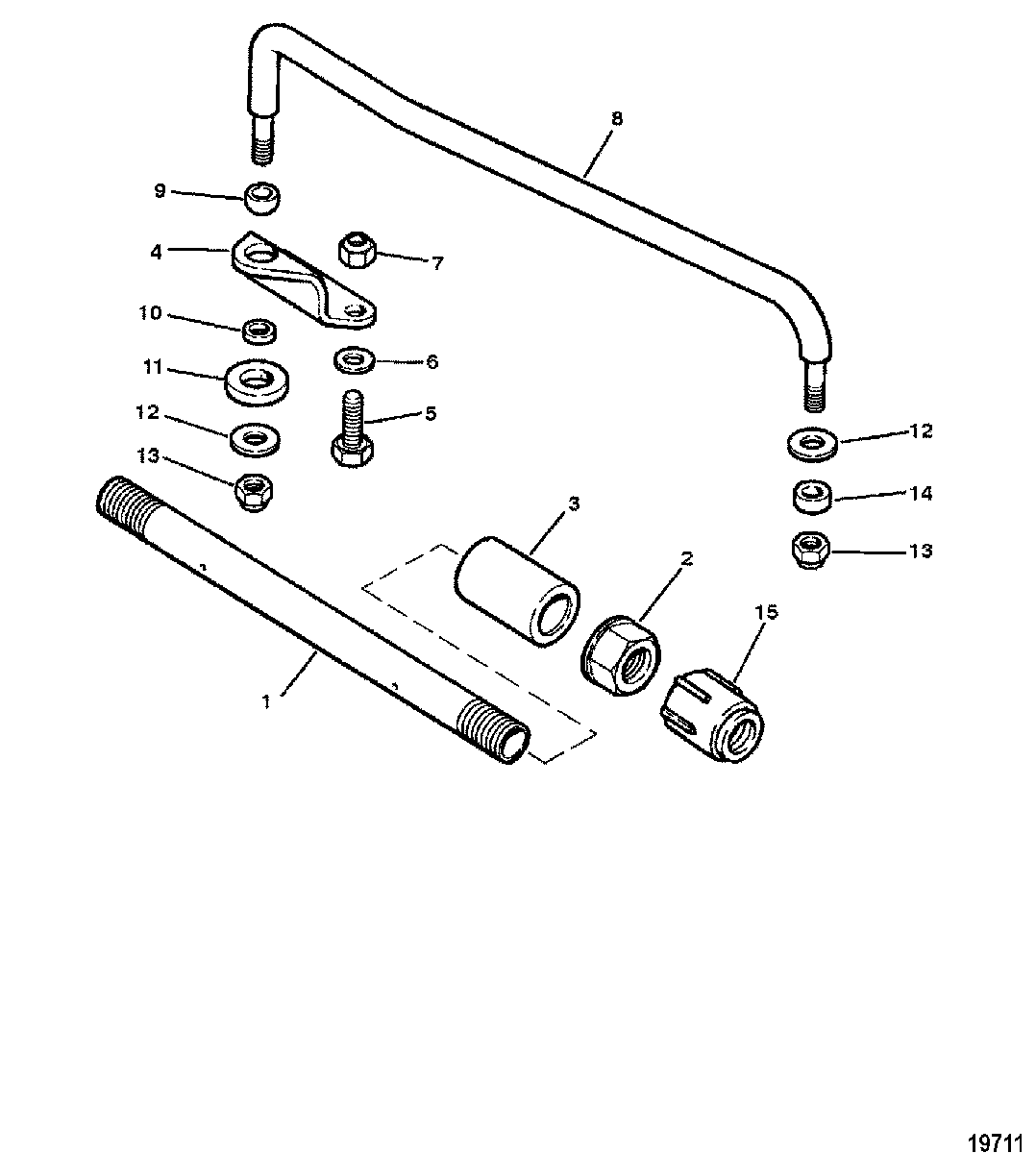

Link Rod and Components для Mercury - 15 9792200 THRU 0P016999
-
№АртикулНазвание
-
18M0041936 TILT TUBETILT TUBE
-
211-93164 NUT, (.875)NUT, (.875)
-
323-113841 SPACERSPACER
-
411607 BRACKETBRACKET
-
510-4000354 SCREW, (M8 x 30)SCREW, (M8 x 30)
-
612-56720 WASHER, (.330 x .750 x .060) Stainless SteelWASHER, (.330 x .750 x .060) Stainless Steel
-
711-401388 NUT, (M8)NUT, (M8)
-
811606A1 TIE ROD (STARBOARD)TIE ROD (STARBOARD)
-
811606A2 TIE ROD (PORT)TIE ROD (PORT)
-
929698 BALL JOINTBALL JOINT
-
1012-8M0109680 WASHER, (.390 x .546 x .12)WASHER, (.390 x .546 x .12)
-
1112-30521 WASHER, (.97 x .56 x .19)WASHER, (.97 x .56 x .19)
-
1212-37828 WASHER, (.390 x .625 x .062) Stainless SteelWASHER, (.390 x .625 x .062) Stainless Steel
-
1311-8M0042636 NUT, (.375-24)NUT, (.375-24)
-
1423-66751 SPACER, (.250 x .390 x .630) Stainless SteelSPACER, (.250 x .390 x .630) Stainless Steel
-
1519624A1 SEAL KITSEAL KIT
