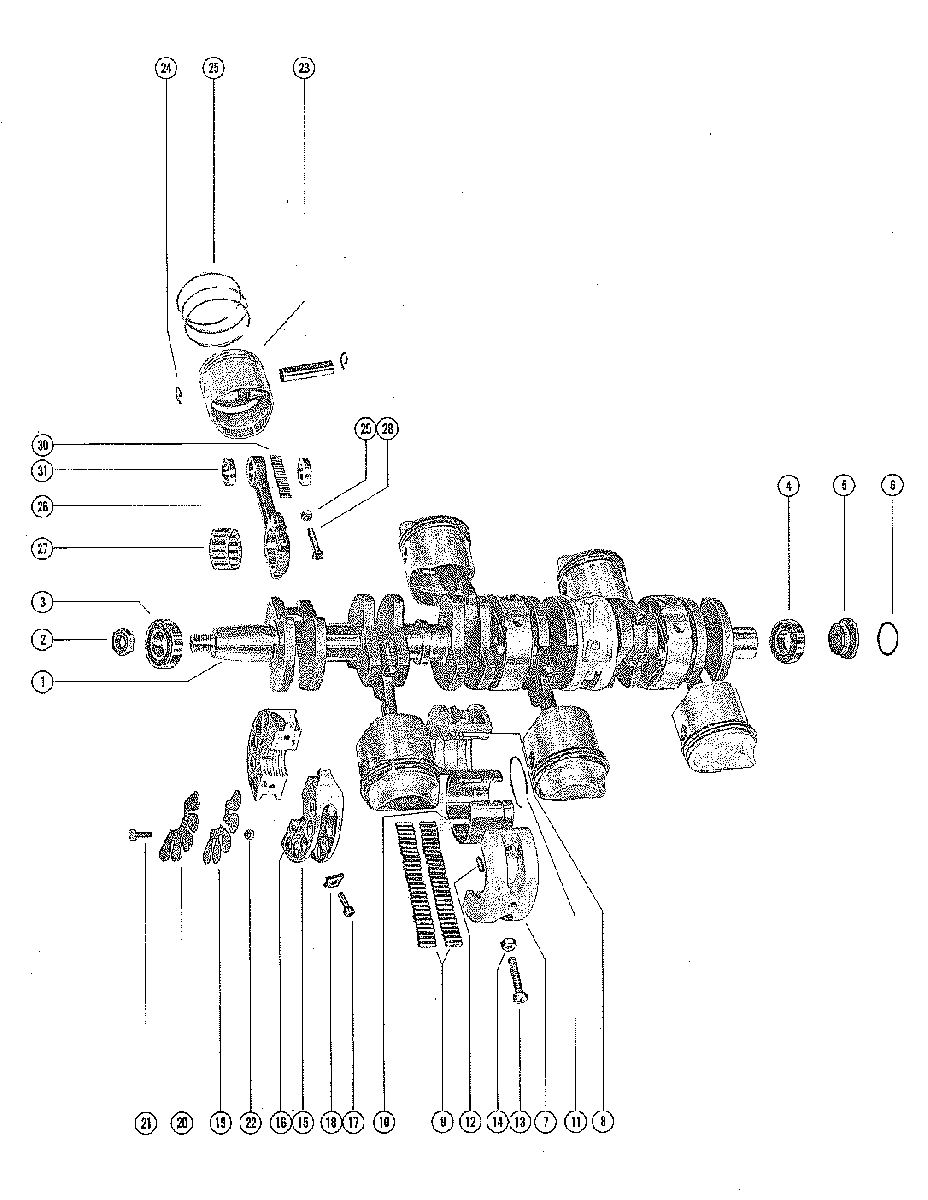

CRANKSHAFT, PISTONS AND CONNECTING RODS для Mercury - 1500 3502806 THRU 4865677
-
№АртикулНазвание
-
1436-9072A1 CRANKSHAFT ASSEMBLYCRANKSHAFT ASSEMBLY
-
211-52901 NUT, FLYWHEEL TO CRANKSHAFTNUT, FLYWHEEL TO CRANKSHAFT
-
330-62567T BEARING, BALL - UPPERBEARING, BALL - UPPER
-
430-63742T BEARING, BALL - LOWERBEARING, BALL - LOWER
-
554196A6 CARRIER ASSEMBLY, "O" RINGCARRIER ASSEMBLY, "O" RING
-
665800 PACKING, CARRIERPACKING, CARRIER
-
7535-3190A2 CENTER MAIN BEARING ASSEMBLY
UNITED STATES 3751849 AND BELOW
AUSTRALIA 8013389 AND BELOW
CANADA 7024372 AND BELOWCENTER MAIN BEARING ASSEMBLY
UNITED STATES 3751849 AND BELOW
AUSTRALIA 8013389 AND BELOW
CANADA 7024372 AND BELOW -
7535-5397A4 CENTER MAIN BEARING ASSEMBLY
UNITED STATES 3751850 AND UP
AUSTRALIA 8013390 AND UP
CANADA 7024373 AND UPCENTER MAIN BEARING ASSEMBLY
UNITED STATES 3751850 AND UP
AUSTRALIA 8013390 AND UP
CANADA 7024373 AND UP -
817-20032 DOWEL PIN, CENTER MAIN BEARINGDOWEL PIN, CENTER MAIN BEARING
-
929-714221 BEARNG, NEEDLE - OUTER RACEBEARNG, NEEDLE - OUTER RACE
-
1026113T RACE, OUTER (PAIR)RACE, OUTER (PAIR)
-
1153-26933 RING, SNAP - OUTER RACERING, SNAP - OUTER RACE
-
1217-47246 DOWEL PIN, STEPPEDDOWEL PIN, STEPPED
-
1310-22968 SCREW, CENTER MAIN BEARING CLAMPING (1 1/4")SCREW, CENTER MAIN BEARING CLAMPING (1 1/4")
-
1411-20184 NUT, BEARING CLAMPING SCREWNUT, BEARING CLAMPING SCREW
-
15540-5266A4 MAIN BEARING ASSEMBLY, VALVE TYPE
UNITED STATES 3751849 AND BELOW
AUSTRALIA 8013389 AND BELOW
CANADA 7024372 AND BELOWMAIN BEARING ASSEMBLY, VALVE TYPE
UNITED STATES 3751849 AND BELOW
AUSTRALIA 8013389 AND BELOW
CANADA 7024372 AND BELOW -
15540-5266A4 MAIN BEARING ASSEMBLY, VALVE TYPE
UNITED STATES 3751850 AND UP
AUSTRALIA 8013390 AND UP
CANADA 7024373 AND UPMAIN BEARING ASSEMBLY, VALVE TYPE
UNITED STATES 3751850 AND UP
AUSTRALIA 8013390 AND UP
CANADA 7024373 AND UP -
1617-20032 DOWEL PIN, MAIN BEARINGDOWEL PIN, MAIN BEARING
-
1710-45775 SCREW, MAIN BEARING CLAMPING (9/16")SCREW, MAIN BEARING CLAMPING (9/16")
-
1811-45774 NUT, MAIN BEARING CLAMPING SCREWNUT, MAIN BEARING CLAMPING SCREW
-
1934-65312A1 REED SET, MATCHED - MAIN BEARINGREED SET, MATCHED - MAIN BEARING
-
2034-65319 REED STOP, MAIN BEARING REED VALVESREED STOP, MAIN BEARING REED VALVES
-
2110-62204 SCREW, REED STOP MOUNTING (1 3/8")SCREW, REED STOP MOUNTING (1 3/8")
-
2211-53153 NUT, REED STOP SCREWNUT, REED STOP SCREW
-
23774-9137A9 PISTON AND PISTON PIN ASSEMBLYPISTON AND PISTON PIN ASSEMBLY
-
2453-857196 LOCK RING, PISTON PINLOCK RING, PISTON PIN
-
2539-64715A12 RING, PISTON (1/16" THICK)
UNITED STATES 3751849 AND BELOW
AUSTRALIA 8013389 AND BELOW
CANADA 7024372 AND BELOWRING, PISTON (1/16" THICK)
UNITED STATES 3751849 AND BELOW
AUSTRALIA 8013389 AND BELOW
CANADA 7024372 AND BELOW -
2539-78816A12 RING, PISTON (1/16" THICK)
UNITED STATES 3751850 AND UP
AUSTRALIA 8013390 AND UP
CANADA 7024373 AND UPRING, PISTON (1/16" THICK)
UNITED STATES 3751850 AND UP
AUSTRALIA 8013390 AND UP
CANADA 7024373 AND UP -
26624-8101A3 CONNECTING ROD AND CAP ASSEMBLYCONNECTING ROD AND CAP ASSEMBLY
-
2731-62596A1 BEARING ASSEMBLY, CRANKPINBEARING ASSEMBLY, CRANKPIN
-
2810-54803 SCREW, CONNECTING RODSCREW, CONNECTING ROD
-
2911-49091 NUT, CONNECTING ROD SCREWNUT, CONNECTING ROD SCREW
-
3029-47270 BEARING, NEEDLE - PISTON PINBEARING, NEEDLE - PISTON PIN
-
3112-8M0032839 WASHER, NEEDLE LOCATINGWASHER, NEEDLE LOCATING
-
--774-9137A13 PISTON AND PISTON PIN ASSSEMBLY
.015 OVERSIZE PISTONS AND RINGSPISTON AND PISTON PIN ASSSEMBLY
.015 OVERSIZE PISTONS AND RINGS -
--39-49839A12 RING, PISTON (1/16" THICK)
.015 OVERSIZE PISTONS AND RINGS UNITED STATES 3751849 AND BELOW
AUSTRALIA 8013389 AND BELOW
CANADA 7024372 AND BELOWRING, PISTON (1/16" THICK)
.015 OVERSIZE PISTONS AND RINGS UNITED STATES 3751849 AND BELOW
AUSTRALIA 8013389 AND BELOW
CANADA 7024372 AND BELOW -
--39-78811A12 RING, PISTON (1/16" THICK)
.015 OVERSIZE PISTONS AND RINGS UNITED STATES 3751850 AND UP
AUSTRALIA 8013390 AND UP
CANADA 7024373 AND UPRING, PISTON (1/16" THICK)
.015 OVERSIZE PISTONS AND RINGS UNITED STATES 3751850 AND UP
AUSTRALIA 8013390 AND UP
CANADA 7024373 AND UP
