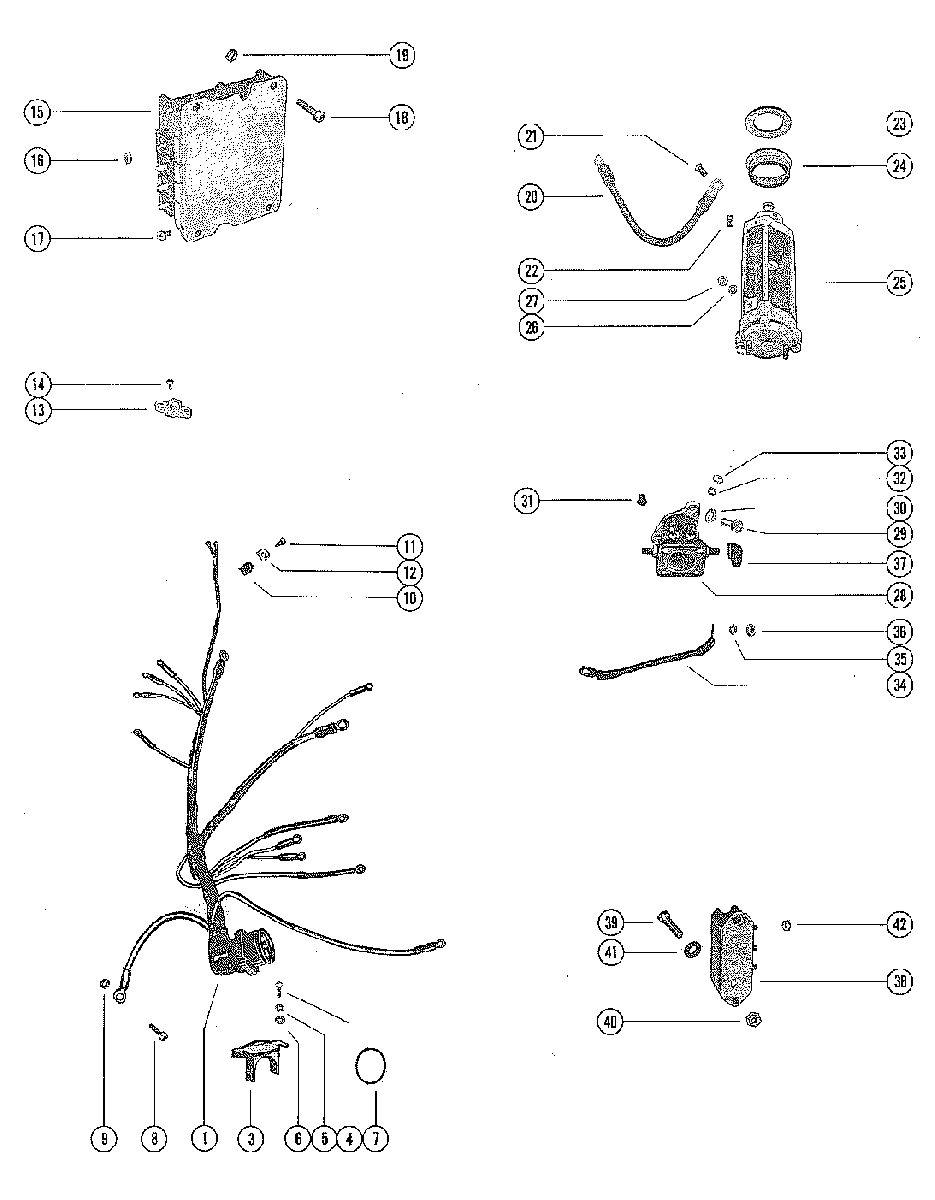

STARTER MOTOR, STARTER SOLENOID, RECTIFIER AND WIRING HARNES для Mercury - 1500 3502806 THRU 4865677
-
№АртикулНазвание
-
184-69236A1 WIRING HARNESS, INTERNAL
UNITED STATES 4121434 AND BELOW
AUSTRALIA 8028039 AND BELOW
CANADA 7048782 AND BELOWWIRING HARNESS, INTERNAL
UNITED STATES 4121434 AND BELOW
AUSTRALIA 8028039 AND BELOW
CANADA 7048782 AND BELOW -
184-69236A1 WIRING HARNESS, INTERNAL
UNITED STATES 4121435 AND UP
AUSTRALIA 8028040 AND UP
CANADA 7048783 AND UPWIRING HARNESS, INTERNAL
UNITED STATES 4121435 AND UP
AUSTRALIA 8028040 AND UP
CANADA 7048783 AND UP -
354-76368 CLAMP, WIRING HARNESS TO BOTTOM COWLCLAMP, WIRING HARNESS TO BOTTOM COWL
-
410-690201 SCRW, WIRING HARNESS CLAMP TO BOTTOM COWL (7/8")SCRW, WIRING HARNESS CLAMP TO BOTTOM COWL (7/8")
-
513-26996 LOCKWAHSER, WIRING HARNESS CLAMP SCREWLOCKWAHSER, WIRING HARNESS CLAMP SCREW
-
612-30164 WASHER, WIRING HARNESS CLAMP SCREWWASHER, WIRING HARNESS CLAMP SCREW
-
724-28975 SPRING, GARTER - INTERNAL WIRING HARNESSSPRING, GARTER - INTERNAL WIRING HARNESS
-
810-98256 SCREW, GROUND WIRE TO BOTTOM COWL (1/2")SCREW, GROUND WIRE TO BOTTOM COWL (1/2")
-
913-26992 LOCKWASHER, GROUND WIRE SCREWLOCKWASHER, GROUND WIRE SCREW
-
1054-22875 CLIP, WIRING HARNESS TO FRONT BRACKET (5/8")CLIP, WIRING HARNESS TO FRONT BRACKET (5/8")
-
1110-62568 SCREW, WIRING HARNESS TO FRONT BRACKET (3/8")SCREW, WIRING HARNESS TO FRONT BRACKET (3/8")
-
128M0084613 "D" WASHER, WIRING HARNESS CLIP SCREW"D" WASHER, WIRING HARNESS CLIP SCREW
-
1345559 TERMINAL BLOCK, STATOR LEADSTERMINAL BLOCK, STATOR LEADS
-
1410-62568 SCREW, STATOR LEADS TO TERMINAL BLOCK (3/8")SCREW, STATOR LEADS TO TERMINAL BLOCK (3/8")
-
15332-2986A25 SWITCH BOX ASSEMBLY(MERC1500XS)SWITCH BOX ASSEMBLY(MERC1500XS)
-
15332-2986A21 SWITCH BOX ASSEMBLY(MERC 1500 LONG)SWITCH BOX ASSEMBLY(MERC 1500 LONG)
-
1611-45076 NUT, SWITCH BOX TERMINALNUT, SWITCH BOX TERMINAL
-
1710-29794 SCRWE, SWITCH BOX (3/8")SCRWE, SWITCH BOX (3/8")
-
1810-64279 SCREW, SWITCH BOX TO FRONT MOUNTING BRACKET (1")SCREW, SWITCH BOX TO FRONT MOUNTING BRACKET (1")
-
1911-20184 NUT, SWITCH BOX SCREWNUT, SWITCH BOX SCREW
-
2084-93389A12 CABLE, WIRE - STARTER MOTOR TO FRONT SUPPORT BRACKETCABLE, WIRE - STARTER MOTOR TO FRONT SUPPORT BRACKET
-
2110-69035 SCRW, WIRE CABLE TO STARTER MOTOR (5/8")SCRW, WIRE CABLE TO STARTER MOTOR (5/8")
-
228M0043376 STOP, RUBBER - STARTER MOTORSTOP, RUBBER - STARTER MOTOR
-
2323-56774 SPACER, COLLAR TO TOP MOUNTING CAPSPACER, COLLAR TO TOP MOUNTING CAP
-
2423-8M0034918 COLLAR, RUBBER - STARTER MOTOR MOUNTCOLLAR, RUBBER - STARTER MOTOR MOUNT
-
2550-898265010 STARTER MOTOR ASSEMBLY
UNITED STATES 3752619 AND BELOW
AUSTRALIA 8013419 AND BELOW
CANADA 7024372 AND BELOWSTARTER MOTOR ASSEMBLY
UNITED STATES 3752619 AND BELOW
AUSTRALIA 8013419 AND BELOW
CANADA 7024372 AND BELOW -
2550-898265010 STARTER MOTOR ASSEMBLY(PRESTOLITE)STARTER MOTOR ASSEMBLY(PRESTOLITE)
-
2550-898265010 ATARTER MOTOR ASSEMBLY(BOSCH)ATARTER MOTOR ASSEMBLY(BOSCH)
-
2613-26992 LOCKWASHER, STARTER MOTOR TERMINALLOCKWASHER, STARTER MOTOR TERMINAL
-
2711-20890 NUT, STARTER MOTOR TERMINALNUT, STARTER MOTOR TERMINAL
-
2825661T1 SOLENOID, STARTER
UNITED STATES 4121434 AND BELOW
AUSTRALIA 8028039 AND BELOW
CANADA 7048782 AND BELOWSOLENOID, STARTER
UNITED STATES 4121434 AND BELOW
AUSTRALIA 8028039 AND BELOW
CANADA 7048782 AND BELOW -
2910-69028 SCREW, SOLENOID TO COIL BRACKET (3/4")
UNITED STATES 4121434 AND BELOW
AUSTRALIA 8028039 AND BELOW
CANADA 7048782 AND BELOWSCREW, SOLENOID TO COIL BRACKET (3/4")
UNITED STATES 4121434 AND BELOW
AUSTRALIA 8028039 AND BELOW
CANADA 7048782 AND BELOW -
2889-853654A1 SOLENOID, STARTER
UNITED STATES 4121435 AND UP
AUSTRALIA 8028040 AND UP
CANADA 7048783 AND UPSOLENOID, STARTER
UNITED STATES 4121435 AND UP
AUSTRALIA 8028040 AND UP
CANADA 7048783 AND UP -
2910-38601 SCREW, SOLENOID TO COIL BRACKET (3/4")
UNITED STATES 4121435 AND UP
AUSTRALIA 8028040 AND UP
CANADA 7048783 AND UPSCREW, SOLENOID TO COIL BRACKET (3/4")
UNITED STATES 4121435 AND UP
AUSTRALIA 8028040 AND UP
CANADA 7048783 AND UP -
3013-26992 LOCKWASHER, STARTER SOLENOID FASTENING SCREWLOCKWASHER, STARTER SOLENOID FASTENING SCREW
-
31269011 BUMPER, RUBBER - STARTER SOLENOIDBUMPER, RUBBER - STARTER SOLENOID
-
3213-26996 LOCKWASHER, SOLENOID TERMINAL (#10)LOCKWASHER, SOLENOID TERMINAL (#10)
-
3311-68219 NUT, SOLENOID TERMINAL (#10)NUT, SOLENOID TERMINAL (#10)
-
3448396 CABLE, WIRE - STARTER MOTOR TO SOLENOID
UNITED STATES 4121434 AND BELOW
AUSTRALIA 8028039 AND BELOW
CANADA 7048782 AND BELOWCABLE, WIRE - STARTER MOTOR TO SOLENOID
UNITED STATES 4121434 AND BELOW
AUSTRALIA 8028039 AND BELOW
CANADA 7048782 AND BELOW -
3484-93388A8 CABLE, WERIE - STARTER MOTOR TO SOLENOID
UNITED STATES 4121435 AND UP
AUSTRALIA 8028040 AND UP
CANADA 7048783 AND UPCABLE, WERIE - STARTER MOTOR TO SOLENOID
UNITED STATES 4121435 AND UP
AUSTRALIA 8028040 AND UP
CANADA 7048783 AND UP -
3513-26993 LOCKWASHER, SOLENOID TERMINAL (5/16")LOCKWASHER, SOLENOID TERMINAL (5/16")
-
3611-68292 NUT, WOLENOID TERMINAL (5/16")NUT, WOLENOID TERMINAL (5/16")
-
3746265 BOOT, SOLENOID TERMINALBOOT, SOLENOID TERMINAL
-
3878614A1 RECTIFIER ASSEMBLY
UNITED STATES 4121434 AND BELOW
AUSTRALIA 8028039 AND BELOW
CANADA 7048782 AND BELOWRECTIFIER ASSEMBLY
UNITED STATES 4121434 AND BELOW
AUSTRALIA 8028039 AND BELOW
CANADA 7048782 AND BELOW -
3910-64278 SCREW, RECTIFIER TO MOUNTING BRACKET (1")
UNITED STATES 4121434 AND BELOW
AUSTRALIA 8028039 AND BELOW
CANADA 7048782 AND BELOWSCREW, RECTIFIER TO MOUNTING BRACKET (1")
UNITED STATES 4121434 AND BELOW
AUSTRALIA 8028039 AND BELOW
CANADA 7048782 AND BELOW -
3910-64278 SCRW, RECTIFIER TO MOUNTING BRACKET (1")
UNITED STATES 4121434 AND BELOW
AUSTRALIA 8028039 AND BELOW
CANADA 7048782 AND BELOWSCRW, RECTIFIER TO MOUNTING BRACKET (1")
UNITED STATES 4121434 AND BELOW
AUSTRALIA 8028039 AND BELOW
CANADA 7048782 AND BELOW -
4011-20184 NUT, RECTIFIER MOUNTING SCREW
UNITED STATES 4121434 AND BELOW
AUSTRALIA 8028039 AND BELOW
CANADA 7048782 AND BELOWNUT, RECTIFIER MOUNTING SCREW
UNITED STATES 4121434 AND BELOW
AUSTRALIA 8028039 AND BELOW
CANADA 7048782 AND BELOW -
4211-45076 NUT, FASTENING - RECTIFIER STATOR LEADS
UNITED STATES 4121434 AND BELOW
AUSTRALIA 8028039 AND BELOW
CANADA 7048782 AND BELOWNUT, FASTENING - RECTIFIER STATOR LEADS
UNITED STATES 4121434 AND BELOW
AUSTRALIA 8028039 AND BELOW
CANADA 7048782 AND BELOW -
388M0058226 RECTIFIER ASSEMBLY
UNITED STATES 4121435 AND UP
AUSTRALIA 8028040 AND UP
CANADA 7048783 AND UPRECTIFIER ASSEMBLY
UNITED STATES 4121435 AND UP
AUSTRALIA 8028040 AND UP
CANADA 7048783 AND UP -
3910-37656 SCREW, RECTIFIER TO FRONT BRACKET (5/8")
UNITED STATES 4121435 AND UP
AUSTRALIA 8028040 AND UP
CANADA 7048783 AND UPSCREW, RECTIFIER TO FRONT BRACKET (5/8")
UNITED STATES 4121435 AND UP
AUSTRALIA 8028040 AND UP
CANADA 7048783 AND UP -
4112-30164 WASHER, RECTIFIER SCREW
UNITED STATES 4121435 AND UP
AUSTRALIA 8028040 AND UP
CANADA 7048783 AND UPWASHER, RECTIFIER SCREW
UNITED STATES 4121435 AND UP
AUSTRALIA 8028040 AND UP
CANADA 7048783 AND UP -
4211-45076 NUT, STATOR LEADS TO RECTIFIER
UNITED STATES 4121435 AND UP
AUSTRALIA 8028040 AND UP
CANADA 7048783 AND UPNUT, STATOR LEADS TO RECTIFIER
UNITED STATES 4121435 AND UP
AUSTRALIA 8028040 AND UP
CANADA 7048783 AND UP
