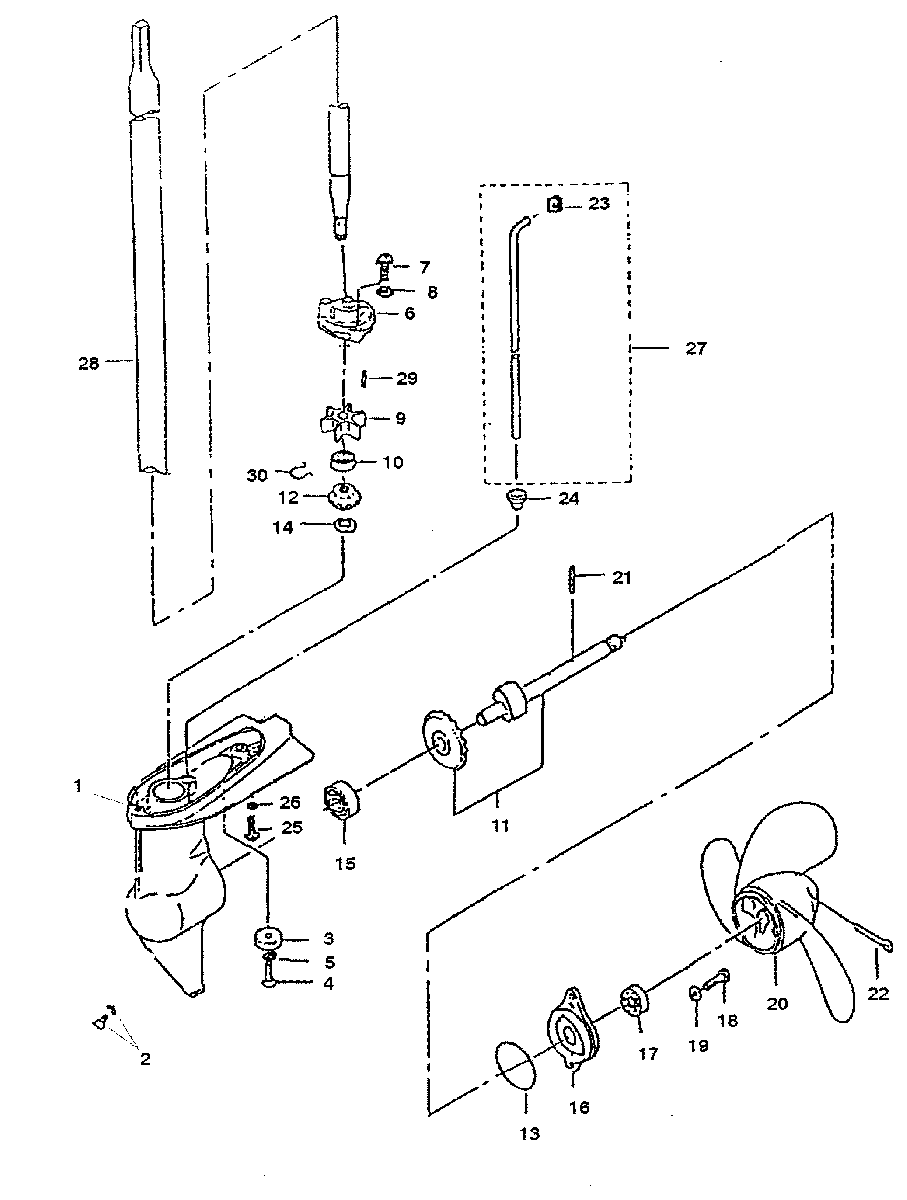

GEAR HOUSING для Mercury - 2 H.P. (EXPORT) 0G413201 AND UP
-
№АртикулНазвание
-
11668-832471 GEAR HOUSINGGEAR HOUSING
-
222-832472 PLUG ASSEMBLYPLUG ASSEMBLY
-
397-832473 ZINC ANODEZINC ANODE
-
410-832362 SCREW (M6 X 10)SCREW (M6 X 10)
-
513-832382 LOCKWASHERLOCKWASHER
-
646-832474 WATER PUMP BODY ASSEMBLYWATER PUMP BODY ASSEMBLY
-
710-832361 SCREW (M5 X 16)SCREW (M5 X 16)
-
813-832380 LOCKWASHERLOCKWASHER
-
947-832475 IMPELLERIMPELLER
-
1026-832386 OIL SEALOIL SEAL
-
1144-832476 PROP SHAFTPROP SHAFT
-
1243-832477 PINION GEARPINION GEAR
-
1325-832389 O RINGO RING
-
1412-832478 WASHERWASHER
-
1530-832391 BEARINGBEARING
-
16832479 COVERCOVER
-
1726-832386 OIL SEALOIL SEAL
-
1810-832367 BOLT (1/4 X 3/4)BOLT (1/4 X 3/4)
-
1913-832382 LOCKWASHERLOCKWASHER
-
2048-832480 PROPELLERPROPELLER
-
2118-832481 SHEAR PINSHEAR PIN
-
2218-832482 COTTER PINCOTTER PIN
-
2325-832463 GROMMET (UPPER)GROMMET (UPPER)
-
2425-832464 GROMMET (LOWER)GROMMET (LOWER)
-
2510-832364 SCREW (1/4 X 1)SCREW (1/4 X 1)
-
2613-832382 LOCKWASHERLOCKWASHER
-
2732-832465 WATER TUBEWATER TUBE
-
2845-832467 DRIVE SHAFTDRIVE SHAFT
-
2928-832468 ROLL PINROLL PIN
-
3053-832469 SNAP RINGSNAP RING
