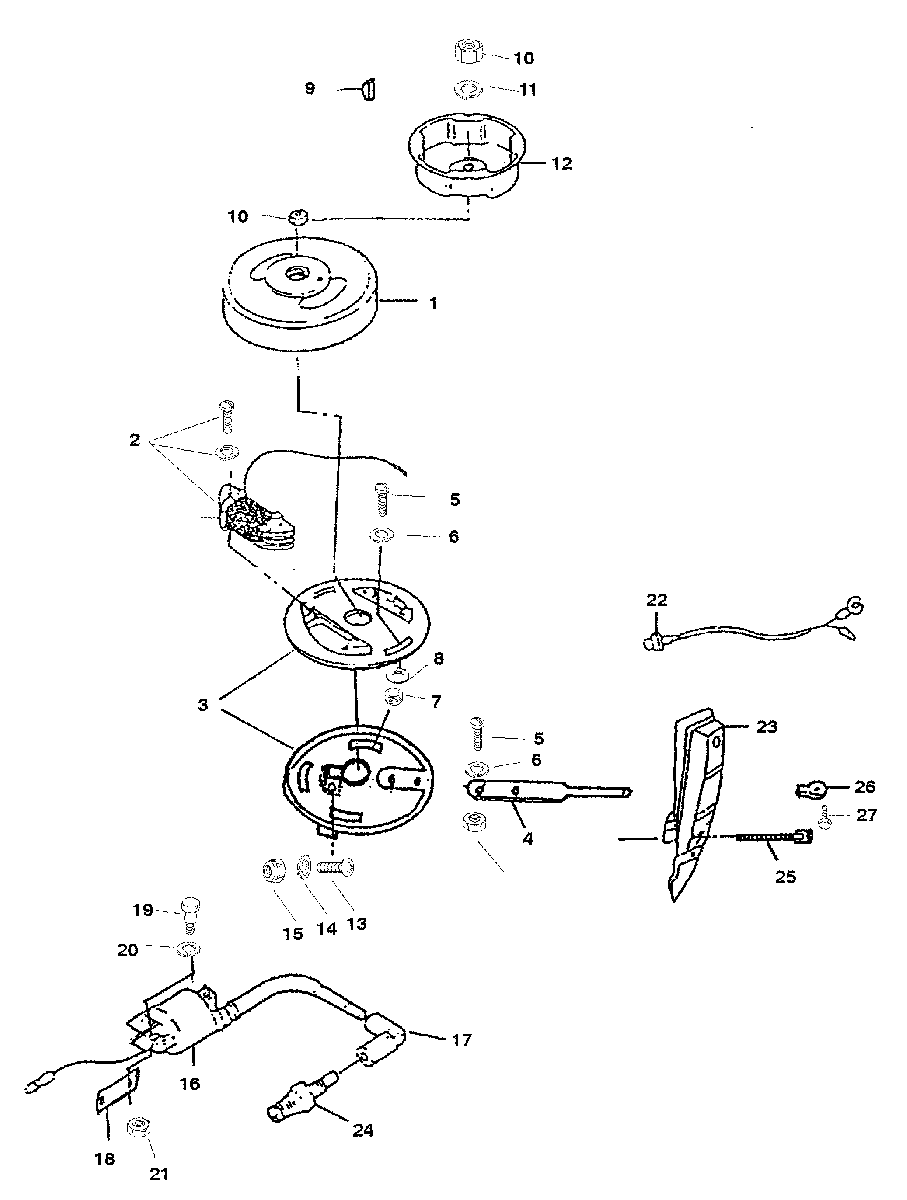

IGNITION для Mercury - 2 H.P. (EXPORT) 0G413201 AND UP
-
№АртикулНазвание
-
1262-832432 FLYWHEELFLYWHEEL
-
2832433 IGNITION COILIGNITION COIL
-
3832434 ACTUATOR PLATEACTUATOR PLATE
-
4832435 THROTTLE LEVERTHROTTLE LEVER
-
510-832360 SCREW (M5 X 16)SCREW (M5 X 16)
-
613-832379 LOCKWASHERLOCKWASHER
-
711-832372 NUT (M5)NUT (M5)
-
812-832377 WASHER (M6)WASHER (M6)
-
928-832436 WOODRUFF KEYWOODRUFF KEY
-
1011-832376 NUTNUT
-
1113-832385 LOCKWASHERLOCKWASHER
-
12832437 STARTER PULLEYSTARTER PULLEY
-
1310-832363 SCREW (M6 X 25)SCREW (M6 X 25)
-
1413-832381 LOCKWASHERLOCKWASHER
-
1511-832373 NUT (M6)NUT (M6)
-
16832438 COIL ASSEMBLYCOIL ASSEMBLY
-
1785-832439 BOOTBOOT
-
18832440 BRACKETBRACKET
-
1910-832360 SCREW (M5 X 16)SCREW (M5 X 16)
-
2013-832379 LOCKWASHERLOCKWASHER
-
2111-832372 NUT (M5)NUT (M5)
-
2287-832441 STOP SWITCHSTOP SWITCH
-
23832442 CONTROL PANELCONTROL PANEL
-
2433-8M0114739 SPARK PLUG (B-7HS)SPARK PLUG (B-7HS)
-
2510-832369 BOLT (1/4 X 3)BOLT (1/4 X 3)
-
2625-832503 KNOBKNOB
-
2710-832359 SCREW (3 X 6)SCREW (3 X 6)
