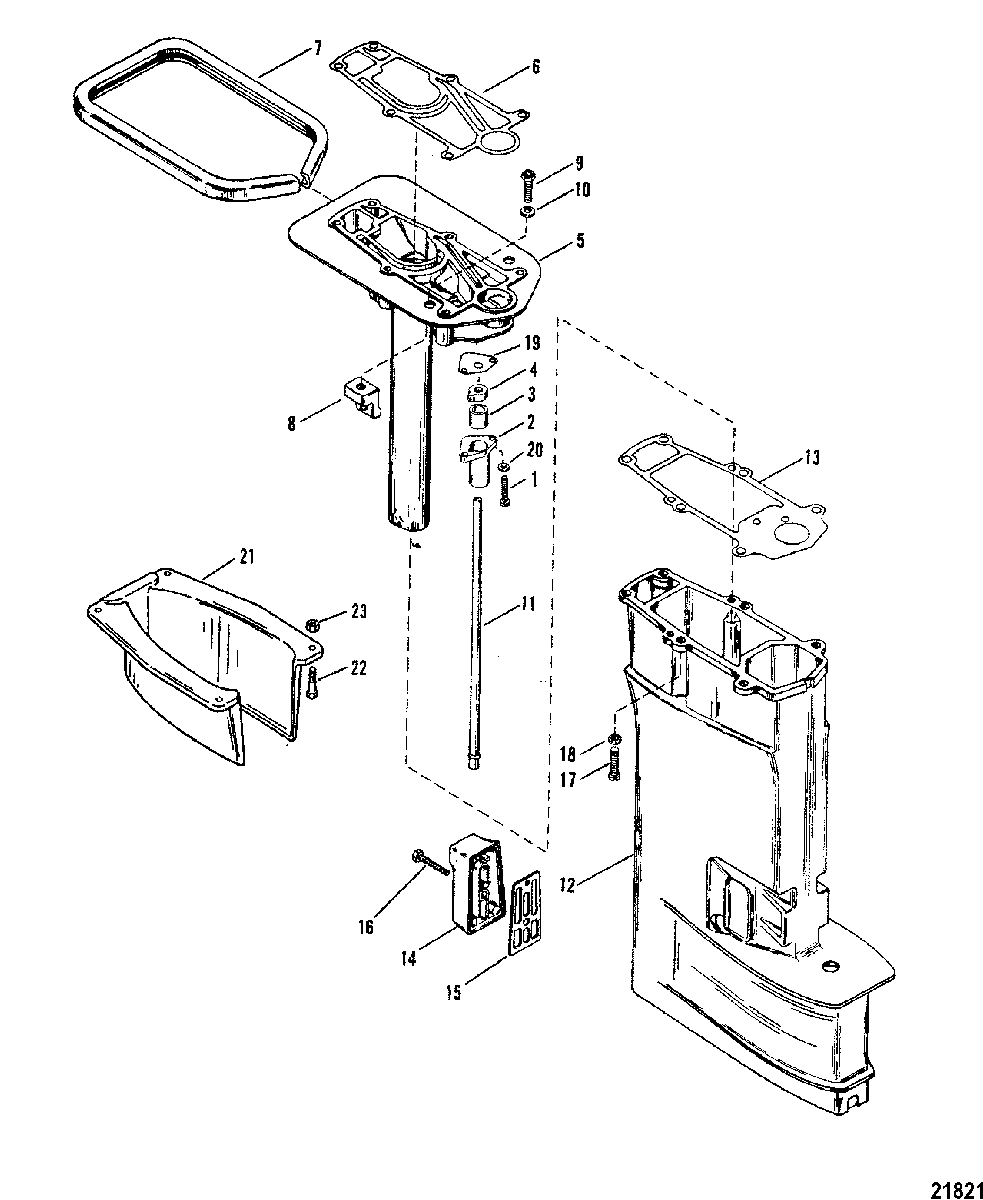

Driveshaft Housing Assembly для Mercury - 20 (2 CYL.) 0B238464 THRU 0G044026
-
№АртикулНазвание
-
110-400035 SCREW, (M5 x 16) (Use W/Reference #20)SCREW, (M5 x 16) (Use W/Reference #20)
-
110-40011107 SCREW, (M5 x 16) Stainless SteelSCREW, (M5 x 16) Stainless Steel
-
296248A1 HOUSING ASSEMBLY, WATER TUBEHOUSING ASSEMBLY, WATER TUBE
-
326-25329 SEAL, WATER TUBESEAL, WATER TUBE
-
423-889715 SPACER, WATER TUBESPACER, WATER TUBE
-
599702A7 ADAPTOR PLATE ASSEMBLYADAPTOR PLATE ASSEMBLY
-
627-41670006 GASKET, ADAPTOR PLATEGASKET, ADAPTOR PLATE
-
7158662 SEAL, ADAPTOR PLATESEAL, ADAPTOR PLATE
-
841211 BRACKET, UPPER MOUNTBRACKET, UPPER MOUNT
-
910-8M4503518 SCREW, (M6 x 20) Stainless Steel (Use Without Reference #10)SCREW, (M6 x 20) Stainless Steel (Use Without Reference #10)
-
910-40007128 SCREW, (M6 x 20) (Use With Reference #10)SCREW, (M6 x 20) (Use With Reference #10)
-
1012-29245 WASHER, (.281 x .500 x .060) Stainless Steel (USE WHERE APPLICABLE)WASHER, (.281 x .500 x .060) Stainless Steel (USE WHERE APPLICABLE)
-
1132-85116 TUBE, Water (SHORT SHAFT)TUBE, Water (SHORT SHAFT)
-
1132-86292 TUBE, Water (LONG SHAFT)TUBE, Water (LONG SHAFT)
-
121588-9097T5 HOUSING ASSEMBLY, Driveshaft (SHORT SHAFT) (BLACK)HOUSING ASSEMBLY, Driveshaft (SHORT SHAFT) (BLACK)
-
121588-9098T5 HOUSING ASSEMBLY, Driveshaft (LONG SHAFT) (BLACK)HOUSING ASSEMBLY, Driveshaft (LONG SHAFT) (BLACK)
-
121588-9097T6 HOUSING ASSEMBLY, Driveshaft (SHORT SHAFT) (GRAY)HOUSING ASSEMBLY, Driveshaft (SHORT SHAFT) (GRAY)
-
121588-9098T5 HOUSING ASSEMBLY, Driveshaft (LONG SHAFT) (GRAY)HOUSING ASSEMBLY, Driveshaft (LONG SHAFT) (GRAY)
-
121588-9097A4 HOUSING ASSEMBLY, Driveshaft (SHORT) (TRACKER)HOUSING ASSEMBLY, Driveshaft (SHORT) (TRACKER)
-
121588-9098T5 HOUSING ASSEMBLY, Driveshaft (LONG) (TRACKER)HOUSING ASSEMBLY, Driveshaft (LONG) (TRACKER)
-
1327-433374 GASKET, DRIVE SHAFT HOUSINGGASKET, DRIVE SHAFT HOUSING
-
1414534 COVER, IDLE RELIEFCOVER, IDLE RELIEF
-
1527-14621 GASKET, COVERGASKET, COVER
-
1610-14742 SCREW, (.250-20 x 1.25), COVERSCREW, (.250-20 x 1.25), COVER
-
1710-1993870 SCREW, DRIVE SHAFT HOUSING TO BLOCK (60 MM)SCREW, DRIVE SHAFT HOUSING TO BLOCK (60 MM)
-
1812-4002317 WASHER, DRIVE SHAFT HOUSING SCREWWASHER, DRIVE SHAFT HOUSING SCREW
-
1927-433374 GASKET (USE WHERE APPLICABLE)GASKET (USE WHERE APPLICABLE)
-
2012-30164 WASHER, (.192 x .375 x .0312) Stainless Steel, HOUSING SCREWWASHER, (.192 x .375 x .0312) Stainless Steel, HOUSING SCREW
-
2117258T TRIM COVER (BLACK)TRIM COVER (BLACK)
-
2117258T TRIM COVER (GRAY)TRIM COVER (GRAY)
-
2117258T TRIM COVER (TRACKER)TRIM COVER (TRACKER)
-
2210-8M4503518 SCREW, (M6 x 20) Stainless Steel, TRIM COVERSCREW, (M6 x 20) Stainless Steel, TRIM COVER
-
2311-401196 NUT, (M6), TRIM COVER SCREWNUT, (M6), TRIM COVER SCREW
-
-27-41499A88 GASKET SETGASKET SET
