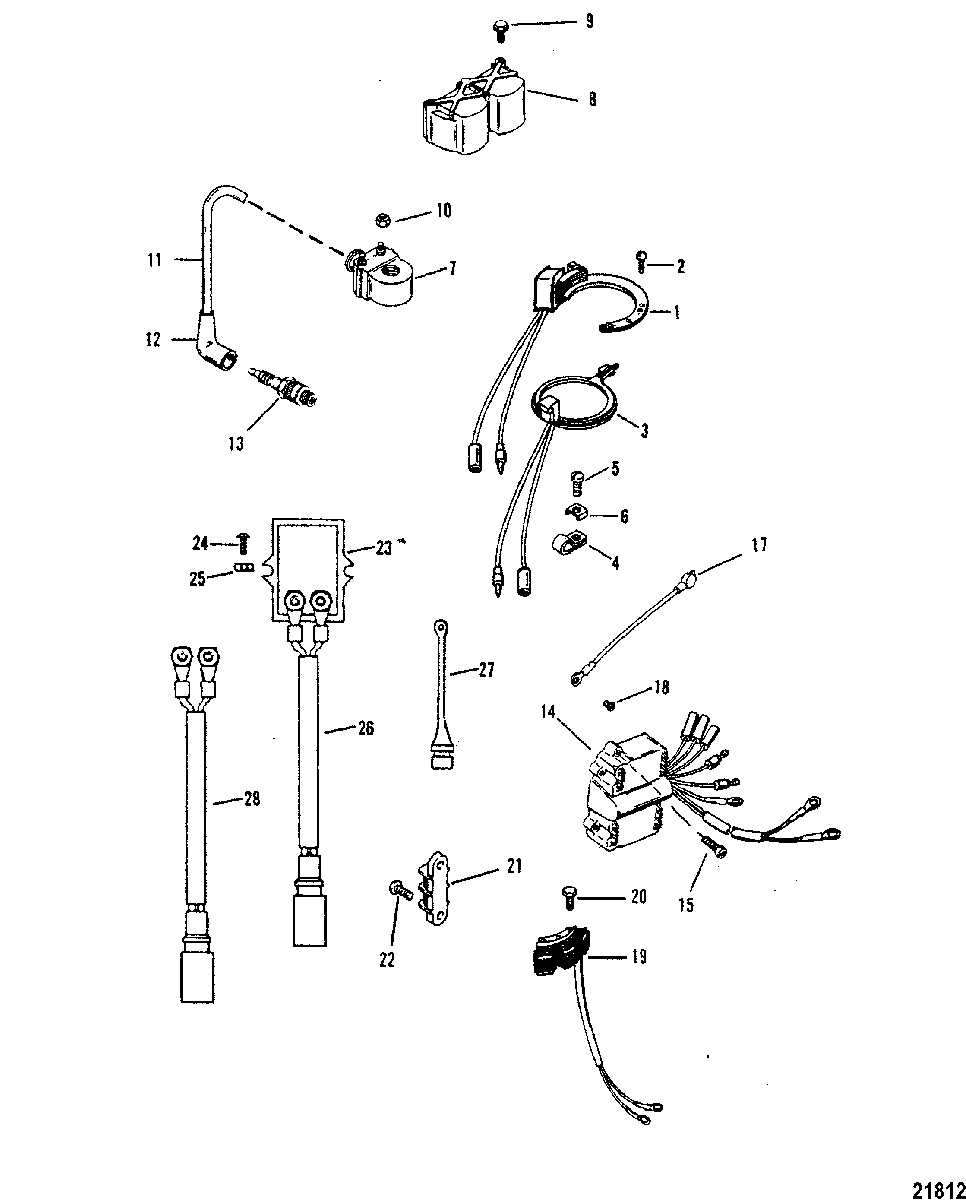

Ignition/Electrical Components для Mercury - 20 (2 CYL.) 0B238464 THRU 0G044026
-
№АртикулНазвание
-
186617A20 STATOR ASSEMBLYSTATOR ASSEMBLY
-
210-4000120 SCREW, (M5 x 25)SCREW, (M5 x 25)
-
210-400015 SCREW, (M5 x 10), STATOR ATTACHINGSCREW, (M5 x 10), STATOR ATTACHING
-
398450A10 TRIGGER ASSEMBLYTRIGGER ASSEMBLY
-
454-24836 CLIP, TRIGGER LEADS
(Manual)CLIP, TRIGGER LEADS
(Manual) -
454-22740 CLIP, TRIGGER LEADS
(Electric/Manual Alternator)CLIP, TRIGGER LEADS
(Electric/Manual Alternator) -
510-48408 SCREW, (#10-16 x .500), CLIP TO CRANKCASESCREW, (#10-16 x .500), CLIP TO CRANKCASE
-
68M0084613 C WASHER, CLIP SCREWC WASHER, CLIP SCREW
-
7339-832757A4 COIL ASSEMBLY, IgnitionCOIL ASSEMBLY, Ignition
-
8997621 COVER, IGNITION COILCOVER, IGNITION COIL
-
910-1994155 SCREW, (M5 x 55) Stainless Steel, IGNITION COIL COVERSCREW, (M5 x 55) Stainless Steel, IGNITION COIL COVER
-
1011-45076 NUT, (#10-32) Brass, COIL TERMINALNUT, (#10-32) Brass, COIL TERMINAL
-
1184-813715A2 HIGH TENSION LEADSHIGH TENSION LEADS
-
1184-813715A2 CABLE SET, High Tension (5 and 8.25 Inch) (COMMERCIAL ENGINES)CABLE SET, High Tension (5 and 8.25 Inch) (COMMERCIAL ENGINES)
-
1285-63709A1 BOOT/TERMINAL KIT, SPARK PLUGBOOT/TERMINAL KIT, SPARK PLUG
-
1333-97180Q SPARK PLUG (NGK #BUZHW)
(See Service Bulletin 91-36)SPARK PLUG (NGK #BUZHW)
(See Service Bulletin 91-36) -
1333-14103Q SPARK PLUG (NGK #BUZHW-2)
(See Service Bulletin 91-36)SPARK PLUG (NGK #BUZHW-2)
(See Service Bulletin 91-36) -
1333-13686Q SPARK PLUG (NGK #BU8H)
(See Service Bulletin 91-36)SPARK PLUG (NGK #BU8H)
(See Service Bulletin 91-36) -
1333-816737Q SPARK PLUG (NGK #BP8H-N-10)
(See Service Bulletin 91-36)SPARK PLUG (NGK #BP8H-N-10)
(See Service Bulletin 91-36) -
1333-816837Q SPARK PLUG (NGK #BPZ8H-N-10)
(See Service Bulletin 91-36)SPARK PLUG (NGK #BPZ8H-N-10)
(See Service Bulletin 91-36) -
14339-7452A19 SWITCHBOX ASSEMBLYSWITCHBOX ASSEMBLY
-
1510-40019108 SCREW, (M5 x 20), SWITCH BOX TO CYLINDER BLOCKSCREW, (M5 x 20), SWITCH BOX TO CYLINDER BLOCK
-
1784-88807A10 CABLE ASSEMBLY, AUXILIARYCABLE ASSEMBLY, AUXILIARY
-
1810-48408 SCREW, (#10-16 x .500), GROUND WIRESCREW, (#10-16 x .500), GROUND WIRE
-
1986704A10 STATOR ASSEMBLY, AUXILIARYSTATOR ASSEMBLY, AUXILIARY
-
2010-4000123 SCREW, (M5 x 30), STATOR ATTACHINGSCREW, (M5 x 30), STATOR ATTACHING
-
2186-638131 TERMINAL BLOCKTERMINAL BLOCK
-
2210-48409 SCREW, (#10-16 x .625) Stainless Steel, TERMINAL BLOCKSCREW, (#10-16 x .625) Stainless Steel, TERMINAL BLOCK
-
2395845T REGULATOR, VoltageREGULATOR, Voltage
-
2410-92799 SCREW, (#10-16 x 1.12)SCREW, (#10-16 x 1.12)
-
2511-45076 NUT, (#10-32) BrassNUT, (#10-32) Brass
-
2684-74725A2 HARNESS ASSEMBLY (BLACK/RED)HARNESS ASSEMBLY (BLACK/RED)
-
2771663 PLUGPLUG
-
2884-65017A2 HARNESS ASSEMBLY (EXTERNAL)HARNESS ASSEMBLY (EXTERNAL)
