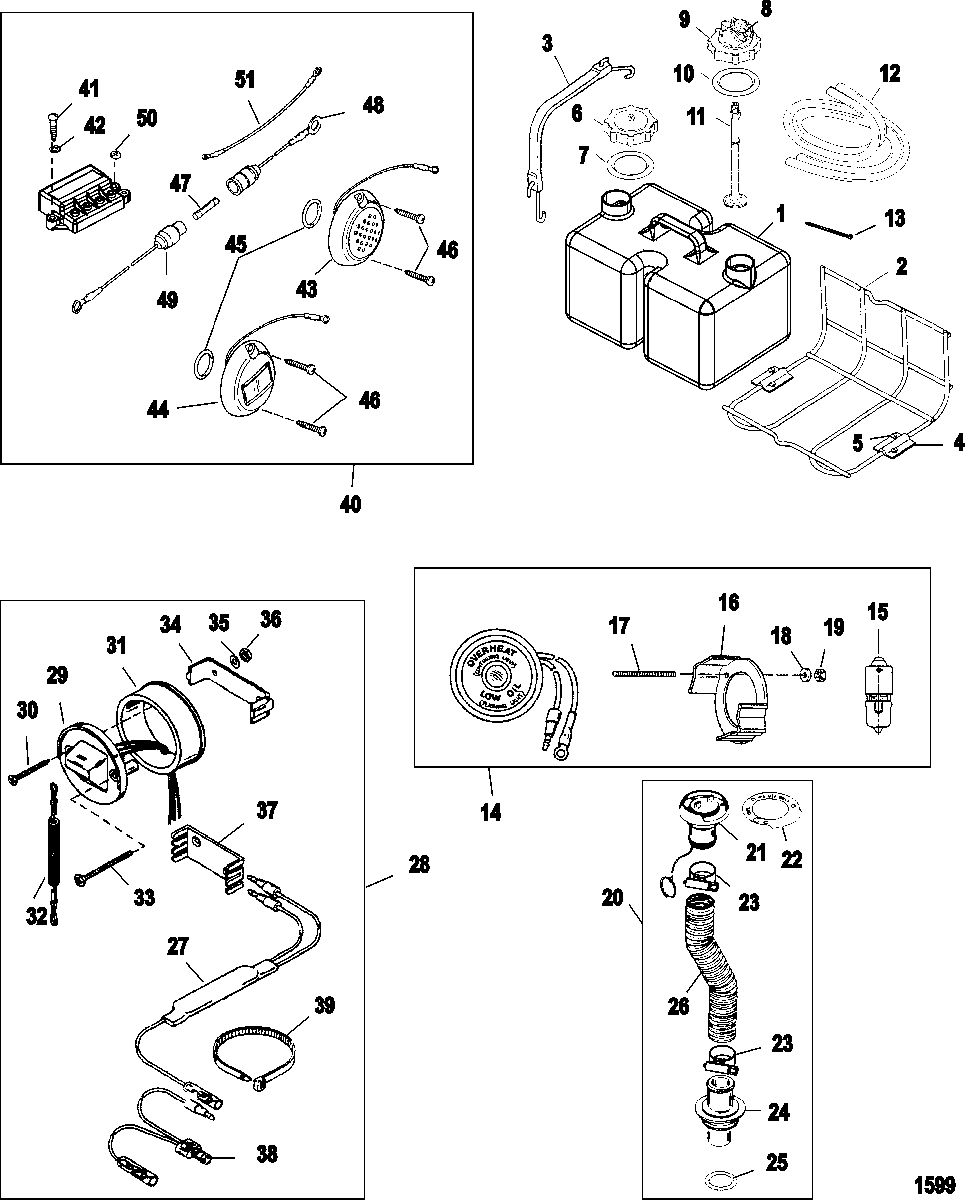

Accessories для Mercury - 200 (3.0L DFI)(DTS) 1B417702 THRU 1B504988
-
№АртикулНазвание
-
-87-8M0117133 SWITCH KIT, Start/Stop - Triple (Triple Engine)SWITCH KIT, Start/Stop - Triple (Triple Engine)
-
-22-852400 FLUSH COUPLINGFLUSH COUPLING
-
-44357Q2 FLUSHING ATTACHMENTFLUSHING ATTACHMENT
-
-881150Q1 FLUSH KIT, Dual Water Pick UpFLUSH KIT, Dual Water Pick Up
-
-32-825191A03 HOSE KIT, RiggingHOSE KIT, Rigging
-
-79-8M0063203 TACH/SPEED SINGE ENGINE HELM KIT, SC1000 Gray FaceTACH/SPEED SINGE ENGINE HELM KIT, SC1000 Gray Face
-
-79-889223K32 TACH/SPEED SINGLE ENGINE HELM KIT, SC1000 White FaceTACH/SPEED SINGLE ENGINE HELM KIT, SC1000 White Face
-
-79-8M6001270 TACHOMETER KIT, 0-7000 RPM Gray FaceTACHOMETER KIT, 0-7000 RPM Gray Face
-
-79-889222K22 TACHOMETER KIT, 0-7000 RPM White FaceTACHOMETER KIT, 0-7000 RPM White Face
-
-41729A3 HOSE EXTENSION KITHOSE EXTENSION KIT
-
-859187A1 SENDER ASSEMBLY, TrimSENDER ASSEMBLY, Trim
-
-87-887979A2 SWITCH KIT, Tilt LimitSWITCH KIT, Tilt Limit
-
11257-8742A22 TANK ASSEMBLY, Remote Oil, Remote Oil
(Non-Digital)TANK ASSEMBLY, Remote Oil, Remote Oil
(Non-Digital) -
11257-8742A21 TANK ASSEMBLY, Remote Oil
(Digital)TANK ASSEMBLY, Remote Oil
(Digital) -
212335A1 BRACKET KITBRACKET KIT
-
312323A1 CORD/HOOK KITCORD/HOOK KIT
-
412320 BRACKETBRACKET
-
510-79968 SCREW, (#12-11 x .750)SCREW, (#12-11 x .750)
-
636-43298A2 CAP ASSEMBLYCAP ASSEMBLY
-
725-11332 O-RING, (2.225 x .210)O-RING, (2.225 x .210)
-
8816190A4 SENDER ASSEMBLY, Oil Level
(Non-Digital)SENDER ASSEMBLY, Oil Level
(Non-Digital) -
8816190A5 SENDER ASSEMBLY, Oil Level
(Digital)SENDER ASSEMBLY, Oil Level
(Digital) -
936-43298A2 CAP ASSEMBLYCAP ASSEMBLY
-
1025-11332 O-RING, (2.225 x .210)O-RING, (2.225 x .210)
-
1132-99802 TUBETUBE
-
1232-99439 HOSE, (114.00 Inches)HOSE, (114.00 Inches)
-
1354-816311T TIE STRAP, (8.00 Inches)TIE STRAP, (8.00 Inches)
-
1417334A2 VISUAL WARNING SYSTEMVISUAL WARNING SYSTEM
-
1588-17429 LAMPLAMP
-
1676424 BRACKETBRACKET
-
1716-55422 STUD, (#10-32 x 2.00)STUD, (#10-32 x 2.00)
-
1812-24676 WASHER, (.200 x .440 x .032)WASHER, (.200 x .440 x .032)
-
1911-68219 NUT, (#10-32) Stainless SteelNUT, (#10-32) Stainless Steel
-
2015969A3 DECK FILL KIT, OilDECK FILL KIT, Oil
-
2115969A13 DECK FILL KIT, OilDECK FILL KIT, Oil
-
2215966 PLATEPLATE
-
2354-815504228 CLAMP, Worm GearCLAMP, Worm Gear
-
2415967 ADAPTOR, Oil FillerADAPTOR, Oil Filler
-
2525-11332 O-RING, (2.225 x .210)O-RING, (2.225 x .210)
-
2632-850719 HOSE, (100.00 Feet Bulk)HOSE, (100.00 Feet Bulk)
-
2784-898289A72 DIODE ASSEMBLY
(Not Included with Kit Reference #28)DIODE ASSEMBLY
(Not Included with Kit Reference #28) -
2887-19674Q2 SWITCH/LANYARD KITSWITCH/LANYARD KIT
-
2987-19674A1 SWITCH ASSEMBLY, LanyardSWITCH ASSEMBLY, Lanyard
-
3010-18303 SCREW, (.190-16 x 1.750) Stainless SteelSCREW, (.190-16 x 1.750) Stainless Steel
-
31813679 ADAPTERADAPTER
-
328M0092850 LANYARD ASSEMBLYLANYARD ASSEMBLY
-
3310-32866 SCREW, (#10-32 x 2.00) Stainless SteelSCREW, (#10-32 x 2.00) Stainless Steel
-
3418321 CLAMP, MountingCLAMP, Mounting
-
3512-24676 WASHER, (.200 x .440 x .032)WASHER, (.200 x .440 x .032)
-
3611-68219 NUT, (#10-32) Stainless SteelNUT, (#10-32) Stainless Steel
-
3779146 RETAINERRETAINER
-
3884-11149A2 CABLE ASSEMBLY, (6.00 Inches)CABLE ASSEMBLY, (6.00 Inches)
-
3954-816311T TIE STRAP, (8.00 Inches)TIE STRAP, (8.00 Inches)
-
4088334A2 MERCATHODE KITMERCATHODE KIT
-
4110-22793 SCREW, (#9-14 x .875)SCREW, (#9-14 x .875)
-
4212-30164 WASHER, (.192 x .375 x .0312) Stainless SteelWASHER, (.192 x .375 x .0312) Stainless Steel
-
4372958A5 ELECTRODE ASSEMBLYELECTRODE ASSEMBLY
-
4497-72957A5 ANODE ASSEMBLYANODE ASSEMBLY
-
4525-21836 O-RING, (.796 x .139)O-RING, (.796 x .139)
-
4610-87698 SCREW, (#10-16 x 1.250) Stainless SteelSCREW, (#10-16 x 1.250) Stainless Steel
-
4788-79091 FUSE, 20 AmpereFUSE, 20 Ampere
-
4884-95084A10 CABLE ASSEMBLY, (5.00 Inches) RedCABLE ASSEMBLY, (5.00 Inches) Red
-
4984-95084A13 CABLE ASSEMBLY, (64.00 Inches)CABLE ASSEMBLY, (64.00 Inches)
-
5011-45076 NUT, (#10-32) BrassNUT, (#10-32) Brass
-
5184-79138A8 CABLE ASSEMBLY, (72.00 Inches) BlackCABLE ASSEMBLY, (72.00 Inches) Black
