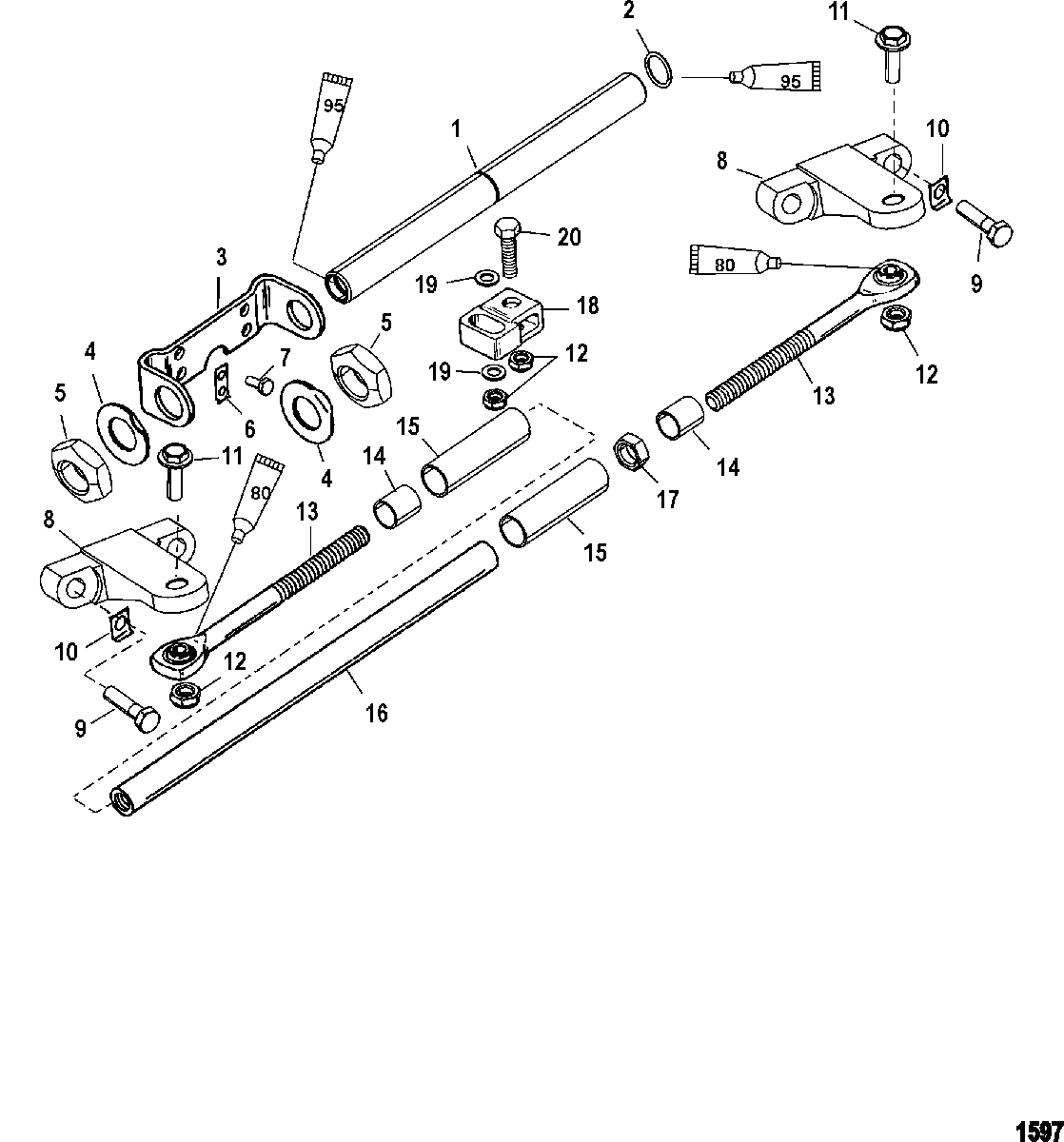

Dual Engine Tie Bar Kit для Mercury - 200 (3.0L DFI)(DTS) 1B417702 THRU 1B504988
-
№АртикулНазвание
-
-92876A9 EXTENSION KIT, Dual EngineEXTENSION KIT, Dual Engine
-
171565A2 TUBE ASSEMBLYTUBE ASSEMBLY
-
225-48462 O-RING, (.614 x .070)O-RING, (.614 x .070)
-
341055 MOUNTMOUNT
-
414-42100 TAB WASHERTAB WASHER
-
511-8M0041651 NUT, (.875-14)NUT, (.875-14)
-
688404 TAB WASHERTAB WASHER
-
710-38601 SCREW, (.250-28 x 1.250)SCREW, (.250-28 x 1.250)
-
817729A1 BRACKETBRACKET
-
910-62055 SCREW, (.312-24 x 1.250)SCREW, (.312-24 x 1.250)
-
1017728 TAB WASHERTAB WASHER
-
1110-140001 SCREW, (.375-24 x 1.38)SCREW, (.375-24 x 1.38)
-
1211-8M0042636 NUT, (.375-24) Stainless SteelNUT, (.375-24) Stainless Steel
-
138M0026167 STEERING EYESTEERING EYE
-
1423-23651 SLEEVE, (1.625)SLEEVE, (1.625)
-
1597931 TUBING, (4.00 Inches)TUBING, (4.00 Inches)
-
168M0026098 COUPLER, 15 In.COUPLER, 15 In.
-
1711-42099 NUT, (.562-18)NUT, (.562-18)
-
1822-821169 COUPLINGCOUPLING
-
1912-34931 WASHER, (.406 x .734 x .063) Stainless SteelWASHER, (.406 x .734 x .063) Stainless Steel
-
1912-37828 WASHER, (.390 x .625 x .062) Stainless SteelWASHER, (.390 x .625 x .062) Stainless Steel
-
2010-94319 SCREW, (.375-24 x 1.5)SCREW, (.375-24 x 1.5)
