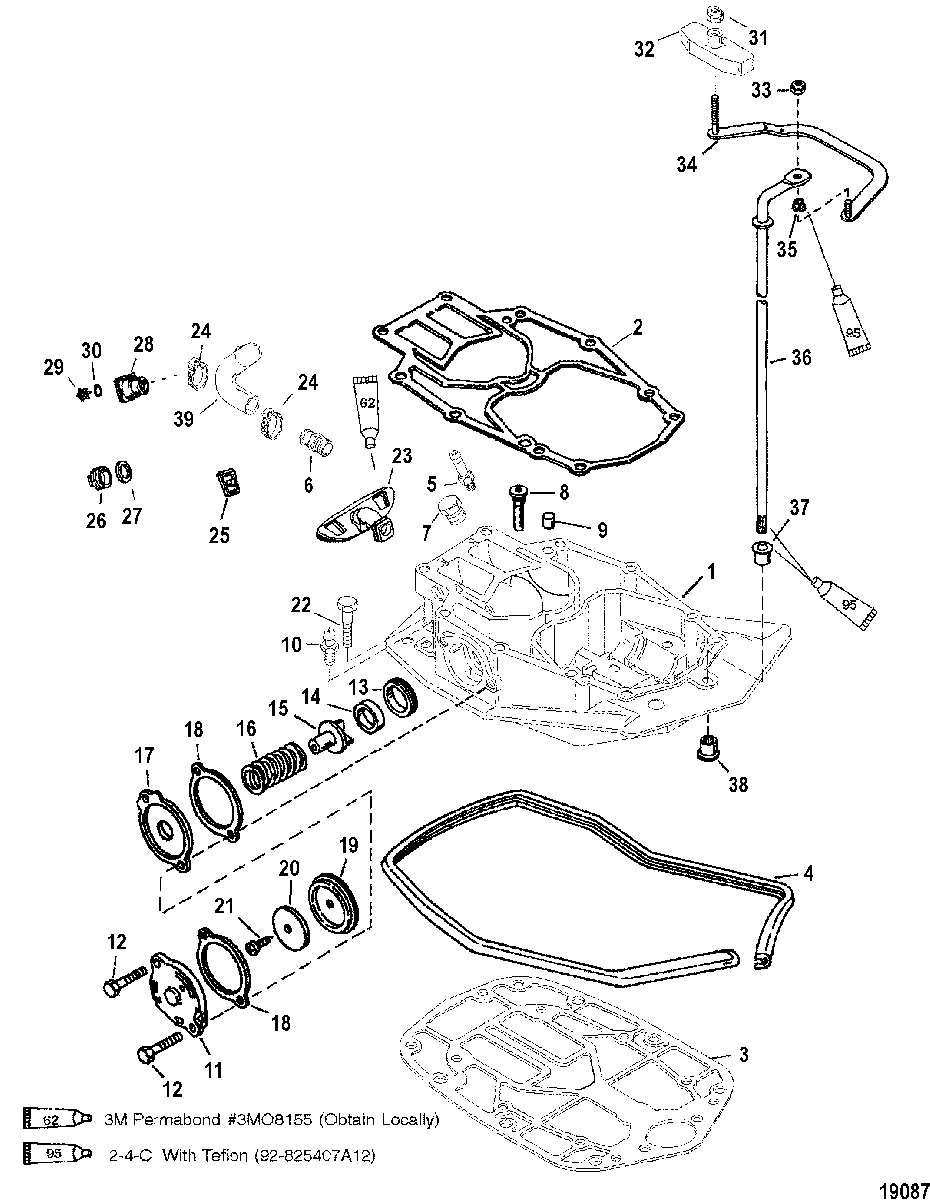

Exhaust Plate для Mercury - 200 (DFI) 0G590000 THRU 0G760299
-
№АртикулНазвание
-
1832935A6 PLATE ASSEMBLY, ExhaustPLATE ASSEMBLY, Exhaust
-
227-832933006 GASKETGASKET
-
327-832934006 GASKET (LOWER)GASKET (LOWER)
-
48M0043157 SEALSEAL
-
522-856963 CONNECTORCONNECTOR
-
622-8320761 ELBOW, Cylinder BlockELBOW, Cylinder Block
-
722-36382 FITTING, (.250-18 x .62) BrassFITTING, (.250-18 x .62) Brass
-
821-817519A1 CHECK VALVE ASSEMBLY, DrainCHECK VALVE ASSEMBLY, Drain
-
917-43044 PIN, Dowel - Without Hole (.375 x .625)PIN, Dowel - Without Hole (.375 x .625)
-
1022-8552141 FITTINGFITTING
-
1165663A2 COVER ASSEMBLYCOVER ASSEMBLY
-
1210-81893435 SCREW, (M8 x 35)SCREW, (M8 x 35)
-
13814190 CARRIERCARRIER
-
1425-814191 GROMMETGROMMET
-
15814189 POPPETPOPPET
-
1624-64878 SPRINGSPRING
-
1765664A1 PLATE ASSEMBLYPLATE ASSEMBLY
-
1827-88907003 GASKETGASKET
-
19648771 DIAPHRAGMDIAPHRAGM
-
2012-76451 WASHERWASHER
-
2110-69570 SCREW, (#10-16 x .750)SCREW, (#10-16 x .750)
-
2210-81893435 SCREW, (M8 x 35)SCREW, (M8 x 35)
-
23850306A04 BOOT, Idle ExhaustBOOT, Idle Exhaust
-
2454-850896 CLAMP, (28.6)CLAMP, (28.6)
-
2522-8M0077650 FITTING, Tell-TaleFITTING, Tell-Tale
-
2619-821908 PLUGPLUG
-
2712-821915 WASHERWASHER
-
2822-821952 FITTINGFITTING
-
298219631 CHECK VALVECHECK VALVE
-
3025-30641 O-RING, (.299 x .103)O-RING, (.299 x .103)
-
3111-401386 NUT, (M6)NUT, (M6)
-
328539682 SLIDESLIDE
-
3311-401386 NUT, (M6)NUT, (M6)
-
34883142A03 SHIFT LINKSHIFT LINK
-
3523-42994 BUSHINGBUSHING
-
368M0036408 SHIFT SHAFT, Upper
(LONG)SHIFT SHAFT, Upper
(LONG) -
368M0046246 SHIFT SHAFT, Upper
(X-LONG)SHIFT SHAFT, Upper
(X-LONG) -
368240703 SHIFT SHAFT, Upper
(XX-LONG)SHIFT SHAFT, Upper
(XX-LONG) -
3723-48237 BUSHINGBUSHING
-
3843585 COUPLINGCOUPLING
-
3932-859626A1 HOSE (INLET)HOSE (INLET)
-
-854198R99 POWERHEAD ASSEMBLY
(200)POWERHEAD ASSEMBLY
(200) -
-854199A99 POWERHEAD ASSEMBLY
(225)POWERHEAD ASSEMBLY
(225) -
-27-8M0133170 GASKET SETGASKET SET
