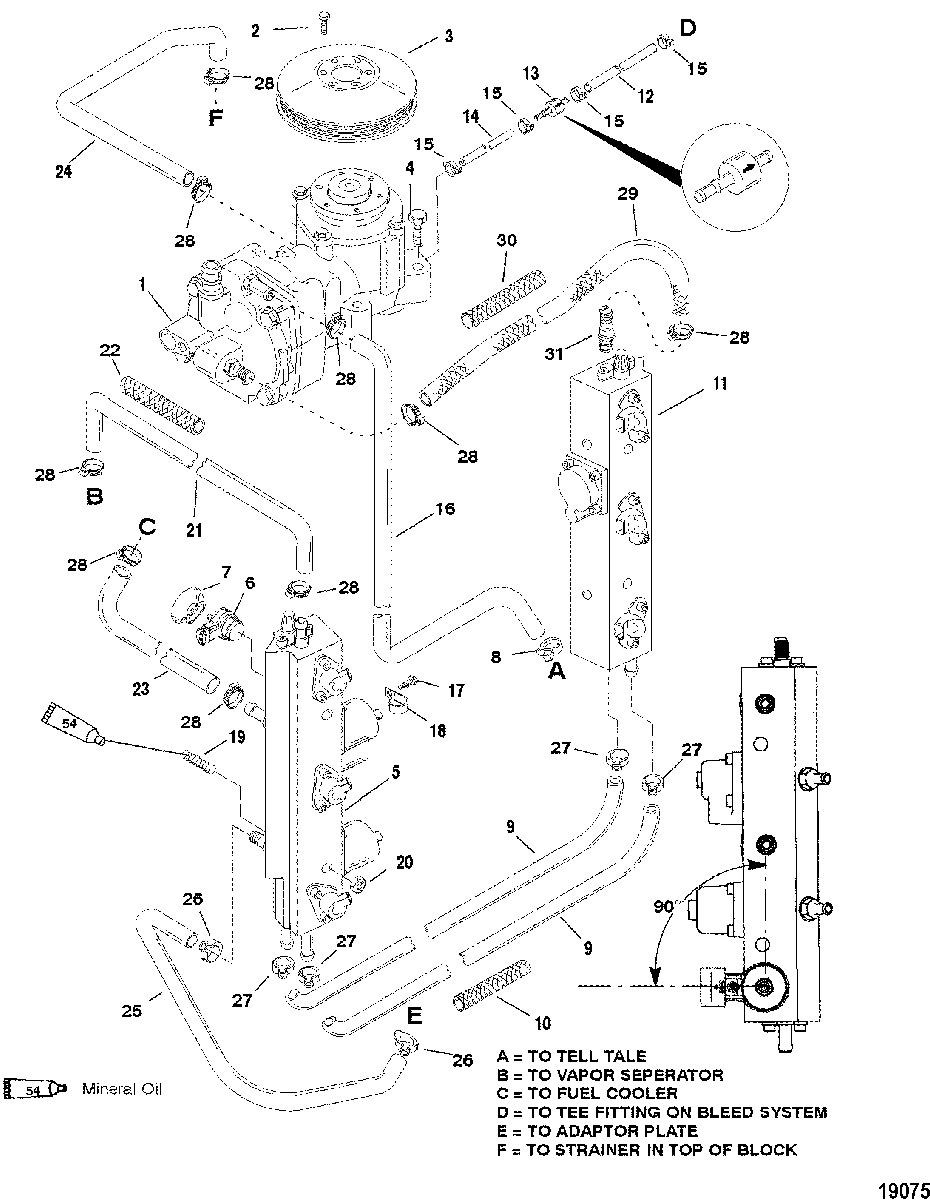

Fuel Rails для Mercury - 200 (DFI) 0G590000 THRU 0G760299
-
№АртикулНазвание
-
18M0133589 COMPRESSOR ASSEMBLY, Air
(SEE BREAKDOWN ON AIR COMPRESSOR COMPONENTS)COMPRESSOR ASSEMBLY, Air
(SEE BREAKDOWN ON AIR COMPRESSOR COMPONENTS) -
210-85593912 SCREW, (M6 x 12)SCREW, (M6 x 12)
-
38328233 PULLEYPULLEY
-
410-81893450 SCREW, (M8 x 50)SCREW, (M8 x 50)
-
5852394T5 FUEL RAIL (PORT)FUEL RAIL (PORT)
-
68M6001743 INJECTORINJECTOR
-
712-828694A1 WASHER ASSEMBLY, CuppedWASHER ASSEMBLY, Cupped
-
854-816311T TIE STRAP, (8.00 Inches)TIE STRAP, (8.00 Inches)
-
932-8M0064785 HOSE, FUEL/AIR BALANCEHOSE, FUEL/AIR BALANCE
-
1023-85686953 SLEEVE, (27.00 Inches Bulk)SLEEVE, (27.00 Inches Bulk)
-
11852395T5 FUEL RAIL (STARBOARD)FUEL RAIL (STARBOARD)
-
1232-85682931 TUBING (2-1/2 IN.)TUBING (2-1/2 IN.)
-
1321-826810 CHECK VALVECHECK VALVE
-
1432-85682931 TUBING (9 IN.)TUBING (9 IN.)
-
1554-816311T TIE STRAP, (8.00 Inches)TIE STRAP, (8.00 Inches)
-
1632-856839 TUBINGTUBING
-
1710-82104510 SCREW, (M5 x 10)SCREW, (M5 x 10)
-
1854-46997 CLAMPCLAMP
-
1916-8M0063255 STUD (M10 X 91)STUD (M10 X 91)
-
2011-826292 NUT, (M10) Brass/Nickel PlatedNUT, (M10) Brass/Nickel Plated
-
2132-8M0064781 HOSE, FUEL SUPPLYHOSE, FUEL SUPPLY
-
2223-85686953 SLEEVE, (27.00 Inches Bulk)SLEEVE, (27.00 Inches Bulk)
-
2332-85466755 HOSE (2 IN.) - FUEL RETURNHOSE (2 IN.) - FUEL RETURN
-
2432-8568201 HOSEHOSE
-
2532-856952 TUBING, AIR DUMPTUBING, AIR DUMP
-
2654-850241 CLAMP (14.0)CLAMP (14.0)
-
2754-855697 CLAMPCLAMP
-
2854-856880 CLAMP, Hose (15.3)CLAMP, Hose (15.3)
-
2932-8567631 HOSE ASSEMBLYHOSE ASSEMBLY
-
3023-85687631 SLEEVE, (16.00 Inches)SLEEVE, (16.00 Inches)
-
3122-8567411 FITTINGFITTING
-
-854198R99 POWERHEAD ASSEMBLY
(200)POWERHEAD ASSEMBLY
(200) -
-854199A99 POWERHEAD ASSEMBLY
(225)POWERHEAD ASSEMBLY
(225)
