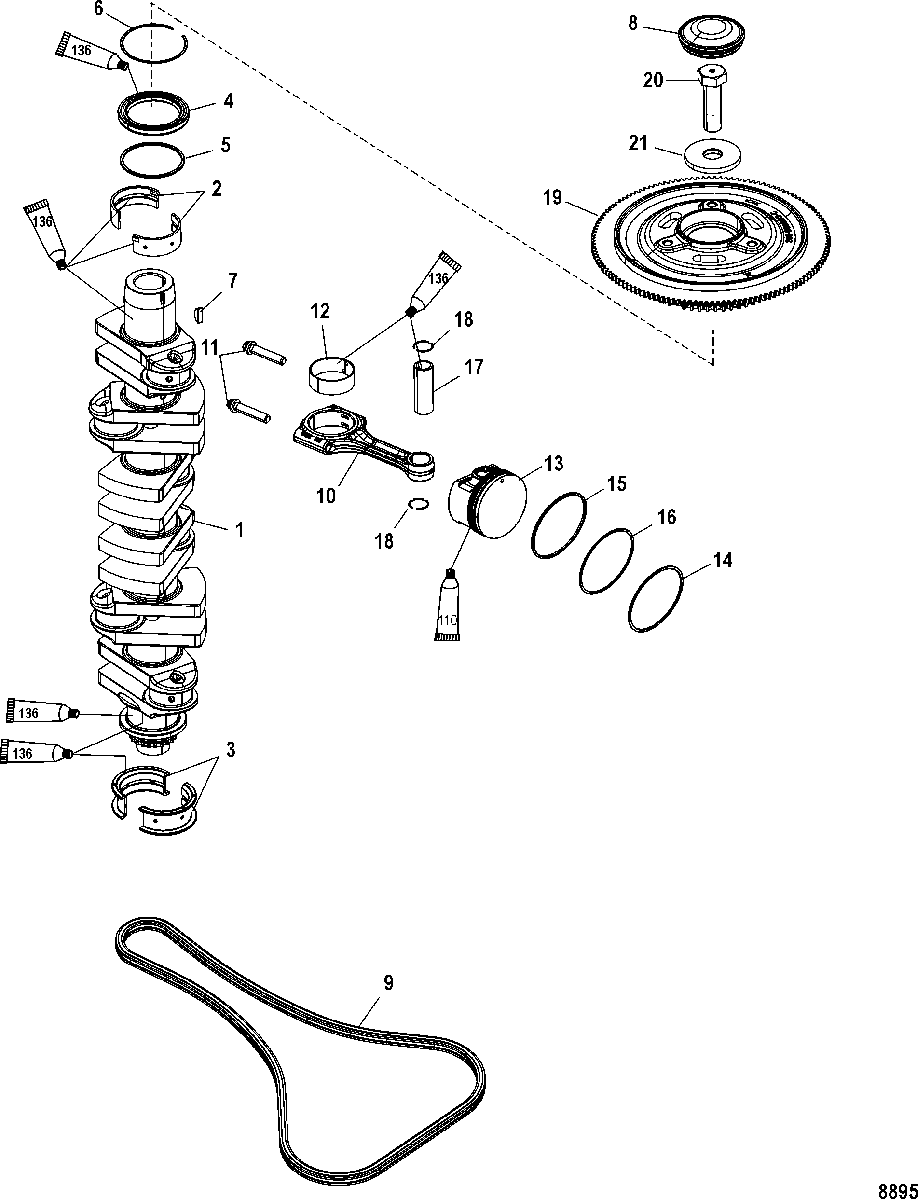

Crankshaft, Pistons and Connecting Rods для Mercury - 200 PRO VERADO (4-Stroke)(6 CYL.) 2B034840 THRU 2B144122
-
№АртикулНазвание
-
1400-891644A04 CRANKSHAFT ASSEMBLYCRANKSHAFT ASSEMBLY
-
223-897498T05 BEARING, Main (Green)BEARING, Main (Green)
-
223-897498T06 BEARING, Main (Navy Blue)BEARING, Main (Navy Blue)
-
223-897498T07 BEARING, Main (White)BEARING, Main (White)
-
223-897498T08 BEARING, Main (Orange)BEARING, Main (Orange)
-
323-8M0117003 BEARING, Thrust - Green, Crankshaft-Lower
(Green)BEARING, Thrust - Green, Crankshaft-Lower
(Green) -
323-8M0117001 BEARING, Thrust - Navy Blue, Crankshaft-Lower
(Navy Blue)BEARING, Thrust - Navy Blue, Crankshaft-Lower
(Navy Blue) -
323-8M0117002 BEARING, Thrust - White, Crankshaft-Lower
(White)BEARING, Thrust - White, Crankshaft-Lower
(White) -
323-8M0117004 BEARING, Thrust - Orange, Crankshaft-Lower
(Orange)BEARING, Thrust - Orange, Crankshaft-Lower
(Orange) -
426-8M0032912 SEAL, Top Main BearingSEAL, Top Main Bearing
-
523-896883 SPACERSPACER
-
653-896882 RING, RetainingRING, Retaining
-
728-91800 KEY, WoodruffKEY, Woodruff
-
819-885348 CAP, Flywheel BoltCAP, Flywheel Bolt
-
98M0103398 CHAIN, Roller Cam DriveCHAIN, Roller Cam Drive
-
10662-8M0103285 CONNECTING ROD ASSEMBLYCONNECTING ROD ASSEMBLY
-
1110-884441 BOLTBOLT
-
1223-892005A01 BEARING, Connecting Rod - Blue
(Blue)BEARING, Connecting Rod - Blue
(Blue) -
1223-892005A02 BEARING, Connecting Rod - White
(White)BEARING, Connecting Rod - White
(White) -
1223-892005A03 BEARING, Connecting Rod - Orange
(Orange)BEARING, Connecting Rod - Orange
(Orange) -
13700-898499T02 PISTON ASSEMBLYPISTON ASSEMBLY
-
1439-881180A02 RING SET, PistonRING SET, Piston
-
15NSS NOT SOLD SEPARATE, Piston Ring-OilNOT SOLD SEPARATE, Piston Ring-Oil
-
16NSS NOT SOLD SEPARATE, Piston Ring-2ndNOT SOLD SEPARATE, Piston Ring-2nd
-
17NSS NOT SOLD SEPARATE, Piston PinNOT SOLD SEPARATE, Piston Pin
-
1840-896594 CIRCLIPCIRCLIP
-
19200-888983T03 FLYWHEEL ASSEMBLYFLYWHEEL ASSEMBLY
-
2010-880515 BOLT, (M20 x 68)BOLT, (M20 x 68)
-
2112-8M0090010 WASHERWASHER
-
-61-895247A07 POWERHEAD ASSEMBLYPOWERHEAD ASSEMBLY
