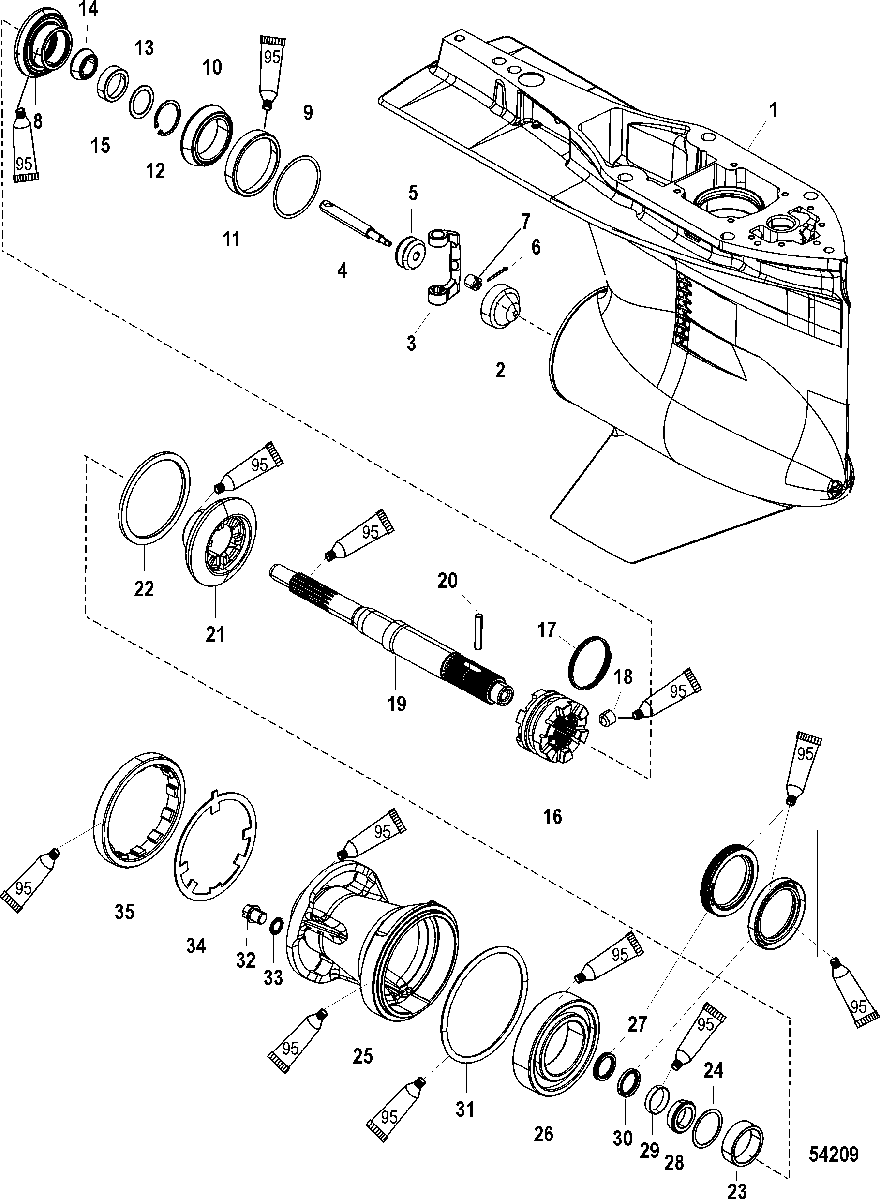

Gear Housing, Propeller Shaft 2B026817 and up для Mercury - 200 PRO VERADO (4-Stroke)(6 CYL.) 2B034840 THRU 2B144122
-
№АртикулНазвание
-
-1600-880686T13 GEAR HOUSING ASSEMBLY, Complete
(Standard-Long)(1.85:1)(250 Pro)GEAR HOUSING ASSEMBLY, Complete
(Standard-Long)(1.85:1)(250 Pro) -
-1600-880686T14 GEAR HOUSING ASSEMBLY, Complete
(Standard-X-Long)(1.85:1)(250 Pro)GEAR HOUSING ASSEMBLY, Complete
(Standard-X-Long)(1.85:1)(250 Pro) -
-1600-880686T54 GEAR HOUSING ASSEMBLY, Complete
(Standard-Long)(1.75:1)(300 Pro)GEAR HOUSING ASSEMBLY, Complete
(Standard-Long)(1.75:1)(300 Pro) -
-1600-880686T55 GEAR HOUSING ASSEMBLY, Complete
(Standard-X-Long)(1.75:1)(300 Pro)GEAR HOUSING ASSEMBLY, Complete
(Standard-X-Long)(1.75:1)(300 Pro) -
11600-8M0056631 GEAR HOUSING ASSEMBLY, Basic
Use with 1/4 Inch Shift Crank SN# 1B853029 & UpGEAR HOUSING ASSEMBLY, Basic
Use with 1/4 Inch Shift Crank SN# 1B853029 & Up -
2NSS NOT SOLD SEPARATE, PlugNOT SOLD SEPARATE, Plug
-
38M0046215 CRANK, Shifter, 1/4 Pivot Pin
SN# 1B853029 & UpCRANK, Shifter, 1/4 Pivot Pin
SN# 1B853029 & Up -
419755T7 SPOOL ASSEMBLYSPOOL ASSEMBLY
-
5NSS NOT SOLD SEPARATE, SpoolNOT SOLD SEPARATE, Spool
-
618-469501 COTTER PINCOTTER PIN
-
7NSS NOT SOLD SEPARATE, Sleeve AdjustingNOT SOLD SEPARATE, Sleeve Adjusting
-
843-892595A05 GEAR SET, Forward/Pinion
(1.85:1)(250 Pro)GEAR SET, Forward/Pinion
(1.85:1)(250 Pro) -
843-892595A04 GEAR SET, Forward/Pinion
(1.75:1)(300 Pro)GEAR SET, Forward/Pinion
(1.75:1)(300 Pro) -
915-8M0063270 SHIM SETSHIM SET
-
1031-884323T01 BEARING ASSEMBLY, RollerBEARING ASSEMBLY, Roller
-
11NSS NOT SOLD SEPARATE, CupNOT SOLD SEPARATE, Cup
-
1253-8M0051043 RING, RetainingRING, Retaining
-
1312-8M0053823 THRUST WASHERTHRUST WASHER
-
1431-884325T01 BEARING ASSEMBLY, Roller-TapperedBEARING ASSEMBLY, Roller-Tappered
-
15NSS NOT SOLD SEPARATE, CupNOT SOLD SEPARATE, Cup
-
1652-880714T CLUTCHCLUTCH
-
1724-30893 SPRINGSPRING
-
1817-828356 PIN, DetentPIN, Detent
-
1944-8M0140446 PROPELLER SHAFTPROPELLER SHAFT
-
2017-8M0100263 PIN, CrossPIN, Cross
-
2143-8M0142891 GEAR ASSEMBLY, Reverse
(1.85:1)(250 Pro)GEAR ASSEMBLY, Reverse
(1.85:1)(250 Pro) -
2143-8M0118363 GEAR, Reverse
(1.75)(300 Pro)GEAR, Reverse
(1.75)(300 Pro) -
22880699 THRUST RINGTHRUST RING
-
2323-8M0064306 SPACERSPACER
-
2415-8M0076745 SHIM SETSHIM SET
-
2412-8M0050423 WASHER, .020WASHER, .020
-
2412-8M0050424 WASHER, .022WASHER, .022
-
2412-8M0050425 WASHER, .024WASHER, .024
-
2412-8M0050427 WASHER, .026WASHER, .026
-
2412-8M0050428 WASHER, .028WASHER, .028
-
2412-8M0050429 WASHER, .030WASHER, .030
-
2412-8M0050430 WASHER, .032WASHER, .032
-
2412-8M0050431 WASHER, .034WASHER, .034
-
2412-8M0050432 WASHER, .036WASHER, .036
-
2412-8M0050433 WASHER, .038WASHER, .038
-
2412-8M0050434 WASHER, .040WASHER, .040
-
2412-8M0050435 WASHER, .042WASHER, .042
-
2412-8M0050436 WASHER, .044WASHER, .044
-
2412-8M0050437 WASHER, .046WASHER, .046
-
2412-8M0050438 WASHER, .048WASHER, .048
-
2412-8M0050439 WASHER, .050WASHER, .050
-
258M0083392 CARRIER ASSEMBLY, BearingCARRIER ASSEMBLY, Bearing
-
2630-8M0142873 BEARING, BallBEARING, Ball
-
2726-888483 SEAL, OilSEAL, Oil
-
2831-884330T01 BEARING ASSEMBLY, TaperedBEARING ASSEMBLY, Tapered
-
29NSS NOT SOLD SEPARATE, CupNOT SOLD SEPARATE, Cup
-
3026-888483 SEAL, OilSEAL, Oil
-
3125-896524 O-RING, (3.850 x .210)O-RING, (3.850 x .210)
-
3210-880717A01 SCREW/SEAL KITSCREW/SEAL KIT
-
3326-830749 SEALSEAL
-
3414-880697 KEYED WASHERKEYED WASHER
-
358M2000347 RETAINERRETAINER
-
-26-830749A01 SEAL KIT, Gear HousingSEAL KIT, Gear Housing
