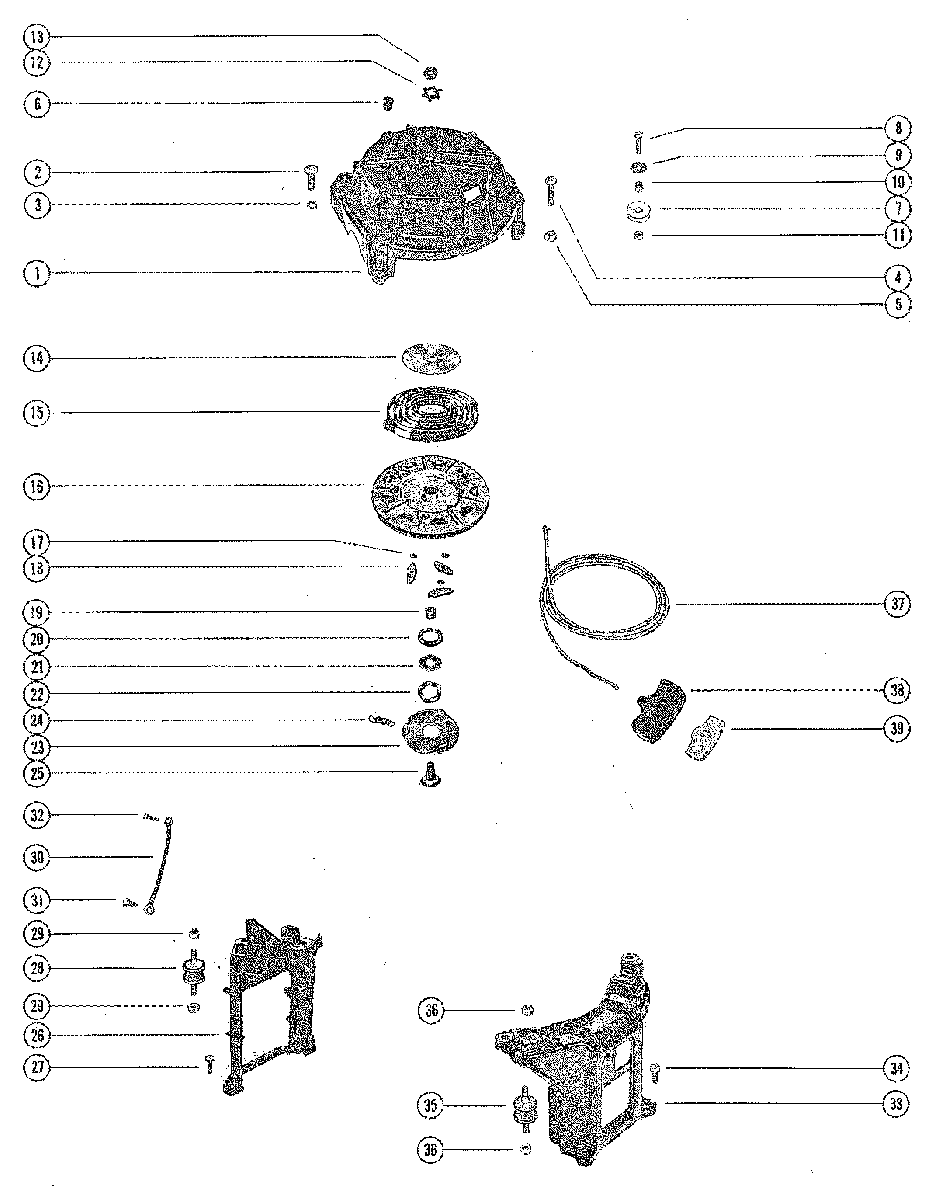

STARTER ASSEMBLY для Mercury - 200 3537531 THRU 4709592
-
№АртикулНазвание
-
175349A2 HOUSING ASSEMBLY,STARTERHOUSING ASSEMBLY,STARTER
-
210-37562 SCREW,STARTER HOUSING TO CYLINDER BLOCK (1")SCREW,STARTER HOUSING TO CYLINDER BLOCK (1")
-
313-26993 LOCKWASHER,STARTER HOUSING TO CYLINDER BLOCK SCREWLOCKWASHER,STARTER HOUSING TO CYLINDER BLOCK SCREW
-
410-20653 SCREW,STARTER HOUSING TO CRANKCASE (1 3/8")
UNITED STATES 4351589 AND BELOW
AUSTRALIA 8036049 AND BELOW
BELGIUM 9104813 AND BELOW
CANADA 7067847 AND BELOWSCREW,STARTER HOUSING TO CRANKCASE (1 3/8")
UNITED STATES 4351589 AND BELOW
AUSTRALIA 8036049 AND BELOW
BELGIUM 9104813 AND BELOW
CANADA 7067847 AND BELOW -
410-22659 SCREW,STARTER HOUSING TO CRANKCASE (1 5/8")
UNITED STATES 4351589 AND BELOW
AUSTRALIA 8036049 AND BELOW
BELGIUM 9104813 AND BELOW
CANADA 7067847 AND BELOWSCREW,STARTER HOUSING TO CRANKCASE (1 5/8")
UNITED STATES 4351589 AND BELOW
AUSTRALIA 8036049 AND BELOW
BELGIUM 9104813 AND BELOW
CANADA 7067847 AND BELOW -
511-20184 NUT,STARTER HOUSING TO CRANKCASE SCREW
UNITED STATES 4351589 AND BELOW
AUSTRALIA 8036049 AND BELOW
BELGIUM 9104813 AND BELOW
CANADA 7067847 AND BELOWNUT,STARTER HOUSING TO CRANKCASE SCREW
UNITED STATES 4351589 AND BELOW
AUSTRALIA 8036049 AND BELOW
BELGIUM 9104813 AND BELOW
CANADA 7067847 AND BELOW -
410-36137 SCREW,STARTER HOUSING TO CRANKCASE (1")
UNITED STATES 4351590 AND UP
AUSTRALIA 8036050 AND UP
BELGIUM 9104814 AND UP
CANADA 7067848 AND UPSCREW,STARTER HOUSING TO CRANKCASE (1")
UNITED STATES 4351590 AND UP
AUSTRALIA 8036050 AND UP
BELGIUM 9104814 AND UP
CANADA 7067848 AND UP -
410-72754 SCREW,STARTER HOUSING TO CRANKCASE (1 5/8")
UNITED STATES 4351590 AND UP
AUSTRALIA 8036050 AND UP
BELGIUM 9104814 AND UP
CANADA 7067848 AND UPSCREW,STARTER HOUSING TO CRANKCASE (1 5/8")
UNITED STATES 4351590 AND UP
AUSTRALIA 8036050 AND UP
BELGIUM 9104814 AND UP
CANADA 7067848 AND UP -
511-35888 NUT,STARTER HOUSING TO CRANKCASE SCREWNUT,STARTER HOUSING TO CRANKCASE SCREW
-
647430 BUMPER,RUBBER-STARTER HOUSINGBUMPER,RUBBER-STARTER HOUSING
-
755860 PULLEY,STARTER CABLEPULLEY,STARTER CABLE
-
810-37892 SCREW,PULLEY TO STARTER HOUSING (1")SCREW,PULLEY TO STARTER HOUSING (1")
-
994121 RETAINER,PULLEY SCREWRETAINER,PULLEY SCREW
-
1023-309772 SPACER,PULLEY SCREWSPACER,PULLEY SCREW
-
1111-20110 NUT,PULLEY SCREWNUT,PULLEY SCREW
-
1214-20165 TAB WASHER,SHEAVE SHAFT NUT
UNITED STATES 3755884 AND BELOW
AUSTRALIA 8013704 AND BELOW
BELGIUM 9035128 AND BELOW
CANADA 7024647 AND BELOWTAB WASHER,SHEAVE SHAFT NUT
UNITED STATES 3755884 AND BELOW
AUSTRALIA 8013704 AND BELOW
BELGIUM 9035128 AND BELOW
CANADA 7024647 AND BELOW -
1214-61004 TAB WASHER,SHEAVE SHAFT NUT
UNITED STATES 3755885 AND UP
AUSTRALIA 8013705 AND UP
BELGIUM 9035129 AND UP
CANADA 7024648 AND UPTAB WASHER,SHEAVE SHAFT NUT
UNITED STATES 3755885 AND UP
AUSTRALIA 8013705 AND UP
BELGIUM 9035129 AND UP
CANADA 7024648 AND UP -
1311-20166 NUT,SHEAVE SHAFT (LEFT HAND THREAD)NUT,SHEAVE SHAFT (LEFT HAND THREAD)
-
1420155 RETAINER STARTER SPRING
UNITED STATES 3755884 AND BELOW
AUSTRALIA 8013704 AND BELOW
BELGIUM 9035128 AND BELOW
CANADA 7024647 AND BELOWRETAINER STARTER SPRING
UNITED STATES 3755884 AND BELOW
AUSTRALIA 8013704 AND BELOW
BELGIUM 9035128 AND BELOW
CANADA 7024647 AND BELOW -
1465890 RETAINER,STARTER SPRING
UNITED STATES 3755885 AND UP
AUSTRALIA 8013705 AND UP
BELGIUM 9035129 AND UP
CANADA 7024648 AND UPRETAINER,STARTER SPRING
UNITED STATES 3755885 AND UP
AUSTRALIA 8013705 AND UP
BELGIUM 9035129 AND UP
CANADA 7024648 AND UP -
1524-29340T02 SPRING,STARTER REWINDSPRING,STARTER REWIND
-
1650-64008A1 STARTER SHEAVE ASSEMBLYSTARTER SHEAVE ASSEMBLY
-
1713-29720 WASHER,WAVE-STARTER PAWLWASHER,WAVE-STARTER PAWL
-
1820162 PAWL,STARTERPAWL,STARTER
-
1923-65720 SPACER,SHEAVE SHAFT(PART OF A-50-64008A1 SHEAVE ASSEMBLY)SPACER,SHEAVE SHAFT(PART OF A-50-64008A1 SHEAVE ASSEMBLY)
-
2026179 RETAINER,STARTER SHEAVE TO PLATERETAINER,STARTER SHEAVE TO PLATE
-
2112-35559 WASHER,STARTER SHEAVE RETAINERWASHER,STARTER SHEAVE RETAINER
-
2213-20160 WASHER,WAVE-STARTER SHEAVE TENSIONWASHER,WAVE-STARTER SHEAVE TENSION
-
2320164 PLATE,RETAINER-STARTER PAWLPLATE,RETAINER-STARTER PAWL
-
2424-45823 SPRING,PAWL RETAINER PLATESPRING,PAWL RETAINER PLATE
-
2565869A1 SHAFT,SHEAVE
UNITED STATES 3755884 AND BELOW
AUSTRALIA 8013704 AND BELOW
BELGIUM 9035128 AND BELOW
CANADA 7024647 AND BELOWSHAFT,SHEAVE
UNITED STATES 3755884 AND BELOW
AUSTRALIA 8013704 AND BELOW
BELGIUM 9035128 AND BELOW
CANADA 7024647 AND BELOW -
2565869A1 SHAFT ASSEMBLY, SHEAVE
UNITED STATES 3755885 AND UP
AUSTRALIA 8013705 AND UP
BELGIUM 9035129 AND UP
CANADA 7024648 AND UPSHAFT ASSEMBLY, SHEAVE
UNITED STATES 3755885 AND UP
AUSTRALIA 8013705 AND UP
BELGIUM 9035129 AND UP
CANADA 7024648 AND UP -
2674325 BRACKET,MOUNTING-TOP COWL (REAR)
UNITED STATES 4403786 AND BELOW
AUSTRALIA 8039074 AND BELOW
BELGIUM 9122764 AND BELOW
CANADA 7077247 AND BELOWBRACKET,MOUNTING-TOP COWL (REAR)
UNITED STATES 4403786 AND BELOW
AUSTRALIA 8039074 AND BELOW
BELGIUM 9122764 AND BELOW
CANADA 7077247 AND BELOW -
2674325 BRACKET,MOUNTING-TOP COWL (REAR)
UNITED STATES 4403787 AND UP
AUSTRALIA 8039075 AND UP
BELGIUM 9122765 AND UP
CANADA 7077248 AND UPBRACKET,MOUNTING-TOP COWL (REAR)
UNITED STATES 4403787 AND UP
AUSTRALIA 8039075 AND UP
BELGIUM 9122765 AND UP
CANADA 7077248 AND UP -
2710-37562 SCREW,REAR MOUNTING BRACKET TO BOTTOM COWL (1")SCREW,REAR MOUNTING BRACKET TO BOTTOM COWL (1")
-
2857927 MOUNT,RUBBER-REAR MOUNTING BRACKET TO CYLINDER BLOCKMOUNT,RUBBER-REAR MOUNTING BRACKET TO CYLINDER BLOCK
-
2911-8267089 NUT,RUBBER MOUNT TO BRACKET AND CYLINDER BLOCKNUT,RUBBER MOUNT TO BRACKET AND CYLINDER BLOCK
-
3084-60466A8 GROUND WIRE ASS'Y, REAR BRACKET
UNITED STATES 4403786 AND BELOW
AUSTRALIA 8039074 AND BELOW
BELGIUM 9122764 AND BELOW
CANADA 7077247 AND BELOWGROUND WIRE ASS'Y, REAR BRACKET
UNITED STATES 4403786 AND BELOW
AUSTRALIA 8039074 AND BELOW
BELGIUM 9122764 AND BELOW
CANADA 7077247 AND BELOW -
3084-76180 GROUND WIRE ASS'Y REAR BRACKET
UNITED STATES 4403787 AND UP
AUSTRALIA 8039075 AND UP
BELGIUM 9122765 AND UP
CANADA 7077248 AND UPGROUND WIRE ASS'Y REAR BRACKET
UNITED STATES 4403787 AND UP
AUSTRALIA 8039075 AND UP
BELGIUM 9122765 AND UP
CANADA 7077248 AND UP -
3084-76181 GROUND WIRE ASS'Y REAR BRACKET
UNITED STATES 4403787 AND UP
AUSTRALIA 8039075 AND UP
BELGIUM 9122765 AND UP
CANADA 7077248 AND UPGROUND WIRE ASS'Y REAR BRACKET
UNITED STATES 4403787 AND UP
AUSTRALIA 8039075 AND UP
BELGIUM 9122765 AND UP
CANADA 7077248 AND UP -
3110-62568 SCREW,GROUND WIRE TO CYLINDER BLOCK (3/8")SCREW,GROUND WIRE TO CYLINDER BLOCK (3/8")
-
3210-35519 SCREW,GROUND WIRE TO CYLINDER BLOCKSCREW,GROUND WIRE TO CYLINDER BLOCK
-
3364674 BRACKET,MOUNTING-TOP COWL (FRONT)BRACKET,MOUNTING-TOP COWL (FRONT)
-
3410-37562 SCREW,FRONT MOUNTING BRACKET TO BOTTOM COWL (1")SCREW,FRONT MOUNTING BRACKET TO BOTTOM COWL (1")
-
3557927 MOUNT,RUBBER-FRONT MOUNTING BRACKET TO CRANKCASEMOUNT,RUBBER-FRONT MOUNTING BRACKET TO CRANKCASE
-
3611-8267089 NUT,RUBBER MOUNT TO BRACKET AND CRANKCASENUT,RUBBER MOUNT TO BRACKET AND CRANKCASE
-
3750-12066Q10 STARTER CABLE ASSEMBLYSTARTER CABLE ASSEMBLY
-
3830782 HANDLE,STARTER CABLEHANDLE,STARTER CABLE
-
3979470A1 RETAINER,STARTER CABLE AND HANDLERETAINER,STARTER CABLE AND HANDLE
