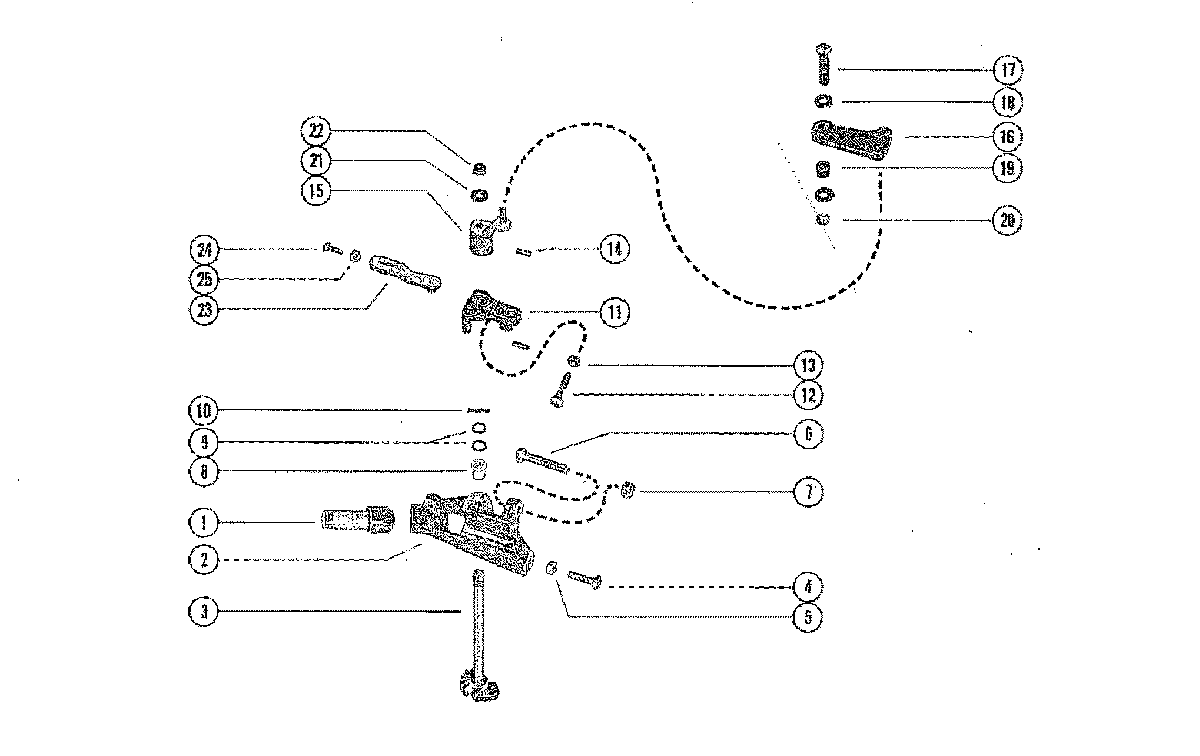

THROTTLE CONTROL LINKAGE для Mercury - 200 3537531 THRU 4709592

  • №
    Артикул
    Название
  • 1
    43-60856 GEAR, PINION - THROTTLE CONTROL
    GEAR, PINION - THROTTLE CONTROL
    450 ₽
  • 2
    76357 HOUSING, THROTTLE CONTROL
    UNITED STATES 4580036 AND BELOW
    AUSTRALIA 8043124 AND BELOW
    BELGIUM 9137349 AND BELOW
    CANADA 7089697 AND BELOW
    HOUSING, THROTTLE CONTROL
    UNITED STATES 4580036 AND BELOW
    AUSTRALIA 8043124 AND BELOW
    BELGIUM 9137349 AND BELOW
    CANADA 7089697 AND BELOW
    0 ₽
  • 2
    76357 HOUSING, THROTTLE CONTROL
    UNITED STATES 4580037 AND UP
    AUSTRALIA 8043125 AND UP
    BELGIUM 9137350 AND UP
    CANADA 7089698 AND UP
    HOUSING, THROTTLE CONTROL
    UNITED STATES 4580037 AND UP
    AUSTRALIA 8043125 AND UP
    BELGIUM 9137350 AND UP
    CANADA 7089698 AND UP
    0 ₽
  • 3
    43-60863 SHAFT AND GEAR, THROTTLE
    SHAFT AND GEAR, THROTTLE
    2 570 ₽
  • 4
    10-20653 SCREW, THROTTLE CONTROL HOUSING FASTENING (1") - LOWER -
    UNITED STATES 4580036 AND BELOW
    AUSTRALIA 8043124 AND BELOW
    BELGIUM 9137349 AND BELOW
    CANADA 7089697 AND BELOW
    SCREW, THROTTLE CONTROL HOUSING FASTENING (1") - LOWER -
    UNITED STATES 4580036 AND BELOW
    AUSTRALIA 8043124 AND BELOW
    BELGIUM 9137349 AND BELOW
    CANADA 7089697 AND BELOW
    150 ₽
  • 5
    11-20184 NUT, THROTTLE CONTROL HOUSING SCREW
    UNITED STATES 4580036 AND BELOW
    AUSTRALIA 8043124 AND BELOW
    BELGIUM 9137349 AND BELOW
    CANADA 7089697 AND BELOW
    NUT, THROTTLE CONTROL HOUSING SCREW
    UNITED STATES 4580036 AND BELOW
    AUSTRALIA 8043124 AND BELOW
    BELGIUM 9137349 AND BELOW
    CANADA 7089697 AND BELOW
    120 ₽
  • 6
    10-21091 SCREW, THROTTLE CONTROL HOUSING FASTENING (1 1/8") - UPPER
    UNITED STATES 4580036 AND BELOW
    AUSTRALIA 8043124 AND BELOW
    BELGIUM 9137349 AND BELOW
    CANADA 7089697 AND BELOW
    SCREW, THROTTLE CONTROL HOUSING FASTENING (1 1/8") - UPPER
    UNITED STATES 4580036 AND BELOW
    AUSTRALIA 8043124 AND BELOW
    BELGIUM 9137349 AND BELOW
    CANADA 7089697 AND BELOW
    0 ₽
  • 7
    11-20184 NUT, THROTTLE CONTROL HOUSING SCREW
    UNITED STATES 4580036 AND BELOW
    AUSTRALIA 8043124 AND BELOW
    BELGIUM 9137349 AND BELOW
    CANADA 7089697 AND BELOW
    NUT, THROTTLE CONTROL HOUSING SCREW
    UNITED STATES 4580036 AND BELOW
    AUSTRALIA 8043124 AND BELOW
    BELGIUM 9137349 AND BELOW
    CANADA 7089697 AND BELOW
    120 ₽
  • 4&6
    10-76213 SCREW, THROTTLE CONTROL HOUSING FASTENING (1 1/8") - LOWER A
    LOWER AND UPPER
    UNITED STATES 4580037 AND UP
    AUSTRALIA 8043125 AND UP
    BELGIUM 9137350 AND UP
    CANADA 7089698 AND UP
    SCREW, THROTTLE CONTROL HOUSING FASTENING (1 1/8") - LOWER A
    LOWER AND UPPER
    UNITED STATES 4580037 AND UP
    AUSTRALIA 8043125 AND UP
    BELGIUM 9137350 AND UP
    CANADA 7089698 AND UP
    150 ₽
  • 8
    23-33462 BUSHING, NYLON - SHAFT AND GEAR (THROTTLE CONTROL HOUSING)
    BUSHING, NYLON - SHAFT AND GEAR (THROTTLE CONTROL HOUSING)
    0 ₽
  • 9
    12-20086 WASHER, THROTTLE SHAFT AND GEAR
    WASHER, THROTTLE SHAFT AND GEAR
    130 ₽
  • 10
    17-36325 PIN, THROTTLE SHAFT AND GEAR
    PIN, THROTTLE SHAFT AND GEAR
    0 ₽
  • 11
    46413 THROTTLE LEVER, VERTICAL SHAFT
    THROTTLE LEVER, VERTICAL SHAFT
    0 ₽
  • 12
    10-22960 SCREW, VERTICAL SHAFT THROTTLE LEVER (1 3/8")
    UNITED STATES 4351589 AND BELOW
    AUSTRALIA 8036049 AND BELOW
    BELGIUM 9104813 AND BELOW
    CANADA 7067847 AND BELOW
    SCREW, VERTICAL SHAFT THROTTLE LEVER (1 3/8")
    UNITED STATES 4351589 AND BELOW
    AUSTRALIA 8036049 AND BELOW
    BELGIUM 9104813 AND BELOW
    CANADA 7067847 AND BELOW
    0 ₽
  • 13
    11-25168 NUT, VERTICAL SHAFT THROTTLE SCREW
    UNITED STATES 4351589 AND BELOW
    AUSTRALIA 8036049 AND BELOW
    BELGIUM 9104813 AND BELOW
    CANADA 7067847 AND BELOW
    NUT, VERTICAL SHAFT THROTTLE SCREW
    UNITED STATES 4351589 AND BELOW
    AUSTRALIA 8036049 AND BELOW
    BELGIUM 9104813 AND BELOW
    CANADA 7067847 AND BELOW
    0 ₽
  • 12
    10-72755 SCREW, VERTICAL SHAFT THROTTLE ELVER (1 3/8")
    UNITED STATES 4351590 AND UP
    AUSTRALIA 8036050 AND UP
    BELGIUM 9104814 AND UP
    CANADA 7067848 AND UP
    SCREW, VERTICAL SHAFT THROTTLE ELVER (1 3/8")
    UNITED STATES 4351590 AND UP
    AUSTRALIA 8036050 AND UP
    BELGIUM 9104814 AND UP
    CANADA 7067848 AND UP
    0 ₽
  • 13
    11-29598 NUT, VERTICAL SHAFT THROTTLE ELVER SCREW
    UNITED STATES 4351590 AND UP
    AUSTRALIA 8036050 AND UP
    BELGIUM 9104814 AND UP
    CANADA 7067848 AND UP
    NUT, VERTICAL SHAFT THROTTLE ELVER SCREW
    UNITED STATES 4351590 AND UP
    AUSTRALIA 8036050 AND UP
    BELGIUM 9104814 AND UP
    CANADA 7067848 AND UP
    150 ₽
  • 14
    17-24865 PIN, GROOVE - STATOR PLATE LEVER TO VERTICAL SHAFT
    PIN, GROOVE - STATOR PLATE LEVER TO VERTICAL SHAFT
    0 ₽
  • 15
    60864 LEVER, STATOR PLATE - VERTICAL SHAFT
    LEVER, STATOR PLATE - VERTICAL SHAFT
    0 ₽
  • 16
    64631 LEVER, STATOR PLATE CONTROL
    LEVER, STATOR PLATE CONTROL
    0 ₽
  • 17
    10-22659 SCREW, STARTER HOUSING TO CRANKCASE (1 5/8")
    SCREW, STARTER HOUSING TO CRANKCASE (1 5/8")
    0 ₽
  • 17
    10-72754 SCREW, STARTER HOUSING TO CRANKCASE (1 5/8")
    SCREW, STARTER HOUSING TO CRANKCASE (1 5/8")
    0 ₽
  • 18
    12-71055 WASHER, STARTER HOUSING SCREW (PART OF STARTER HOUSING ASSEMBLY)
    WASHER, STARTER HOUSING SCREW (PART OF STARTER HOUSING ASSEMBLY)
    130 ₽
  • 19
    23-46406 BUSHING, STATOR PLATE CONTROL LEVER
    BUSHING, STATOR PLATE CONTROL LEVER
    0 ₽
  • 20
    11-8267089 NUT, STARTER HOUSING TO CRANKCASE SCREW
    UNITED STATES 4351589 AND BELOW
    AUSTRALIA 8036049 AND BELOW
    BELGIUM 9104813 AND BELOW
    CANADA 7067847 AND BELOW
    NUT, STARTER HOUSING TO CRANKCASE SCREW
    UNITED STATES 4351589 AND BELOW
    AUSTRALIA 8036049 AND BELOW
    BELGIUM 9104813 AND BELOW
    CANADA 7067847 AND BELOW
    100 ₽
  • 20
    11-35888 NUT, STARTER HOUSING TO CRANKCASE SCREW
    UNITED STATES 4351590 AND UP
    AUSTRALIA 8036050 AND UP
    BELGIUM 9104814 AND UP
    CANADA 7067848 AND UP
    NUT, STARTER HOUSING TO CRANKCASE SCREW
    UNITED STATES 4351590 AND UP
    AUSTRALIA 8036050 AND UP
    BELGIUM 9104814 AND UP
    CANADA 7067848 AND UP
    490 ₽
  • 21
    12-24664 WASHER, SHAFT AND GEAR
    WASHER, SHAFT AND GEAR
    70 ₽
  • 22
    11-826709109 NUT, SHAFT AND GEAR
    NUT, SHAFT AND GEAR
    220 ₽
  • 23
    46405 LINK, THROTTLE CLUSTER
    LINK, THROTTLE CLUSTER
    0 ₽
  • 24
    10-69011 SCREW, THROTTLE CLUSTER LINK (7/8")
    SCREW, THROTTLE CLUSTER LINK (7/8")
    140 ₽
  • 25
    11-68219 NUT, JAM - THROTTLE CLUSTER LINK SCREW
    NUT, JAM - THROTTLE CLUSTER LINK SCREW
    50 ₽
