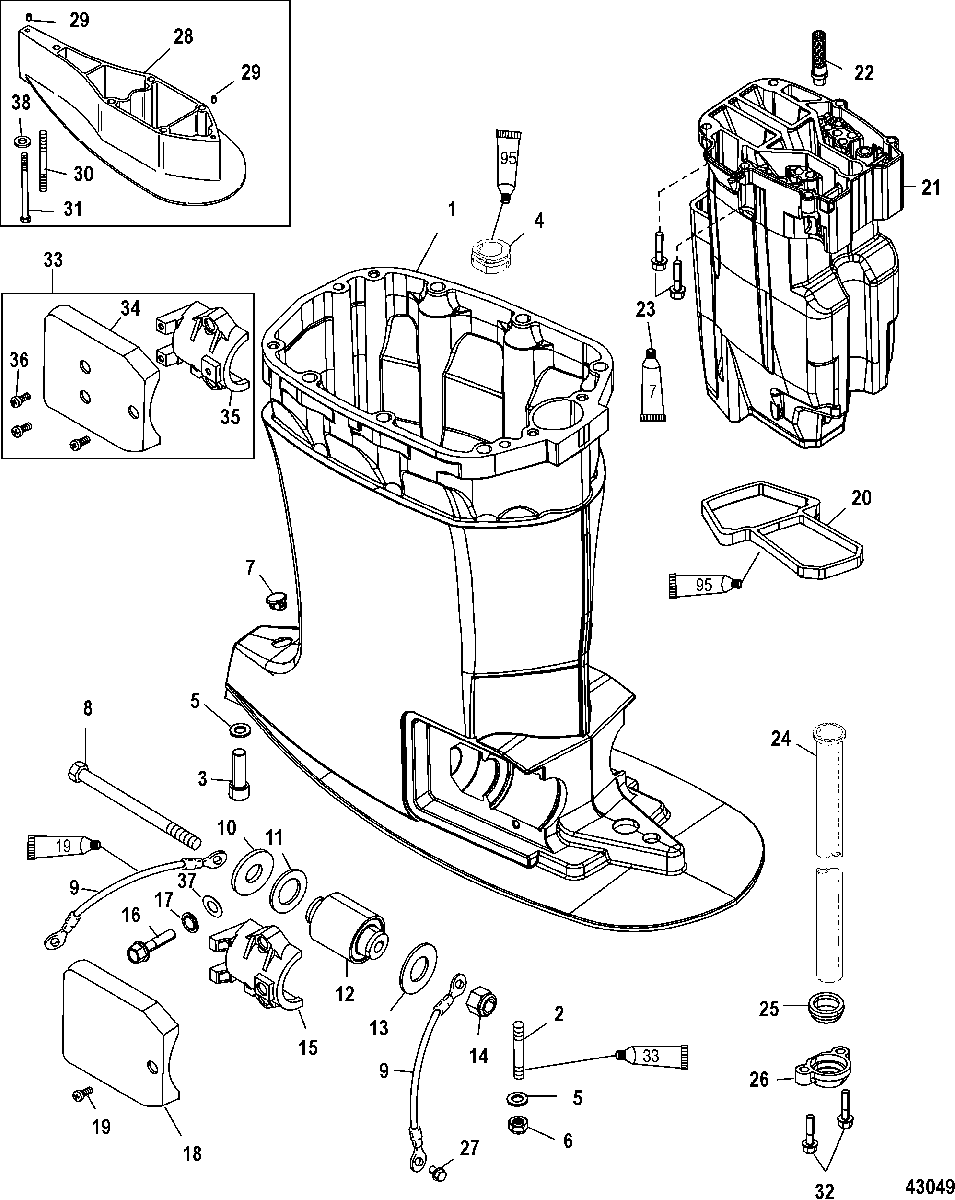

Driveshaft Housing and Exhaust Tube для Mercury - 225 (DFI) 3.0L 1B504989 & Up
-
№АртикулНазвание
-
13518-832937A06 HOUSING ASSEMBLY, Driveshaft - LongHOUSING ASSEMBLY, Driveshaft - Long
-
13519-832938A06 HOUSING ASSEMBLY, Driveshaft - X/XX-LongHOUSING ASSEMBLY, Driveshaft - X/XX-Long
-
216-8M0070951 STUD, (M12 x 52)
Long/X-LongSTUD, (M12 x 52)
Long/X-Long -
310-8M0102995 SCREW, (M12 x 35 MM)
Long/X-LongSCREW, (M12 x 35 MM)
Long/X-Long -
425-8331231 GROMMETGROMMET
-
512-856982 WASHER, (.500 x .810 x .090) Stainless SteelWASHER, (.500 x .810 x .090) Stainless Steel
-
611-896895 NUT, (M12)NUT, (M12)
-
719-64649 PLUGPLUG
-
810-898834 BOLT, (M14 x 178)BOLT, (M14 x 178)
-
988238A10 CABLE ASSEMBLY, GroundCABLE ASSEMBLY, Ground
-
1012-815432 WASHER, (.562 x 2.00 x .125)WASHER, (.562 x 2.00 x .125)
-
1112-8154331 WASHER, (1.25 x 2.00 x .19)WASHER, (1.25 x 2.00 x .19)
-
128137711 MOUNTMOUNT
-
1312-825190 WASHERWASHER
-
1411-896602 NUT, (M14)NUT, (M14)
-
15879150A90 CLAMP, When Depleted Order Design II Kit 879150A90
Design I SN# 1B775625 & BelowCLAMP, When Depleted Order Design II Kit 879150A90
Design I SN# 1B775625 & Below -
1610-81893435 SCREW, (M8 x 35)SCREW, (M8 x 35)
-
1713-72521 LOCKWASHER, Internal ToothLOCKWASHER, Internal Tooth
-
18879150A90 COVER, Lower Mount, When Depleted Order Design II Kit 879150A90
Design I SN# 1B775625 & BelowCOVER, Lower Mount, When Depleted Order Design II Kit 879150A90
Design I SN# 1B775625 & Below -
1910-69079 SCREW, (#10-16 x .440)
Design ISCREW, (#10-16 x .440)
Design I -
208329321 SEALSEAL
-
21833116A19 TUBE ASSEMBLY, ExhaustTUBE ASSEMBLY, Exhaust
-
2235-8M0026113 STRAINERSTRAINER
-
2310-81893435 SCREW, (M8 x 35)SCREW, (M8 x 35)
-
2432-8M0042785 TUBE, Water
LongTUBE, Water
Long -
2432-8M0042786 TUBE, Water
X-LongTUBE, Water
X-Long -
2432-8M0042787 TUBE, Water
XX-LongTUBE, Water
XX-Long -
25832940001 SEALSEAL
-
268329391 CLAMPCLAMP
-
2710-41508 SCREW, (.250-20 x .500) Stainless SteelSCREW, (.250-20 x .500) Stainless Steel
-
288M0105088 SPACER
XX-LongSPACER
XX-Long -
2917-43044 PIN, Dowel - Without Hole (.375 x .625)
XX-LongPIN, Dowel - Without Hole (.375 x .625)
XX-Long -
3016-8M0008047 STUD, (M12 x 179)
XX-LongSTUD, (M12 x 179)
XX-Long -
3110-857137 SCREW, (M12 x 160)
XX-LongSCREW, (M12 x 160)
XX-Long -
3210-81893435 SCREW, (M8 x 35)SCREW, (M8 x 35)
-
33879150A90 COVER KIT, Lower Mount
Design II SN# 1B775625 & BelowCOVER KIT, Lower Mount
Design II SN# 1B775625 & Below -
34100-8M0148785 COVER, Lower Mount
Design II SN# 1B775626 & UpCOVER, Lower Mount
Design II SN# 1B775626 & Up -
35100-8M4501003 CLAMP
Design II SN# 1B775626 & UpCLAMP
Design II SN# 1B775626 & Up -
3610-69079 SCREW, (#10-16 x .440)
Design II SN# 1B775626 & UpSCREW, (#10-16 x .440)
Design II SN# 1B775626 & Up -
3712-847541 WASHERWASHER
-
3812-856982 WASHER, (.500 x .810 x .090) Stainless SteelWASHER, (.500 x .810 x .090) Stainless Steel
