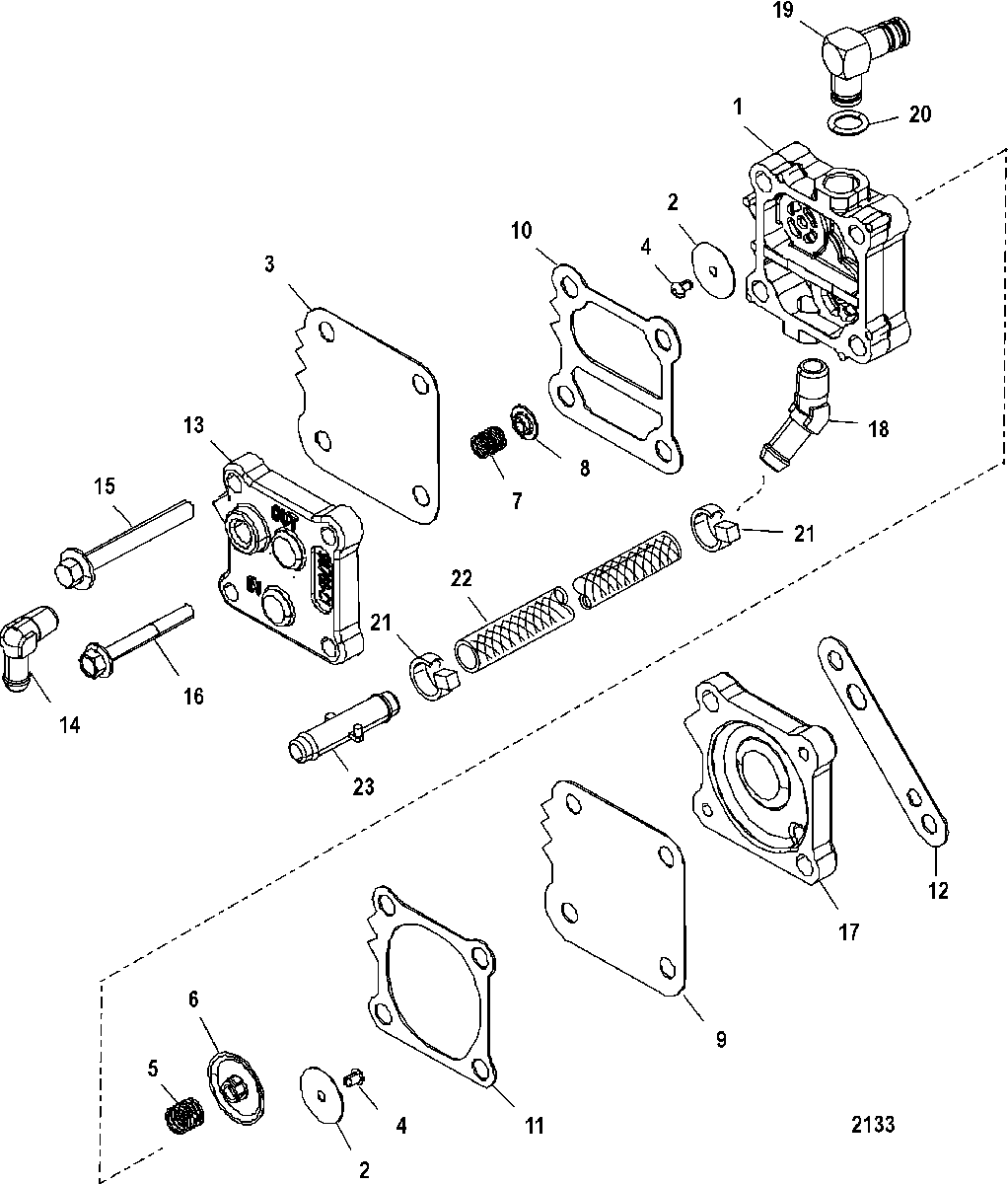

Fuel Pump для Mercury - 225 (DFI) 3.0L 1B504989 & Up
-
№АртикулНазвание
-
-14360T74 PUMP ASSEMBLY, FuelPUMP ASSEMBLY, Fuel
-
1NSS NOT SOLD SEPARATE, Fuel PumpNOT SOLD SEPARATE, Fuel Pump
-
221-857005A1 DIAPHRAGM KITDIAPHRAGM KIT
-
3NSS NOT SOLD SEPARATE, DiaphragmNOT SOLD SEPARATE, Diaphragm
-
4NSS NOT SOLD SEPARATE, RetainerNOT SOLD SEPARATE, Retainer
-
5NSS NOT SOLD SEPARATE, SpringNOT SOLD SEPARATE, Spring
-
6NSS NOT SOLD SEPARATE, CapNOT SOLD SEPARATE, Cap
-
7NSS NOT SOLD SEPARATE, SpringNOT SOLD SEPARATE, Spring
-
8NSS NOT SOLD SEPARATE, CapNOT SOLD SEPARATE, Cap
-
9NSS NOT SOLD SEPARATE, DiaphragmNOT SOLD SEPARATE, Diaphragm
-
10NSS NOT SOLD SEPARATE, Gasket-BoostNOT SOLD SEPARATE, Gasket-Boost
-
11NSS NOT SOLD SEPARATE, Gasket-PulseNOT SOLD SEPARATE, Gasket-Pulse
-
1227-987691 GASKETGASKET
-
13987752 PLATEPLATE
-
1422-996642 FITTING, Elbow 90 Degree (.125-27 x .250) NylonFITTING, Elbow 90 Degree (.125-27 x .250) Nylon
-
1510-82104540 SCREW, (M5 x 40), Fuel PumpSCREW, (M5 x 40), Fuel Pump
-
1610-82130050 SCREW, (M6 x 50), Pump to crankcaseSCREW, (M6 x 50), Pump to crankcase
-
17144303 BASEBASE
-
1822-782792 FITTING, Elbow 45 Degree (1.25)FITTING, Elbow 45 Degree (1.25)
-
1922-888493 ELBOWELBOW
-
2025-805063 O-RING, (.301 x .070)O-RING, (.301 x .070)
-
2154-816311T TIE STRAP, (8.00 Inches)TIE STRAP, (8.00 Inches)
-
2232-8M0043979 HOSE AND SLEEVE ASSEMBLY, (18.00 Inches)HOSE AND SLEEVE ASSEMBLY, (18.00 Inches)
-
2322-822769 CONNECTORCONNECTOR
-
-27-832934A00 GASKET SET, Powerhead
200/225/200 Pro XSGASKET SET, Powerhead
200/225/200 Pro XS -
-27-841220A03 GASKET SET, Powerhead
250GASKET SET, Powerhead
250 -
-854198A07 POWERHEAD ASSEMBLY
200/200 Pro XSPOWERHEAD ASSEMBLY
200/200 Pro XS -
-877869A07 POWERHEAD ASSEMBLY
225POWERHEAD ASSEMBLY
225 -
-61-843034A07 POWERHEAD ASSEMBLY
250POWERHEAD ASSEMBLY
250
