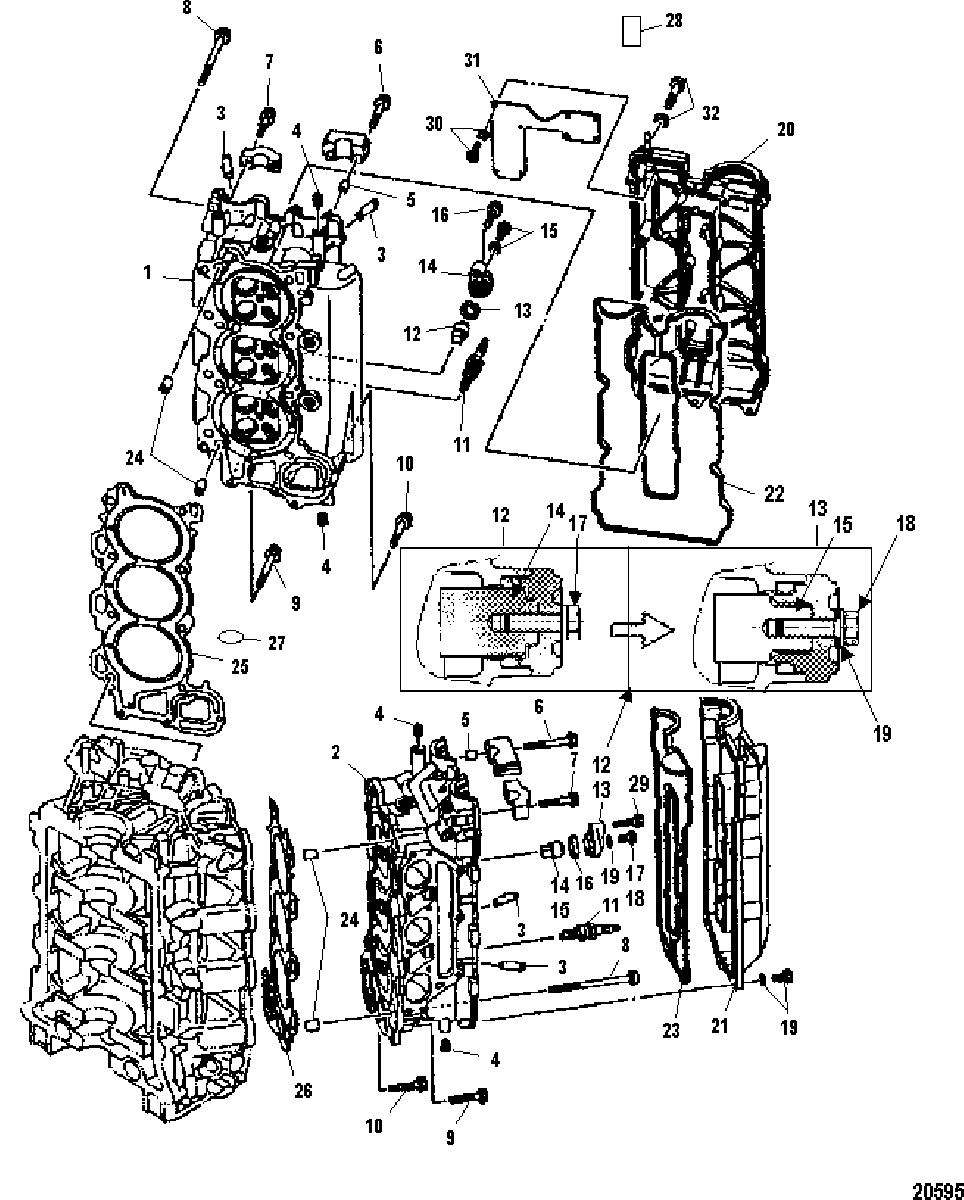

Cylinder Head для Mercury - 225 EFI (4-STROKE) 0T653945 & Up

№

Артикул

Название
1

900-887844T03 CYLINDER HEAD ASSEMBLY
SN# 1B055687 & Below

CYLINDER HEAD ASSEMBLY
SN# 1B055687 & Below

229 400 ₽
1

900-887844T03 CYLINDER HEAD ASSEMBLY
SN# 1B055688 & Up

CYLINDER HEAD ASSEMBLY
SN# 1B055688 & Up

229 400 ₽
2

900-887845T03 CYLINDER HEAD ASSEMBLY
SN# 1B055687 & Below

CYLINDER HEAD ASSEMBLY
SN# 1B055687 & Below

233 980 ₽
2

900-887845T03 CYLINDER HEAD ASSEMBLY
SN# 1B055688 & Up

CYLINDER HEAD ASSEMBLY
SN# 1B055688 & Up

233 980 ₽
3

887846 GUIDE

GUIDE

9 460 ₽
4

19-804111 PLUG

PLUG

150 ₽
5

17-804113 PIN, Dowel

PIN, Dowel

200 ₽
6

10-804112 BOLT, (M7 x 48)

BOLT, (M7 x 48)

110 ₽
7

10-804114 BOLT, (M7 x 37)

BOLT, (M7 x 37)

210 ₽
8

10-887849 SCREW

SCREW

880 ₽
9

10-881312 BOLT, (M8 x 55)

BOLT, (M8 x 55)

340 ₽
10

10-887850 BOLT

BOLT

420 ₽
11

33-859495Q SPARK PLUG, (NGK-LFR5A-11)

SPARK PLUG, (NGK-LFR5A-11)

1 280 ₽
12

887847A01 COVER
(Use with Design I Anode)

COVER
(Use with Design I Anode)

5 520 ₽
13

887847A01 COVER/ANODE KIT
(Use with Design II Anode)

COVER/ANODE KIT
(Use with Design II Anode)

5 520 ₽
14

887847A01 ANODE
SN# 1B055687 & Below

ANODE
SN# 1B055687 & Below

5 520 ₽
14

887847A01 ANODE
(Design I) SN# 1B055688 & Up

ANODE
(Design I) SN# 1B055688 & Up

5 520 ₽
15

97-804079002 ANODE (Included With Rererence #13)
(Design II)

ANODE (Included With Rererence #13)
(Design II)

1 650 ₽
16

25-804086 GROMMET (Included With Rererence #13)

GROMMET (Included With Rererence #13)

550 ₽
17

10-8524741 BOLT, (M6 x 20)
(Use with Design I Anode)

BOLT, (M6 x 20)
(Use with Design I Anode)

140 ₽
18

10-84830M BOLT (Included With Rererence #13)
(Use with Design II Anode)

BOLT (Included With Rererence #13)
(Use with Design II Anode)

130 ₽
19

27-95610 GASKET (Included With Rererence #13)
(Use with Design II Anode)

GASKET (Included With Rererence #13)
(Use with Design II Anode)

810 ₽
20

887851T COVER (Starboard)

COVER (Starboard)

29 860 ₽
21

887854T COVER (Port)

COVER (Port)

26 680 ₽
22

27-887853 GASKET (Starboard)

GASKET (Starboard)

6 040 ₽
23

27-887855 GASKET (Port)

GASKET (Port)

5 400 ₽
24

23-8M0070515 COLLAR

COLLAR

200 ₽
25

27-887848002 GASKET (Starboard)

GASKET (Starboard)

18 720 ₽
26

27-887848003 GASKET (Port)

GASKET (Port)

19 190 ₽
27

25-888262001 GROMMET, Water Shutter

GROMMET, Water Shutter

950 ₽
28

NSS NOT SOLD SEPARATE, Decal-Engine Oil/Valve Clearance

NOT SOLD SEPARATE, Decal-Engine Oil/Valve Clearance

0 ₽
29

10-881431 BOLT, (M8 x 40)

BOLT, (M8 x 40)

330 ₽
30

10-804120 SCREW, (M4 x 8)

SCREW, (M4 x 8)

110 ₽
31

887852 PLATE

PLATE

800 ₽
32

10-858530 BOLT, (M6 x 30)

BOLT, (M6 x 30)

90 ₽
-

900-887844T07 CYLINDER HEAD ASSEMBLY
(Starboard) SN# 1B055687 & Below

CYLINDER HEAD ASSEMBLY
(Starboard) SN# 1B055687 & Below

430 730 ₽
-

900-887844T07 CYLINDER HEAD ASSEMBLY
(Starboard) SN# 1B055688 THRU 1B226999

CYLINDER HEAD ASSEMBLY
(Starboard) SN# 1B055688 THRU 1B226999

430 730 ₽
-

900-887844T07 CYLINDER HEAD ASSEMBLY
(Starboard) SN# 1B227000 & Up

CYLINDER HEAD ASSEMBLY
(Starboard) SN# 1B227000 & Up

430 730 ₽
-

900-887845T07 CYLINDER HEAD ASSEMBLY
(Port) SN# 1B055687 & Below

CYLINDER HEAD ASSEMBLY
(Port) SN# 1B055687 & Below

584 580 ₽
-

900-887845T07 CYLINDER HEAD ASSEMBLY
(Port) SN# 1B055688 THRU 1B226999

CYLINDER HEAD ASSEMBLY
(Port) SN# 1B055688 THRU 1B226999

584 580 ₽
-

900-887845T07 CYLINDER HEAD ASSEMBLY
(Port) SN# 1B227000 & Up

CYLINDER HEAD ASSEMBLY
(Port) SN# 1B227000 & Up

584 580 ₽
-

885225T07 POWERHEAD ASSEMBLY
SN# 1B055687 & Below

POWERHEAD ASSEMBLY
SN# 1B055687 & Below

1 150 000 ₽
-

885225T07 POWERHEAD ASSEMBLY
SN# 1B055688 THRU 1B226999

POWERHEAD ASSEMBLY
SN# 1B055688 THRU 1B226999

1 150 000 ₽
-

885225T07 POWERHEAD ASSEMBLY
SN# 1B227000 & Up

POWERHEAD ASSEMBLY
SN# 1B227000 & Up

1 150 000 ₽
-

27-887810A03 GASKET SET, Powerhead
SN# 0T807875 & Below

GASKET SET, Powerhead
SN# 0T807875 & Below

90 660 ₽
-

27-887810A04 GASKET SET, Powerhead
SN# 0T807876 THRU 1B055687

GASKET SET, Powerhead
SN# 0T807876 THRU 1B055687

100 020 ₽
-

27-887810A05 GASKET SET, Powerhead
SN# 1B055688 & Up

GASKET SET, Powerhead
SN# 1B055688 & Up

105 990 ₽
