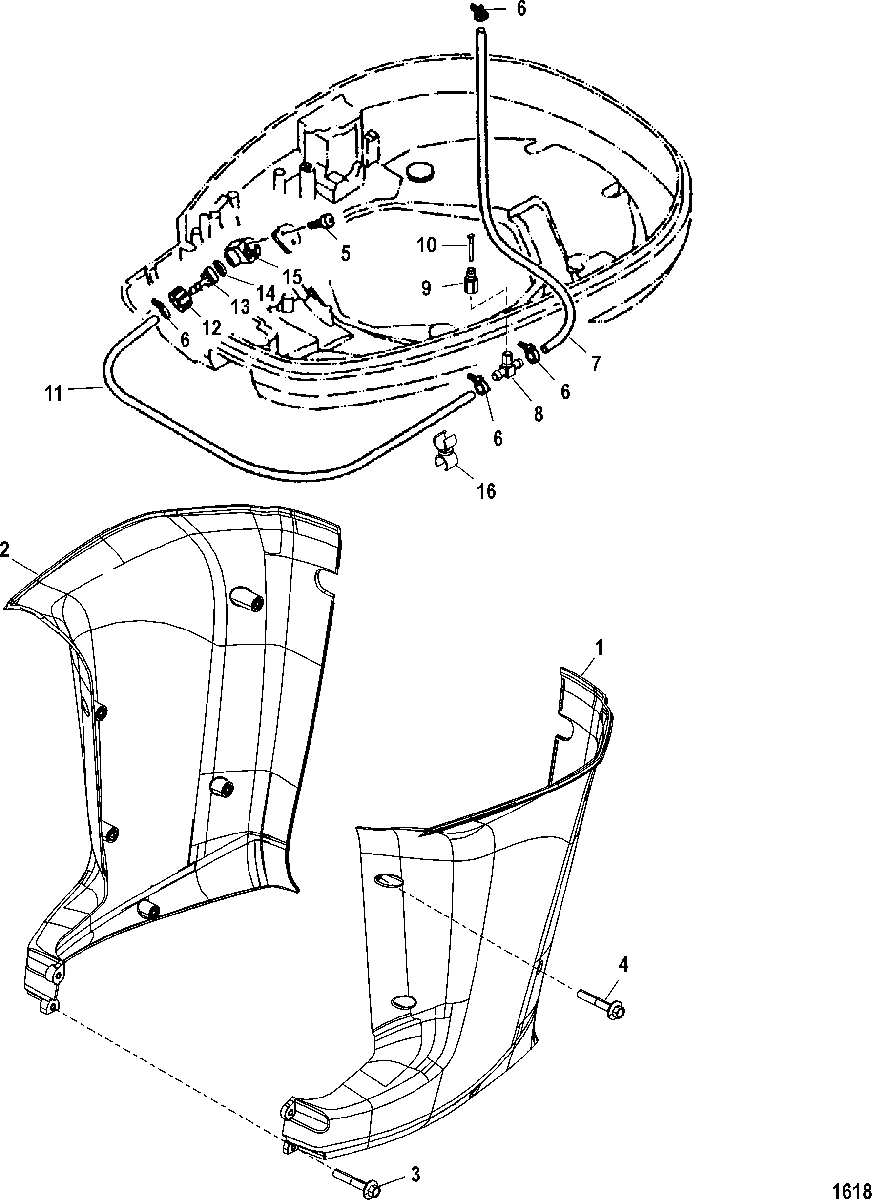

Lower Cowling для Mercury - 225 EFI (4-STROKE) 0T653945 & Up
-
№АртикулНазвание
-
1887915T01 COWLING, Lower (Port)
SN# 1B055687 & BelowCOWLING, Lower (Port)
SN# 1B055687 & Below -
1887915T01 COWLING, Lower (Port)
SN# 1B055688 & UpCOWLING, Lower (Port)
SN# 1B055688 & Up -
2887914T01 COWLING, Lower (Starboard)
SN# 1B055687 & BelowCOWLING, Lower (Starboard)
SN# 1B055687 & Below -
2887914T01 COWLING, Lower (Starboard)
SN# 1B055688 & UpCOWLING, Lower (Starboard)
SN# 1B055688 & Up -
310-88797120 SCREW, (M6 x 20)SCREW, (M6 x 20)
-
410-88797135 SCREW, (M6 x 35)SCREW, (M6 x 35)
-
510-888372 SCREWSCREW
-
656762 CLAMPCLAMP
-
732-8883681 HOSEHOSE
-
822-8585531 CONNECTORCONNECTOR
-
922-892403 FITTING
SN# 1B055687 & BelowFITTING
SN# 1B055687 & Below -
922-892403 FITTING
SN# 1B055688 & UpFITTING
SN# 1B055688 & Up -
1022-859732 PLUGPLUG
-
1132-8883681 HOSEHOSE
-
1222-888370 FITTINGFITTING
-
1322-8883701 FITTINGFITTING
-
1427-888371 GASKETGASKET
-
1522-888369 FITTINGFITTING
-
1654-888588 CLAMPCLAMP
