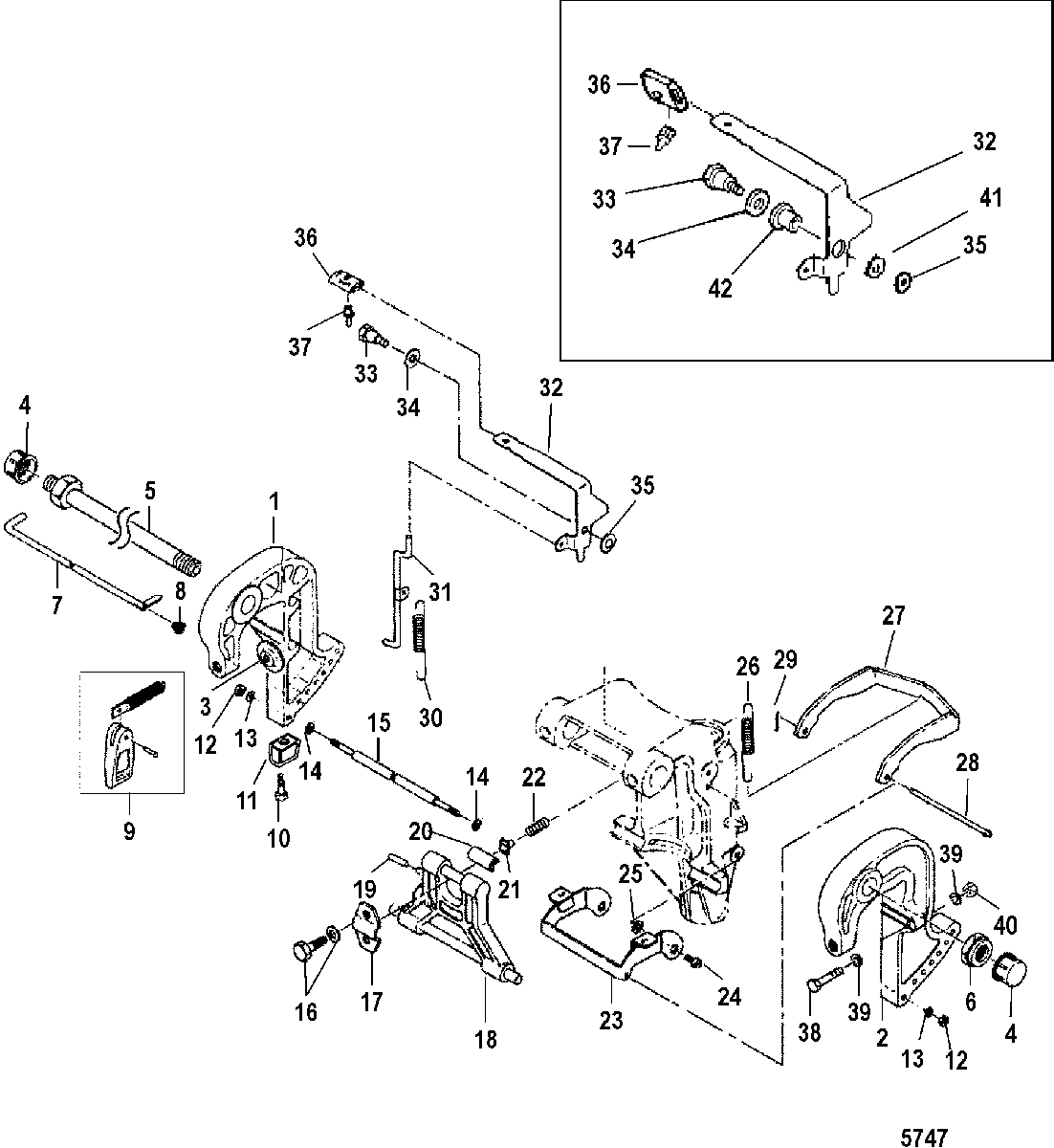

Clamp Bracket для Mercury - 25 (2 CYL.) (International) 0N018456 THRU 0N055504
-
№АртикулНазвание
-
18M0047037 CLAMP BRACKET, Starboard, Black, 1/2 Inch ThreadCLAMP BRACKET, Starboard, Black, 1/2 Inch Thread
-
28M0047051 CLAMP BRACKET, Port, Black, 1/2 Inch ThreadCLAMP BRACKET, Port, Black, 1/2 Inch Thread
-
312-95379 PADPAD
-
411-85372214 CAP NUTCAP NUT
-
5898101191 TILT TUBETILT TUBE
-
611-853722029 NUTNUT
-
7898101207 PIN, TiltPIN, Tilt
-
824-8126455 SPRINGSPRING
-
910-8M0060116 THUMB SCREW ASSEMBLY, 1/2 Inch Thread SizeTHUMB SCREW ASSEMBLY, 1/2 Inch Thread Size
-
1010-167051 BOLT, (M6 x 20)BOLT, (M6 x 20)
-
1197-823913Q ANODEANODE
-
1211-400212 NUT, (M6) Stainless SteelNUT, (M6) Stainless Steel
-
1313-400256 LOCKWASHER, (M6)LOCKWASHER, (M6)
-
1412-16826 WASHER, Stainless SteelWASHER, Stainless Steel
-
15853796 PIN, SpacerPIN, Spacer
-
1610-8230426 BOLTBOLT
-
17879194006 SET PLATESET PLATE
-
18898101208 STOPPER, Tilt
SN# 0N038481 & BelowSTOPPER, Tilt
SN# 0N038481 & Below -
18898101208 STOPPER, Tilt
SN# 0N038482 & UpSTOPPER, Tilt
SN# 0N038482 & Up -
1917-9521810 PIN, RollPIN, Roll
-
208251131 BRACKETBRACKET
-
21853774 STOPSTOP
-
2224-953832 SPRINGSPRING
-
23162132 ARM, Reverse LockARM, Reverse Lock
-
2410-879194007 SCREW
SN# 0N026639 & BelowSCREW
SN# 0N026639 & Below -
2410-879194007 SCREW
SN# 0N026640 & UpSCREW
SN# 0N026640 & Up -
2512-953921 WASHER, Stainless SteelWASHER, Stainless Steel
-
2624-953834 SPRING
(Short)SPRING
(Short) -
2624-879194008 SPRING
(Long/X-Long/XX-Long) SN# 0N021906 & BelowSPRING
(Long/X-Long/XX-Long) SN# 0N021906 & Below -
2624-879194008 SPRING
(Long/X-Long/XX-Long) SN# 0N021907 & UpSPRING
(Long/X-Long/XX-Long) SN# 0N021907 & Up -
27162131 ARM, Reverse LockARM, Reverse Lock
-
288537474 ROD, Reverse LockROD, Reverse Lock
-
2918-8150261 COTTER PINCOTTER PIN
-
3024-953833 SPRINGSPRING
-
318537475 LINK, Reverse LockLINK, Reverse Lock
-
328M0074784 LEVER, Reverse LockLEVER, Reverse Lock
-
3310-162612 BOLTBOLT
-
3413-17641 WAVE WASHERWAVE WASHER
-
3512-953921 WASHER, Stainless SteelWASHER, Stainless Steel
-
36853775 GRIPGRIP
-
378M0051399 BUTTONBUTTON
-
3810-879194310 BOLTBOLT
-
3912-16192 WASHERWASHER
-
4011-400212 NUT, (M6) Stainless SteelNUT, (M6) Stainless Steel
