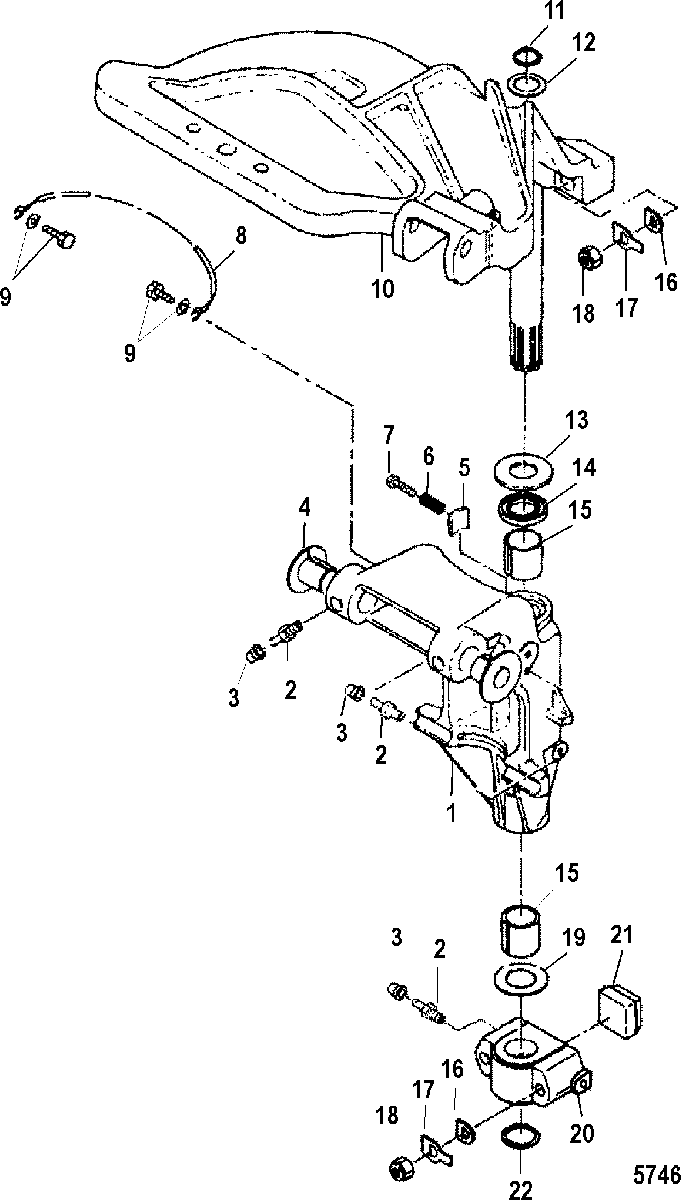

Swivel Bracket для Mercury - 25 (2 CYL.) (International) 0N018456 THRU 0N055504
-
№АртикулНазвание
-
13407-813029T23 SWIVEL BRACKETSWIVEL BRACKET
-
222-824969 FITTING, GreaseFITTING, Grease
-
3808599 CAPCAP
-
423-8537435 BUSHINGBUSHING
-
5162052 FRICTION PLATEFRICTION PLATE
-
624-953831 SPRINGSPRING
-
710-4000354 SCREW, (M8 x 30)SCREW, (M8 x 30)
-
884-898101089 GROUND WIRE
SN# 0N052887 & BelowGROUND WIRE
SN# 0N052887 & Below -
884-898101089 WIRE, Ground
SN# 0N052888 & UpWIRE, Ground
SN# 0N052888 & Up -
910-8230427 BOLT, (M6 x 12)BOLT, (M6 x 12)
-
10853770T01 SHAFT ASSEMBLY, SteeringSHAFT ASSEMBLY, Steering
-
1153-8537141 C CLIPC CLIP
-
1212-879194002 WASHERWASHER
-
13162041 THRUST PLATE, UpperTHRUST PLATE, Upper
-
1426-8537076 SEAL, OilSEAL, Oil
-
1523-8537436 BUSHINGBUSHING
-
1612-162382 WASHERWASHER
-
178537721 LOCK PLATELOCK PLATE
-
1811-85372215 NUTNUT
-
1916204004 THRUST PLATE, LowerTHRUST PLATE, Lower
-
20853786 YOKE, BottomYOKE, Bottom
-
218537731 BUMPERBUMPER
-
2253-8537142 C-RINGC-RING
