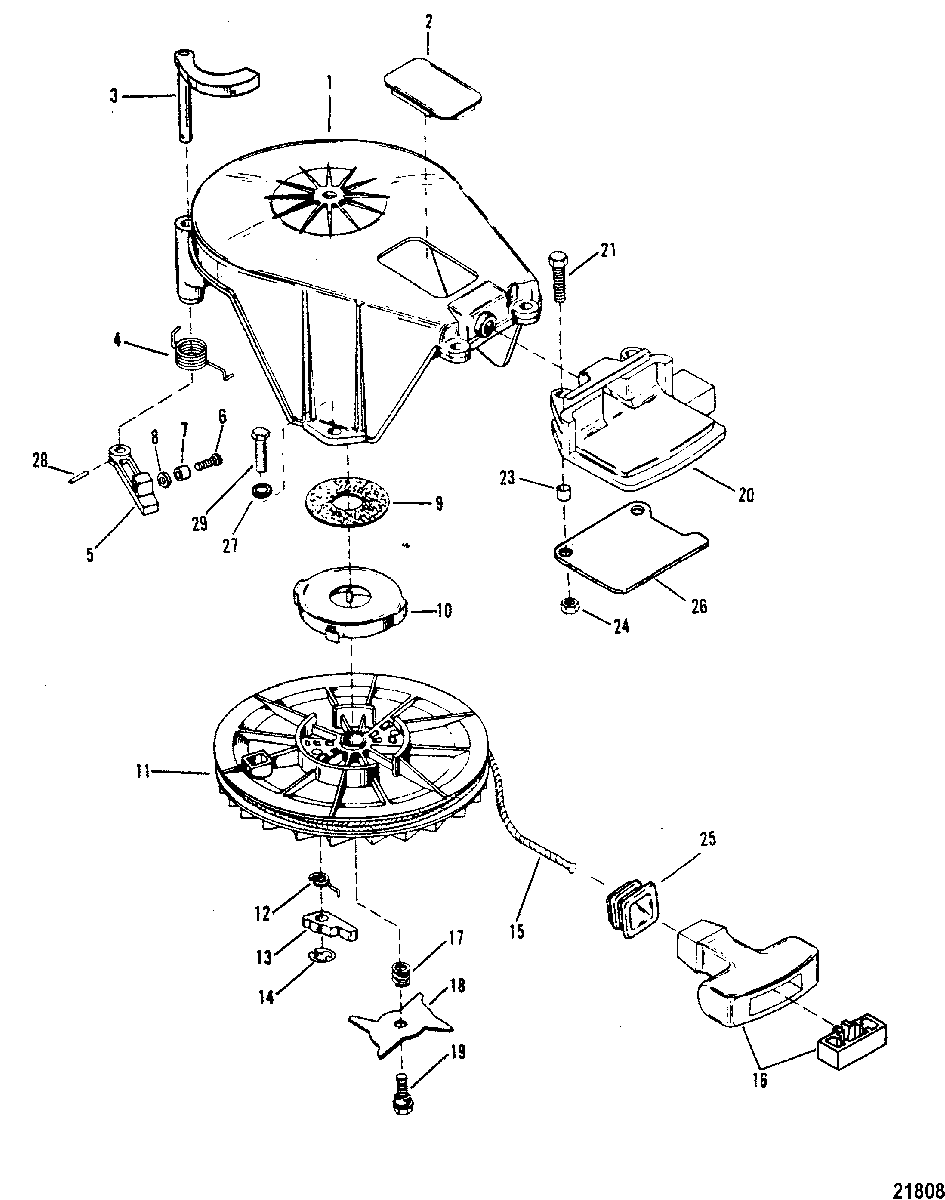

Recoil Starter Assembly(MANUAL) для Mercury - 25, 25 SEA PRO, SUPER 15 (2 CYL.) 0A730007 & Up
-
№АртикулНазвание
-
186689A5 HOUSING ASSEMBLY, Starter, STARTERHOUSING ASSEMBLY, Starter, STARTER
-
286971 COVER, STARTER HOUSING (EARLY MODELS)COVER, STARTER HOUSING (EARLY MODELS)
-
3858925 LEVER, LOCK (UPPER)LEVER, LOCK (UPPER)
-
424-12734 SPRING, UPPER LOCK LEVERSPRING, UPPER LOCK LEVER
-
593876T02 LEVER, LOCK (LOWER)LEVER, LOCK (LOWER)
-
610-92799 SCREW, (#10-16 x 1.12), LOWER LOCK LEVER
(20/25)SCREW, (#10-16 x 1.12), LOWER LOCK LEVER
(20/25) -
610-92051 SCREW, (10-16 x .75)
(SeaPro/Marathon 25/Super 15)SCREW, (10-16 x .75)
(SeaPro/Marathon 25/Super 15) -
723-818142 BUSHING
(SeaPro/Marathon 25/Super 15)BUSHING
(SeaPro/Marathon 25/Super 15) -
812-89302 WASHER, (.203 x .406 x .040)
(SeaPro/Marathon 25/Super 15)WASHER, (.203 x .406 x .040)
(SeaPro/Marathon 25/Super 15) -
9833161T PAD, FELTPAD, FELT
-
1024-86857T01 SPRING, STARTERSPRING, STARTER
-
1150-825269T01 SHEAVE, STARTERSHEAVE, STARTER
-
1224-86851T02 SPRING, CAMSPRING, CAM
-
13868501 CAMCAM
-
1453-86849T01 RING, Retaining, CAMRING, Retaining, CAM
-
1550-12066Q10 ROPE, STARTERROPE, STARTER
-
1685174A1 HANDLE ASSEMBLY, STARTER ROPEHANDLE ASSEMBLY, STARTER ROPE
-
1724-868523 SPRING, CAMSPRING, CAM
-
1886853T01 CAMCAM
-
1910-826253 SCREW, CAM TO STARTER SHEAVESCREW, CAM TO STARTER SHEAVE
-
20426264 SUPPORT, STARTER HANDLESUPPORT, STARTER HANDLE
-
2110-40019111 SCREW, (M5 x 35), SUPPORT TO STARTER HOUSINGSCREW, (M5 x 35), SUPPORT TO STARTER HOUSING
-
2323-309772 SPACER, SUPPORT SCREWSPACER, SUPPORT SCREW
-
2411-401385 NUT, (M5), SUPPORT SCREWNUT, (M5), SUPPORT SCREW
-
2544180 BUSHING, RopeBUSHING, Rope
-
26856154T01 SUPPORTSUPPORT
-
2712-23538 WASHERWASHER
-
2817-38489 PIN, Roll, LOCK LEVERPIN, Roll, LOCK LEVER
-
2910-8M4503518 SCREW, (M6 x 20) Stainless Steel, STARTER HOUSING ATTACHINGSCREW, (M6 x 20) Stainless Steel, STARTER HOUSING ATTACHING
-
2910-40011131 SCREW, (M6 x 35) Stainless Steel, STARTER HOUSING ATTACHINGSCREW, (M6 x 35) Stainless Steel, STARTER HOUSING ATTACHING
