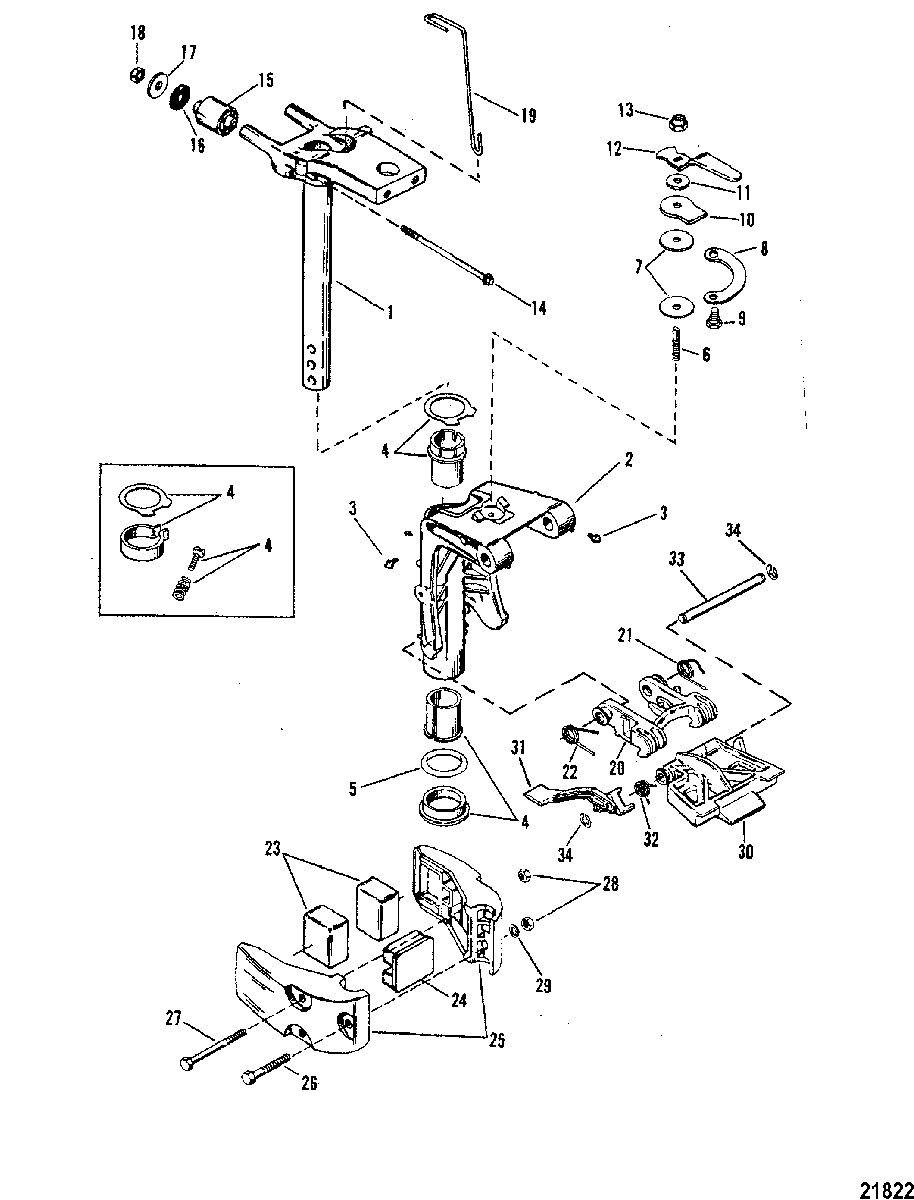

Swivel Bracket Assembly для Mercury - 25, 25 SEA PRO, SUPER 15 (2 CYL.) 0A730007 & Up
-
№АртикулНазвание
-
1822238A9 SWIVEL HEAD (BLACK)
DESIGN I - CO-PILOTSWIVEL HEAD (BLACK)
DESIGN I - CO-PILOT -
1822238A9 SWIVEL HEAD (GRAY)
DESIGN I - CO-PILOTSWIVEL HEAD (GRAY)
DESIGN I - CO-PILOT -
23415-822237A3 SWIVEL BRACKET (BLACK)
DESIGN I - CO-PILOTSWIVEL BRACKET (BLACK)
DESIGN I - CO-PILOT -
23415-822237A3 SWIVEL BRACKET (GRAY)
DESIGN I - CO-PILOTSWIVEL BRACKET (GRAY)
DESIGN I - CO-PILOT -
322-74036 FITTING, Grease
DESIGN I - CO-PILOTFITTING, Grease
DESIGN I - CO-PILOT -
454-11139A2 CLAMP ASSEMBLY
DESIGN I - CO-PILOTCLAMP ASSEMBLY
DESIGN I - CO-PILOT -
525-86993 O-RING, SWIVEL TUBE
DESIGN I - CO-PILOTO-RING, SWIVEL TUBE
DESIGN I - CO-PILOT -
1822238A9 SWIVEL HEAD (BLACK)
DESIGN II - CO-PILOTSWIVEL HEAD (BLACK)
DESIGN II - CO-PILOT -
1822238A9 SWIVEL HEAD (GRAY)
DESIGN II - CO-PILOTSWIVEL HEAD (GRAY)
DESIGN II - CO-PILOT -
1822238A9 SWIVEL HEAD (TRACKER)
DESIGN II - CO-PILOTSWIVEL HEAD (TRACKER)
DESIGN II - CO-PILOT -
23415-822237A3 SWIVEL BRACKET (BLACK)
DESIGN II - CO-PILOTSWIVEL BRACKET (BLACK)
DESIGN II - CO-PILOT -
23415-822237A3 SWIVEL BRACKET (GRAY)
DESIGN II - CO-PILOTSWIVEL BRACKET (GRAY)
DESIGN II - CO-PILOT -
23415-822237A3 SWIVEL BRACKET (TRACKER)
DESIGN II - CO-PILOTSWIVEL BRACKET (TRACKER)
DESIGN II - CO-PILOT -
322-74036 FITTING, Grease
DESIGN II - CO-PILOTFITTING, Grease
DESIGN II - CO-PILOT -
423-85154A1 BUSHING KIT
DESIGN II - CO-PILOTBUSHING KIT
DESIGN II - CO-PILOT -
525-86993 O-RING
DESIGN II - CO-PILOTO-RING
DESIGN II - CO-PILOT -
6821961 ROD
DESIGN II - CO-PILOTROD
DESIGN II - CO-PILOT -
78165621 DISC
DESIGN II - CO-PILOTDISC
DESIGN II - CO-PILOT -
8821958A1 PLATE, Swivel Head
DESIGN II - CO-PILOTPLATE, Swivel Head
DESIGN II - CO-PILOT -
910-768042 SCREW
DESIGN II - CO-PILOTSCREW
DESIGN II - CO-PILOT -
10821957 BRAKE PLATE
DESIGN II - CO-PILOTBRAKE PLATE
DESIGN II - CO-PILOT -
1112-29330 WASHER
DESIGN II - CO-PILOTWASHER
DESIGN II - CO-PILOT -
12821959 HANDLE
DESIGN II - CO-PILOTHANDLE
DESIGN II - CO-PILOT -
1311-8M0042636 NUT, (.375-24)
DESIGN II - CO-PILOTNUT, (.375-24)
DESIGN II - CO-PILOT -
1410-125161 SCREW, (M8 x 133.35), UPPER MOUNTSCREW, (M8 x 133.35), UPPER MOUNT
-
1514894 MOUNT, UPPERMOUNT, UPPER
-
1612-85172 WASHER, RUBBER - UPPER MOUNT SCREWWASHER, RUBBER - UPPER MOUNT SCREW
-
1712-43430 WASHER, UPPER MOUNT SCREWWASHER, UPPER MOUNT SCREW
-
1811-400213 NUT, (M8) Stainless Steel, UPPER MOUNT SCREWNUT, (M8) Stainless Steel, UPPER MOUNT SCREW
-
1916554 ROD, REVERSE HOOKROD, REVERSE HOOK
-
2098830A2 HOOK ASSEMBLY, REVERSE LOCKHOOK ASSEMBLY, REVERSE LOCK
-
2124-96018 SPRING, REVERSE HOOK - PORTSPRING, REVERSE HOOK - PORT
-
2224-97427 SPRING (STARBOARD - ELECTRIC)SPRING (STARBOARD - ELECTRIC)
-
2224-879894 SPRING (STBD - MANUAL/ELECTRIC HANDLE)SPRING (STBD - MANUAL/ELECTRIC HANDLE)
-
2385122001 MOUNT, LOWERMOUNT, LOWER
-
2485123001 BUMPER, FrontBUMPER, Front
-
2517232A1 COVER, LOWER MOUNT (BLACK)COVER, LOWER MOUNT (BLACK)
-
2517232A1 COVER, LOWER MOUNT (GRAY)COVER, LOWER MOUNT (GRAY)
-
2517232A3 COVER, LOWER MOUNT (TRACKER)COVER, LOWER MOUNT (TRACKER)
-
2610-1994360 SCREW (60 MM)SCREW (60 MM)
-
2710-19943100 SCREW (100 MM)SCREW (100 MM)
-
2811-400213 NUT, (M8) Stainless SteelNUT, (M8) Stainless Steel
-
2912-36001 WASHERWASHER
-
3012756 BRACKETBRACKET
-
3112758 LEVER, CONTROLLEVER, CONTROL
-
3224-12754 SPRINGSPRING
-
3317-13195 PINPIN
-
3453-13194 RING, RetainingRING, Retaining
-
-27-41499A88 GASKET SETGASKET SET
