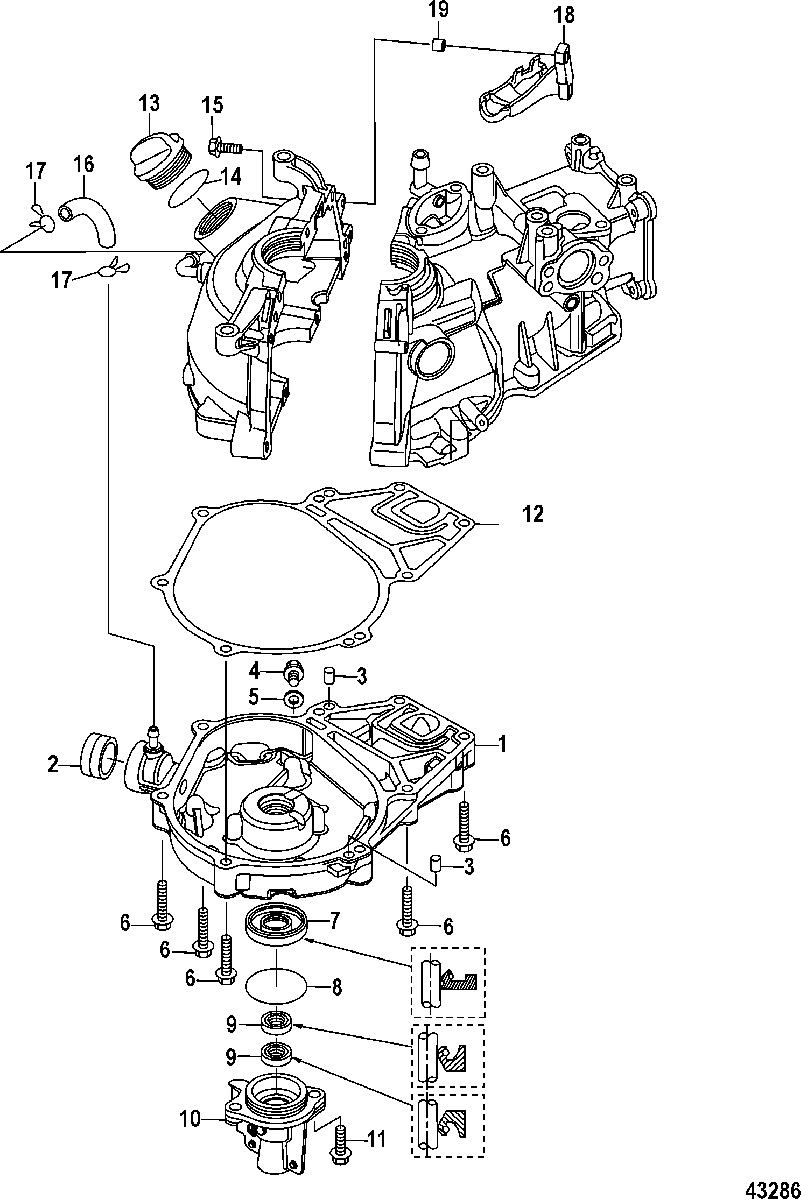

Oil Pan, Serial # 0R318096 and Up для Mercury - 2.5 (4-STROKE) Carb 0R131842 & Up
-
№АртикулНазвание
-
1898103T54 PAN, OilPAN, Oil
-
2898101294 DIPSTICKDIPSTICK
-
317-16119 PIN, DowelPIN, Dowel
-
410-803509021 BOLTBOLT
-
512-8035161 WASHERWASHER
-
610-850879001 BOLTBOLT
-
726-898101285 SEAL, OilSEAL, Oil
-
825-825057003 O-RINGO-RING
-
926-898101298 SEAL, OilSEAL, Oil
-
10898103T55 HEAD, CrankcaseHEAD, Crankcase
-
1110-167051 BOLT, (M6 x 20)BOLT, (M6 x 20)
-
1227-898101297 GASKET, Oil PanGASKET, Oil Pan
-
13859578A02 CAP ASSEMBLY, Oil FillerCAP ASSEMBLY, Oil Filler
-
1425-803513007 O-RINGO-RING
-
1510-167051 BOLT, (M6 x 20)BOLT, (M6 x 20)
-
1632-898101281 HOSE, (90 mm) RubberHOSE, (90 mm) Rubber
-
1754-95395 CLIP, Stainless SteelCLIP, Stainless Steel
-
18898103219 BRACKETBRACKET
-
1923-952868 COLLARCOLLAR
-
-27-898103A67 GASKET SET, PowerheadGASKET SET, Powerhead
-
-8M0145827 SHORT BLOCKSHORT BLOCK
