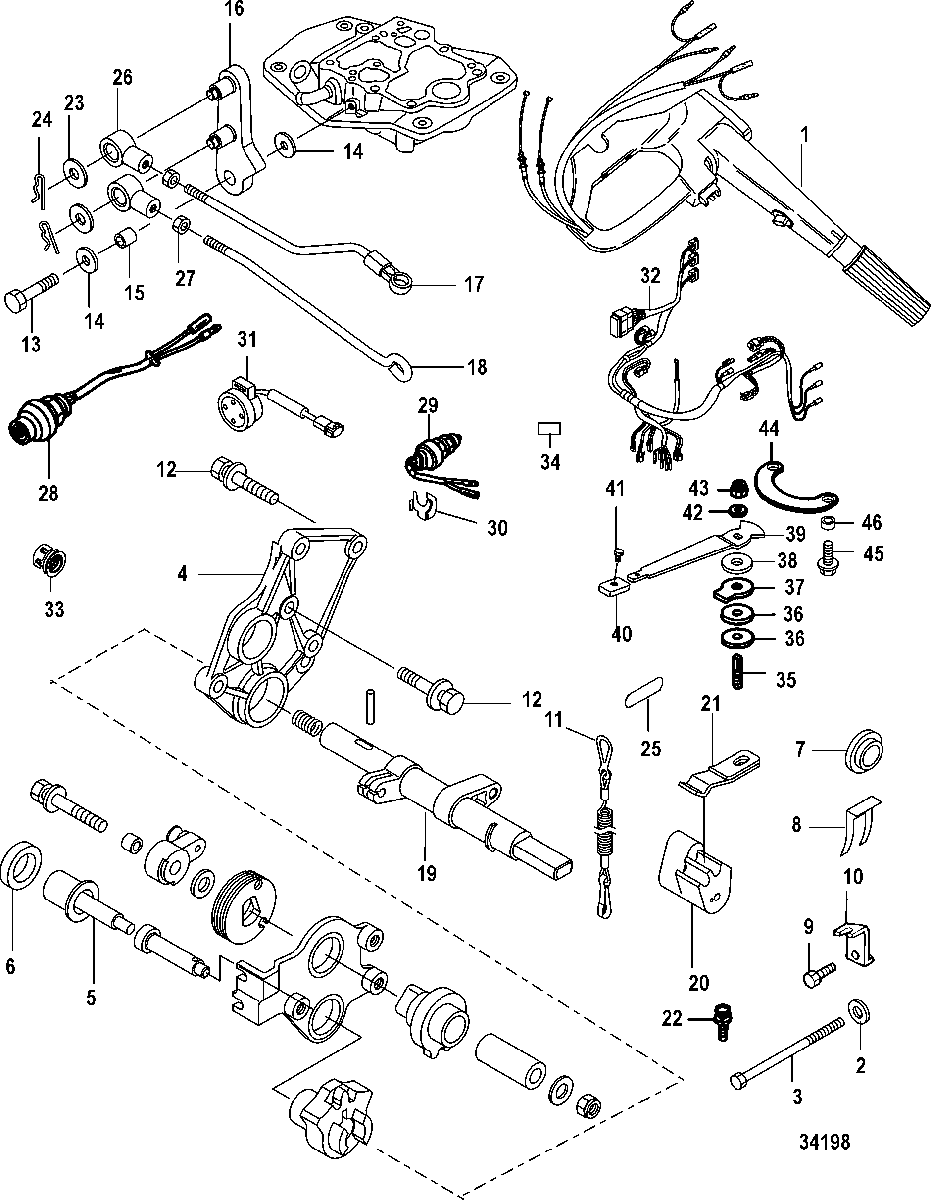

Conversion Kit-Tiller Handle, Electric - 879147A09 для Mercury - 25 Jet EFI (3 CYL.)(4-STROKE) 0R165086 & Up
-
№АртикулНазвание
-
-8M0051062 CONVERSION KIT, Tiller Handle (Electric Remote Control to Electric Handle)CONVERSION KIT, Tiller Handle (Electric Remote Control to Electric Handle)
-
1NSS NOT SOLD SEPARATE, Tiller Handle AssemblyNOT SOLD SEPARATE, Tiller Handle Assembly
-
212-879194340 WASHER, Stainless SteelWASHER, Stainless Steel
-
310-8M0058362 BOLT, SteelBOLT, Steel
-
4NSS NOT SOLD SEPARATE, Gear AssemblyNOT SOLD SEPARATE, Gear Assembly
-
5898101110 KNOBKNOB
-
625-898101166 GROMMET, RubberGROMMET, Rubber
-
719-898101625 PLUG, PlasticPLUG, Plastic
-
8898101149 RETAINER, Stainless SteelRETAINER, Stainless Steel
-
910-879194248 BOLTBOLT
-
10898101265 BRACKET, Starter Lock Cable - Stainless SteelBRACKET, Starter Lock Cable - Stainless Steel
-
118M0092850 LANYARD ASSEMBLYLANYARD ASSEMBLY
-
1210-823042 BOLT, Stainless SteelBOLT, Stainless Steel
-
1310-16705 BOLT, Stainless SteelBOLT, Stainless Steel
-
1412-953921 WASHER, Stainless SteelWASHER, Stainless Steel
-
1523-95286029 COLLAR, (9.5 mm) Stainless SteelCOLLAR, (9.5 mm) Stainless Steel
-
16898101195 ARM, ThrottleARM, Throttle
-
17898101204 ROD, ThrottleROD, Throttle
-
18898101205 ROD, Throttle - Stainless SteelROD, Throttle - Stainless Steel
-
19898103T16 SHIFT SHAFTSHIFT SHAFT
-
20898101112 LEVERLEVER
-
2124-8M0138740 STOPPER, Shift Lever - Stainless SteelSTOPPER, Shift Lever - Stainless Steel
-
2210-8230427 BOLTBOLT
-
2312-898101218 WASHER, PlasticWASHER, Plastic
-
2418-898101174 COTTER PIN, Stainless SteelCOTTER PIN, Stainless Steel
-
2537-859278003 DECAL, Throttle OnlyDECAL, Throttle Only
-
26892775 JOINT, CableJOINT, Cable
-
2711-16081 NUT, Stainless SteelNUT, Stainless Steel
-
2887-853820A02 SWITCH ASSEMBLY, StartSWITCH ASSEMBLY, Start
-
2987-8M0127937 SWITCH ASSEMBLY, NeutralSWITCH ASSEMBLY, Neutral
-
30803841 ACTUATORACTUATOR
-
31898101134 ALARM, Over-HeatALARM, Over-Heat
-
3284-898101T51 HARNESS ASSEMBLY, ECUHARNESS ASSEMBLY, ECU
-
3311-85372214 CAP NUTCAP NUT
-
3437-859278004 DECAL, StartDECAL, Start
-
-898103A92 CO-PILOT KITCO-PILOT KIT
-
3510-895140002 BOLTBOLT
-
36895173 DISCDISC
-
3712-895146002 WASHERWASHER
-
3812-895146001 WASHERWASHER
-
39898101035 HANDLE, Co-PilotHANDLE, Co-Pilot
-
40898101083 GRIPGRIP
-
418M0051399 BUTTONBUTTON
-
4212-16192 WASHERWASHER
-
4311-95374 NUT, NylonNUT, Nylon
-
44898101036 PLATE, Co-PilotPLATE, Co-Pilot
-
4510-8248324 SCREW, (M6 x 16)SCREW, (M6 x 16)
-
4623-898101031 COLLARCOLLAR
