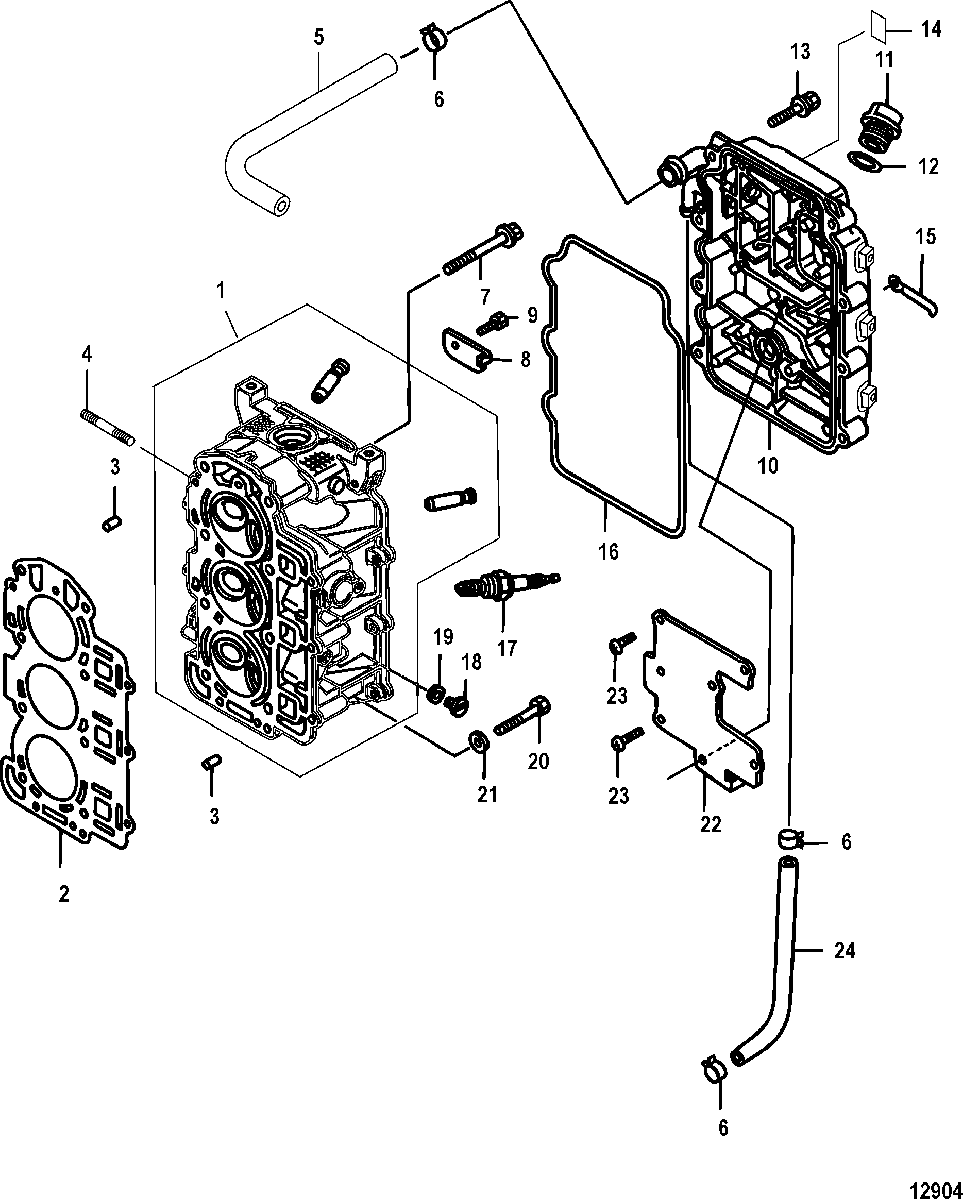

Cylinder Head для Mercury - 25 Jet EFI (3 CYL.)(4-STROKE) 0R165086 & Up
-
№АртикулНазвание
-
1898101T39 CYLINDER HEADCYLINDER HEAD
-
227-898101T41 GASKET, Cylinder HeadGASKET, Cylinder Head
-
317-16119 PIN, DowelPIN, Dowel
-
416-898101190 STUDSTUD
-
532-898101020 HOSE, Breather, To Intake SilencerHOSE, Breather, To Intake Silencer
-
654-803525003 CLIPCLIP
-
710-855677002 BOLTBOLT
-
8853756001 PLATEPLATE
-
910-879194248 BOLTBOLT
-
10898101T40 COVER, Cylinder HeadCOVER, Cylinder Head
-
11859578A02 CAP ASSEMBLY, Oil FillerCAP ASSEMBLY, Oil Filler
-
1225-803513007 O-RINGO-RING
-
1310-16830A1 SCREW KITSCREW KIT
-
14NSS NOT SOLD SEPARATE, Decal-Engine OilNOT SOLD SEPARATE, Decal-Engine Oil
-
1554-803563005 CLAMPCLAMP
-
1627-803508T18 GASKETGASKET
-
1733-803507 SPARK PLUG, NGK#DCPR6ESPARK PLUG, NGK#DCPR6E
-
1822-953683 PLUGPLUG
-
198M0082880 GASKETGASKET
-
2010-853531001 BOLTBOLT
-
2112-16826 WASHER, Stainless SteelWASHER, Stainless Steel
-
22834974001 PLATE, BreatherPLATE, Breather
-
2310-898101162 SCREWSCREW
-
2432-8M0093642 HOSE, Rubber (290 mm), To Adaptor PlateHOSE, Rubber (290 mm), To Adaptor Plate
-
-889246T30 SHORT BLOCK
30 Horsepower SN# 0R122288 & BelowSHORT BLOCK
30 Horsepower SN# 0R122288 & Below -
-889246T30 SHORT BLOCK
30 Horsepower SN# 0R122289 & UpSHORT BLOCK
30 Horsepower SN# 0R122289 & Up -
-898103T34 SHORT BLOCK
25 HorsepowerSHORT BLOCK
25 Horsepower -
-27-8M0079064 GASKET SET, PowerheadGASKET SET, Powerhead
