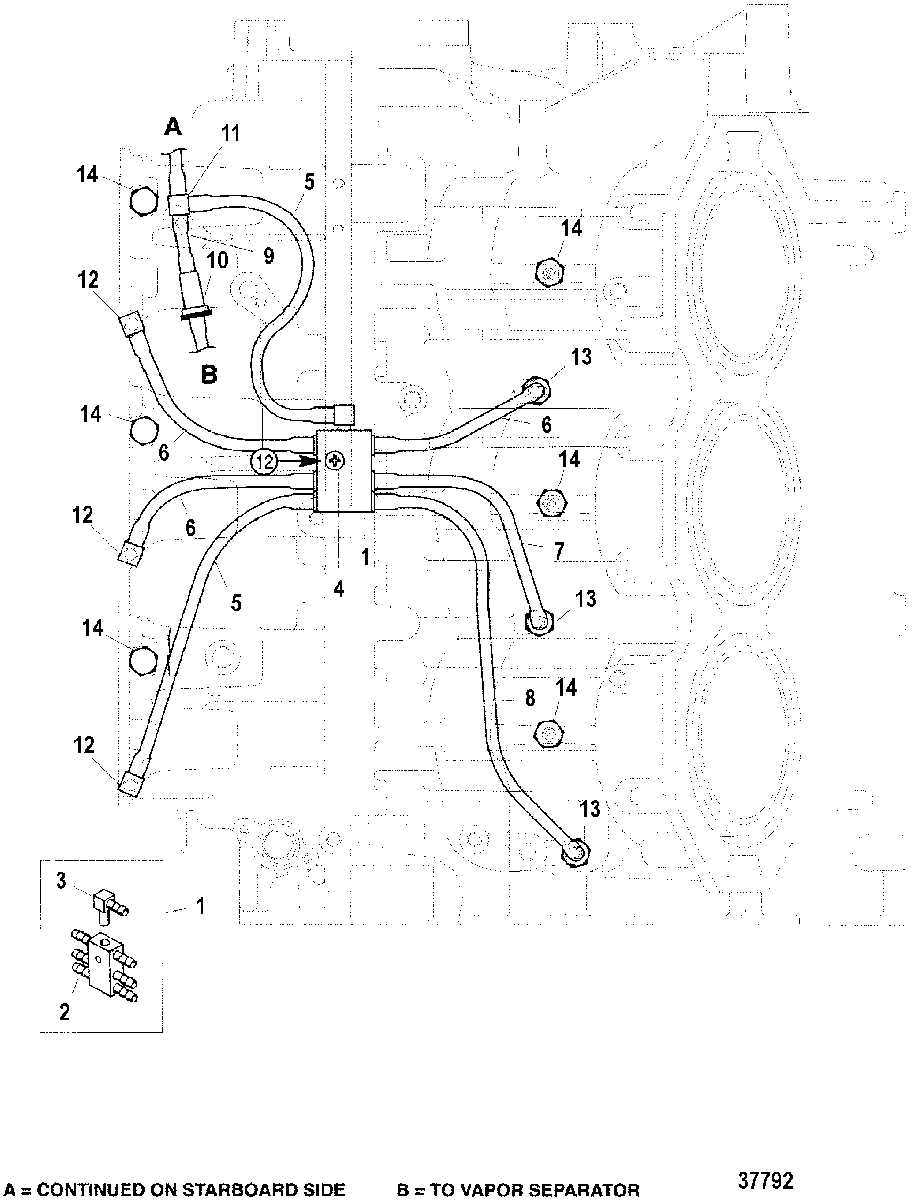

BLEED SYSTEM(PORT)(S/N-0G437999 AND BELOW) для Mercury - 250 (3.0L EFI) 0G129222 THRU 0G760299
-
№АртикулНазвание
-
1827210A1 MANIFOLD ASSEMBLY, Bleed SystemMANIFOLD ASSEMBLY, Bleed System
-
221-426233 CHECK VALVECHECK VALVE
-
322-15133 FITTINGFITTING
-
410-92051 SCREW, (10-16 x .75)SCREW, (10-16 x .75)
-
532-892024122 TUBING, (20.00 Feet Bulk) (9 IN.)TUBING, (20.00 Feet Bulk) (9 IN.)
-
632-892024122 TUBING, (20.00 Feet Bulk) (5-1/4 IN.)TUBING, (20.00 Feet Bulk) (5-1/4 IN.)
-
732-892024122 TUBING, (20.00 Feet Bulk) (7 IN.)TUBING, (20.00 Feet Bulk) (7 IN.)
-
832-892024122 TUBING, (20.00 Feet Bulk) (11 IN.)TUBING, (20.00 Feet Bulk) (11 IN.)
-
932-9912688 TUBING, (36.00 Inches Bulk) (1-3/4 IN.)TUBING, (36.00 Inches Bulk) (1-3/4 IN.)
-
1035-8M0042285 FILTERFILTER
-
1122-827200 FITTING, TeeFITTING, Tee
-
1222-768431 FITTING
(REF. # 11 ON "CYLINDER BLOCK AND END CAP")FITTING
(REF. # 11 ON "CYLINDER BLOCK AND END CAP") -
1322-8245021 CONNECTOR
(REF. # 8 ON "CYLINDER BLOCK AND END CAP")CONNECTOR
(REF. # 8 ON "CYLINDER BLOCK AND END CAP") -
1422-8272011 PIPE PLUG
(REF. # 31 ON "CYLINDER BLOCK AND END CAP")PIPE PLUG
(REF. # 31 ON "CYLINDER BLOCK AND END CAP") -
-809794R97 POWERHEAD ASSEMBLYPOWERHEAD ASSEMBLY
