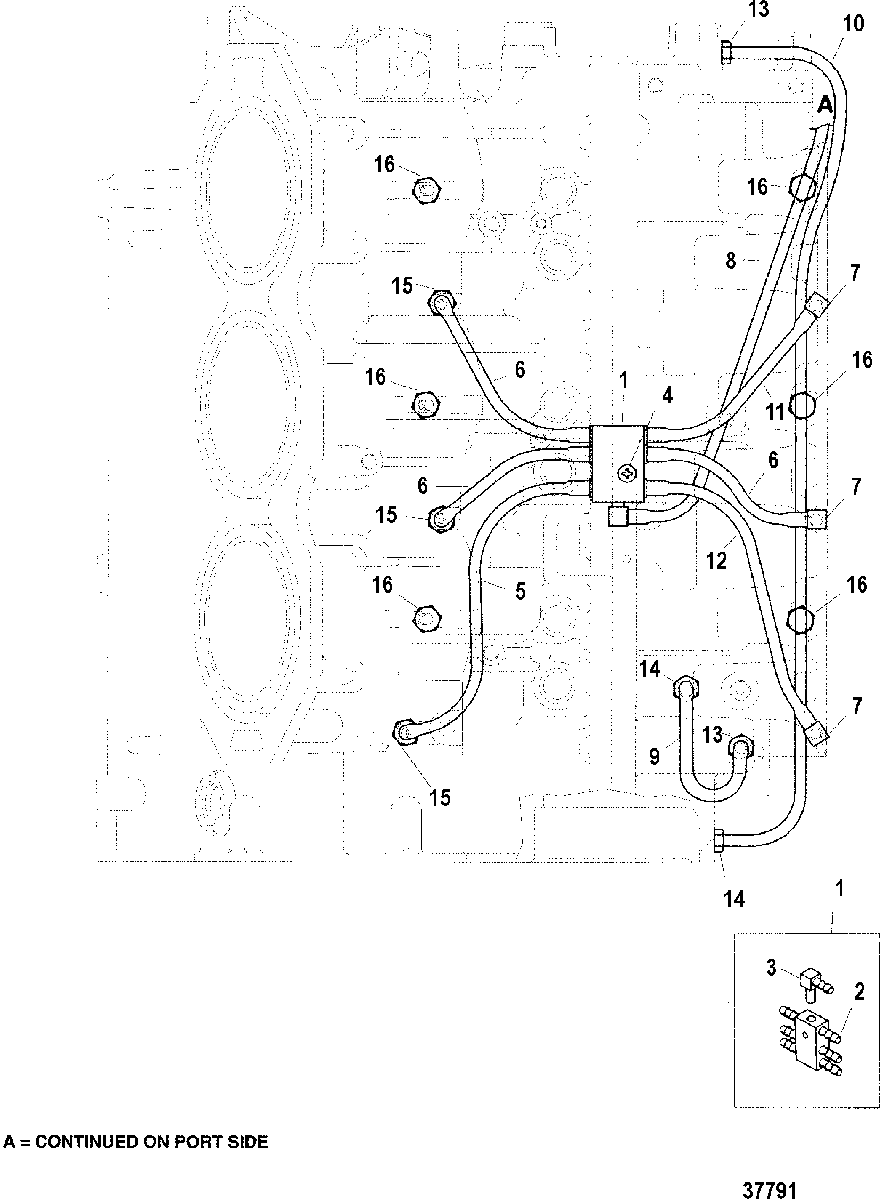

BLEED SYSTEM(STARBOARD)(S/N-0G437999 AND BELOW) для Mercury - 250 (3.0L EFI) 0G129222 THRU 0G760299
-
№АртикулНазвание
-
1827210A1 MANIFOLD ASSEMBLY, Bleed SystemMANIFOLD ASSEMBLY, Bleed System
-
221-426233 CHECK VALVECHECK VALVE
-
322-15133 FITTINGFITTING
-
410-92051 SCREW, (10-16 x .75)SCREW, (10-16 x .75)
-
532-892024122 TUBING, (20.00 Feet Bulk) (9 IN.)TUBING, (20.00 Feet Bulk) (9 IN.)
-
632-892024122 TUBING, (20.00 Feet Bulk) (5-1/4 IN.)TUBING, (20.00 Feet Bulk) (5-1/4 IN.)
-
722-768431 FITTING
(SHOWN AS REF. #11 ON "CYLINDER BLOCK AND END CAP")FITTING
(SHOWN AS REF. #11 ON "CYLINDER BLOCK AND END CAP") -
832-892024122 TUBING, (20.00 Feet Bulk) (17 IN.)TUBING, (20.00 Feet Bulk) (17 IN.)
-
932-892024122 TUBING, (20.00 Feet Bulk) (4 IN.)
(REF. #30 ON "CYLINDER BLOCK AND END CAP")TUBING, (20.00 Feet Bulk) (4 IN.)
(REF. #30 ON "CYLINDER BLOCK AND END CAP") -
1032-892024122 TUBING, (20.00 Feet Bulk) (22-1/2 IN.)
(REF. #27 ON "CYLINDER BLOCK AND END CAP")TUBING, (20.00 Feet Bulk) (22-1/2 IN.)
(REF. #27 ON "CYLINDER BLOCK AND END CAP") -
1132-892024122 TUBING, (20.00 Feet Bulk) (7 IN.)TUBING, (20.00 Feet Bulk) (7 IN.)
-
1232-892024122 TUBING, (20.00 Feet Bulk) (8-1/2 IN.)TUBING, (20.00 Feet Bulk) (8-1/2 IN.)
-
1321-8159234 CHECK VALVE
(REF. #16 ON "CYLINDER BLOCK AND END CAP")CHECK VALVE
(REF. #16 ON "CYLINDER BLOCK AND END CAP") -
1421-426585 CHECK VALVE
(REF. #14 ON "CYLINDER BLOCK AND END CAP"CHECK VALVE
(REF. #14 ON "CYLINDER BLOCK AND END CAP" -
1522-8245021 CONNECTOR
(SHOWN AS REF. #8 ON "CYLINDER BLOCK AND END CAP")CONNECTOR
(SHOWN AS REF. #8 ON "CYLINDER BLOCK AND END CAP") -
1622-8272011 PIPE PLUGPIPE PLUG
-
-809794R97 POWERHEAD ASSEMBLYPOWERHEAD ASSEMBLY
