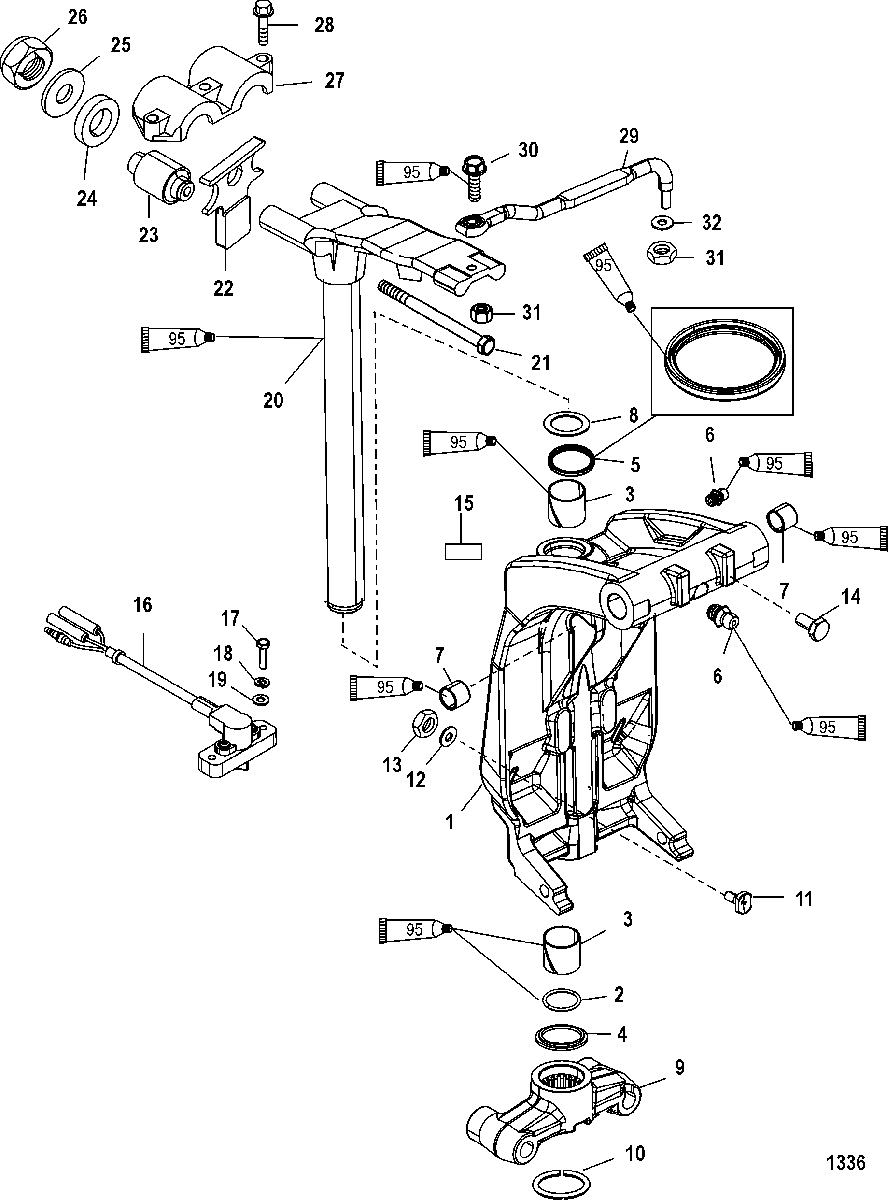

Swivel Bracket and Steering Arm для Mercury - 250 (DFI) 3.0L 1B528615 & Up
-
№АртикулНазвание
-
11499-8M0102865 SWIVEL BRACKET ASSEMBLY, BlackSWIVEL BRACKET ASSEMBLY, Black
-
225-33504 O-RINGO-RING
-
323-818764 BUSHINGBUSHING
-
423-816039 SPACERSPACER
-
526-87735 SEAL, Oil, LowerSEAL, Oil, Lower
-
622-74036 FITTING, GreaseFITTING, Grease
-
723-821207 BUSHINGBUSHING
-
812-816432 THRUST WASHERTHRUST WASHER
-
9826364T YOKE, BottomYOKE, Bottom
-
1053-67684 RING, RetainingRING, Retaining
-
118M0045383 STRIKER PLATESTRIKER PLATE
-
1213-58643 LOCKWASHER, (.375)LOCKWASHER, (.375)
-
1311-46335 NUT, (.375-24)NUT, (.375-24)
-
1410-64014 SCREW, (.250-28 x .500)SCREW, (.250-28 x .500)
-
15NSS NOT SOLD SEPARATE, Decal-Serial OverlaminateNOT SOLD SEPARATE, Decal-Serial Overlaminate
-
16896688001 SENDER ASSEMBLY, Trim, DigitalSENDER ASSEMBLY, Trim, Digital
-
168M0098273 SENDER ASSEMBLY, Trim, AnalogSENDER ASSEMBLY, Trim, Analog
-
1710-852368 SCREW, (#10-24 x .750)SCREW, (#10-24 x .750)
-
1813-26996 LOCKWASHER, (#10) Stainless SteelLOCKWASHER, (#10) Stainless Steel
-
1912-89302 WASHER, (.203 x .406 x .040)WASHER, (.203 x .406 x .040)
-
2017-8M0132731 SWIVEL PIN ASSEMBLY, Steering Arm - Stainless SteelSWIVEL PIN ASSEMBLY, Steering Arm - Stainless Steel
-
2110-8M0141069 SCREW, (M12 x 190)SCREW, (M12 x 190)
-
22824998001 BUMPERBUMPER
-
238163851 MOUNT, UpperMOUNT, Upper
-
2412-8154371 WASHERWASHER
-
2512-815436 WASHERWASHER
-
2611-896963 NUT, (M12)NUT, (M12)
-
278M0036783 CLAMPCLAMP
-
2810-81893435 SCREW, (M8 x 35)SCREW, (M8 x 35)
-
2992876A12 LINK ROD ASSEMBLYLINK ROD ASSEMBLY
-
3010-849838 SCREW, (.375-24 x 1.250)SCREW, (.375-24 x 1.250)
-
3111-8M0042636 NUT, (.375-24) Stainless SteelNUT, (.375-24) Stainless Steel
-
3111-8M0042636 NUT, (.375-24) BrassNUT, (.375-24) Brass
-
3212-37828 WASHER, (.390 x .625 x .062) Stainless SteelWASHER, (.390 x .625 x .062) Stainless Steel
