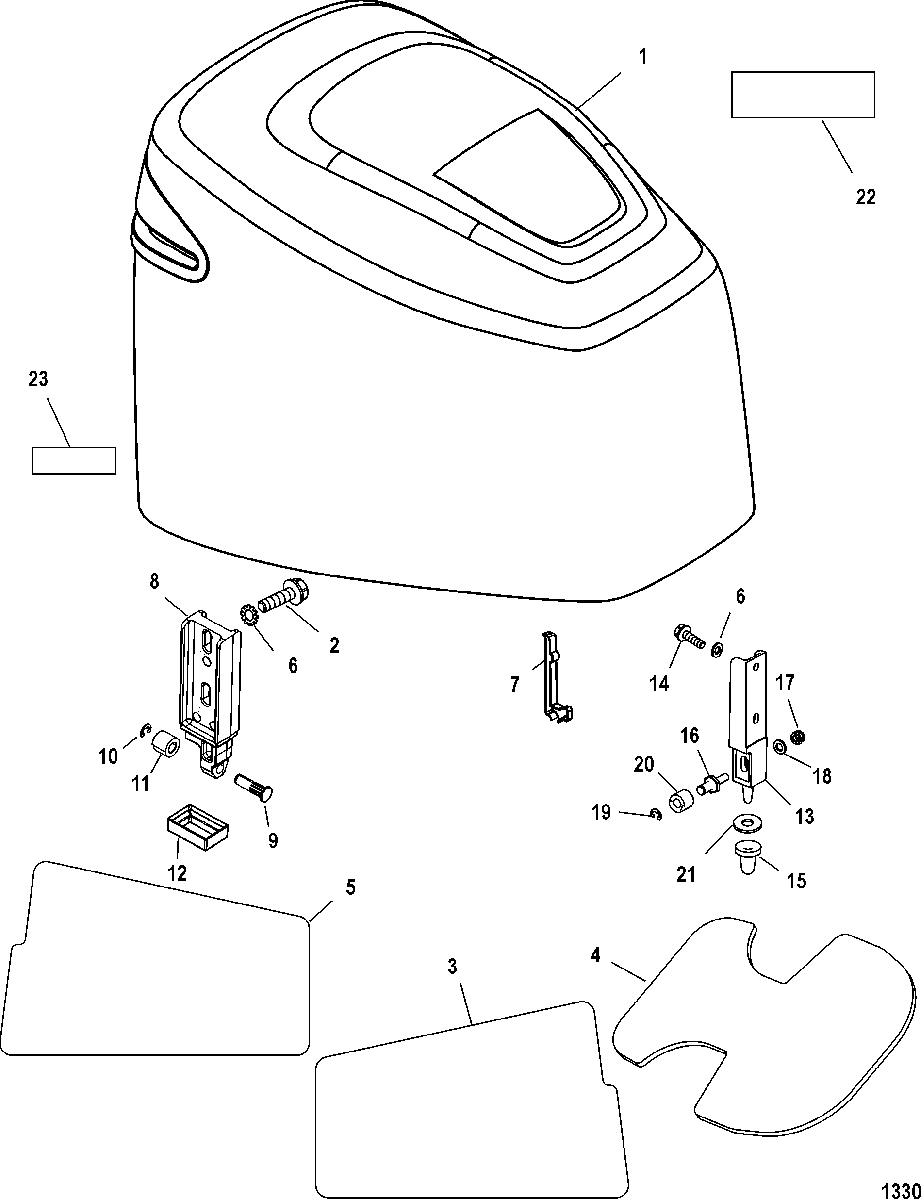

Top Cowl для Mercury - 250 (DFI) 3.0L 1B528615 & Up
-
№АртикулНазвание
-
1100-8M0063417 TOP COWL ASSEMBLY, (Black)
Includes All Decals Except HorsepowerTOP COWL ASSEMBLY, (Black)
Includes All Decals Except Horsepower -
1100-8M0072789 TOP COWL ASSEMBLY, (Black)
(250 EU) Includes All Decals Except HorsepowerTOP COWL ASSEMBLY, (Black)
(250 EU) Includes All Decals Except Horsepower -
1100-881288T65 TOP COWL ASSEMBLY, (Silver)
Includes All Decals Except HorsepowerTOP COWL ASSEMBLY, (Silver)
Includes All Decals Except Horsepower -
1100-8M0075372 TOP COWL ASSEMBLY, (Black)
(200 PRO XS) Includes All Decals Except HorsepowerTOP COWL ASSEMBLY, (Black)
(200 PRO XS) Includes All Decals Except Horsepower -
1100-8M0075369 TOP COWL ASSEMBLY, Mercury, Without decalsTOP COWL ASSEMBLY, Mercury, Without decals
-
18M0075370 TOP COWL ASSEMBLY, Mercury, Without decals
250 EUTOP COWL ASSEMBLY, Mercury, Without decals
250 EU -
18M0075371 TOP COWL ASSEMBLY, Mariner, Without decalsTOP COWL ASSEMBLY, Mariner, Without decals
-
1100-8M0075372 TOP COWL ASSEMBLY, Mercury, Without decals
ProXSTOP COWL ASSEMBLY, Mercury, Without decals
ProXS -
210-82130030 SCREW, (M6 x 30)SCREW, (M6 x 30)
-
3884041A02 SOUND BLANKET KITSOUND BLANKET KIT
-
3884041A04 SOUND BLANKET KIT
200 PRO XSSOUND BLANKET KIT
200 PRO XS -
3884041A03 SOUND BLANKET KIT
(250 EU)SOUND BLANKET KIT
(250 EU) -
4NSS NOT SOLD SEPARATE, Sound Blanket-TopNOT SOLD SEPARATE, Sound Blanket-Top
-
5NSS NOT SOLD SEPARATE, Sound Blanket-PortNOT SOLD SEPARATE, Sound Blanket-Port
-
613-93702 WASHER, (.250 External Star)WASHER, (.250 External Star)
-
7826639T COVERCOVER
-
88M0010389 BRACKET ASSEMBLY, CowlBRACKET ASSEMBLY, Cowl
-
9NSS NOT SOLD SEPARATE, PinNOT SOLD SEPARATE, Pin
-
1053-8237951 RING, RetainingRING, Retaining
-
11815263 ROLLERROLLER
-
1225-850685T02 GROMMETGROMMET
-
138M0036792 BRACKET, FrontBRACKET, Front
-
1410-82130020 SCREW, (M6 x 20)SCREW, (M6 x 20)
-
15815477 BUMPER, LatchBUMPER, Latch
-
168155381 PIN, RollPIN, Roll
-
1711-401366 NUT, (M6) Stainless SteelNUT, (M6) Stainless Steel
-
1812-29245 WASHER, (.281 x .500 x .060) Stainless SteelWASHER, (.281 x .500 x .060) Stainless Steel
-
1953-8237951 RING, RetainingRING, Retaining
-
20815263 ROLLERROLLER
-
2112-87161 WASHERWASHER
-
22NSS NOT SOLD SEPARATE, Decal-Break-InNOT SOLD SEPARATE, Decal-Break-In
-
23NSS NOT SOLD SEPARATE, Decal-Counter RotationNOT SOLD SEPARATE, Decal-Counter Rotation
-
-37-855413A03 DECAL SET
200 - MarinerDECAL SET
200 - Mariner -
-37-8M0065129 DECAL SET
225 - MarinerDECAL SET
225 - Mariner -
-37-897136A07 DECAL SET, ProXS, HP decal not included
200 PRO XSDECAL SET, ProXS, HP decal not included
200 PRO XS -
-37-855412A07 DECAL SET, Mercury 200DECAL SET, Mercury 200
-
-37-8M0061185 DECAL, Horsepower 200DECAL, Horsepower 200
-
-37-855408A07 DECAL SET, Mercury 225DECAL SET, Mercury 225
-
-37-8M0061186 DECAL, Horsepower 225DECAL, Horsepower 225
-
-37-895252A08 DECAL SET, Mercury 250DECAL SET, Mercury 250
-
-37-8M0061187 DECAL, Horsepower 250DECAL, Horsepower 250
