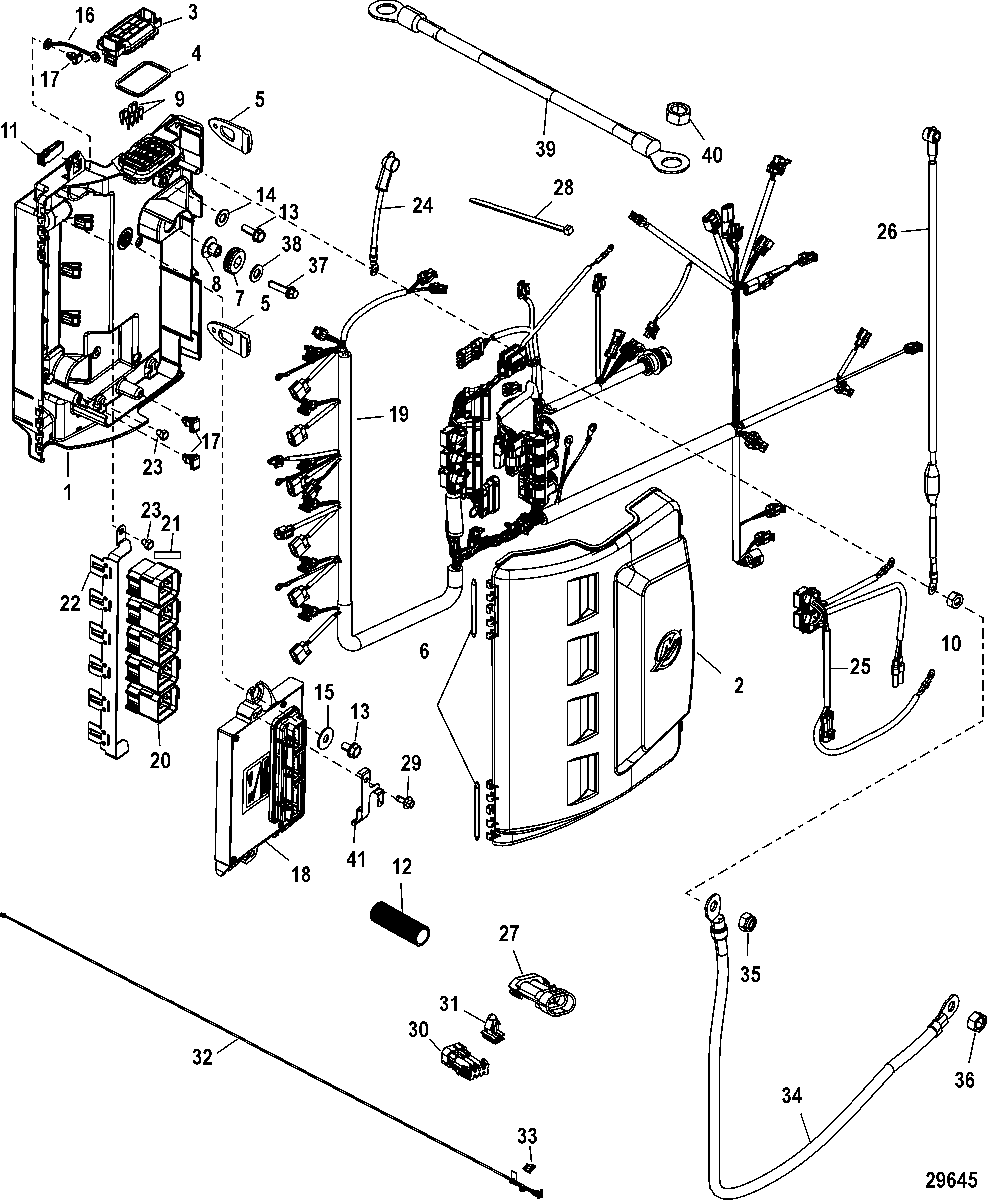

Electrical Box Components для Mercury - 250 PRO VERADO (4-Stroke)(6 CYL.) 1B830170 THRU 2B144122
-
№АртикулНазвание
-
-NSS NOT SOLD SEPARATE, Electrical Box-CompleteNOT SOLD SEPARATE, Electrical Box-Complete
-
-NSS NOT SOLD SEPARATE, Electrical BoxNOT SOLD SEPARATE, Electrical Box
-
1885560T03 BASE, Electrical BoxBASE, Electrical Box
-
2885561T COVER, Fuse BoxCOVER, Fuse Box
-
3888491 COVER, FuseCOVER, Fuse
-
425-885583 SEALSEAL
-
5889531 STRAPSTRAP
-
6885584 PIN, HingePIN, Hinge
-
725-833155 GROMMETGROMMET
-
823-8502341 BUSHINGBUSHING
-
988-832969T20 FUSE, Mini - Yellow - 20 AmpereFUSE, Mini - Yellow - 20 Ampere
-
1011-400213 NUT, (M8) Stainless SteelNUT, (M8) Stainless Steel
-
11895099 EXTRACTOR, FuseEXTRACTOR, Fuse
-
1232-828547753 CONDUIT, (.750 Inside Diameter x 3.00 Feet Bulk)CONDUIT, (.750 Inside Diameter x 3.00 Feet Bulk)
-
1310-40011146 SCREW, (M8 x 13) Stainless SteelSCREW, (M8 x 13) Stainless Steel
-
1412-843108 WASHER, (.330 x .560 x .060) Stainless SteelWASHER, (.330 x .560 x .060) Stainless Steel
-
1512-817274 WASHER, (.344 x 1.00 x .063) Stainless SteelWASHER, (.344 x 1.00 x .063) Stainless Steel
-
16892244 STRAP, CoverSTRAP, Cover
-
1754-879962 CLIPCLIP
-
188M0093706 PCM, Propulsion Control Module
200 Pro VeradoPCM, Propulsion Control Module
200 Pro Verado -
188M0052109 PCM, Propulsion Control Module
250 Pro Verado SN# 2B022644 & BelowPCM, Propulsion Control Module
250 Pro Verado SN# 2B022644 & Below -
188M0082865 PCM, Propulsion Control Module
250 Pro Verado SN# 2B022645 & UpPCM, Propulsion Control Module
250 Pro Verado SN# 2B022645 & Up -
1889790746T PCM, Propulsion Control Module
300 Pro Verado SN# 2B022644 & BelowPCM, Propulsion Control Module
300 Pro Verado SN# 2B022644 & Below -
188M0082868 PCM, Propulsion Control Module
300 Pro Verado SN# 2B022645 & UpPCM, Propulsion Control Module
300 Pro Verado SN# 2B022645 & Up -
1984-8M0082643 HARNESS ASSEMBLY, Engine
Non-Joystick Piloting modelsHARNESS ASSEMBLY, Engine
Non-Joystick Piloting models -
1984-8M0082643 HARNESS ASSEMBLY, Engine
Joystick Piloting modelsHARNESS ASSEMBLY, Engine
Joystick Piloting models -
-NSS NOT SOLD SEPARATE, Relay Bracket AssemblyNOT SOLD SEPARATE, Relay Bracket Assembly
-
20882751A04 RELAY ASSEMBLYRELAY ASSEMBLY
-
21NSS NOT SOLD SEPARATE, Decal-Trim RelayNOT SOLD SEPARATE, Decal-Trim Relay
-
22889532 BRACKETBRACKET
-
2310-40007103 SCREW, (M5 x 6)SCREW, (M5 x 6)
-
2484-93388A17 CABLE ASSEMBLY, (8.50 Inches)CABLE ASSEMBLY, (8.50 Inches)
-
2584-879345T34 HARNESS ASSEMBLY, TrimHARNESS ASSEMBLY, Trim
-
2684-8M0088927 HARNESS ASSEMBLY, FuseHARNESS ASSEMBLY, Fuse
-
27830796A03 CONNECTOR ASSEMBLY, Weather Cap - 2 Pin MaleCONNECTOR ASSEMBLY, Weather Cap - 2 Pin Male
-
2854-850181 TIE STRAP, (11.750 Inches)TIE STRAP, (11.750 Inches)
-
2854-816311T TIE STRAP, (8.00 Inches)TIE STRAP, (8.00 Inches)
-
2910-82129114 SCREW, (M6 x 14)SCREW, (M6 x 14)
-
30877613A02 CONNECTOR ASSEMBLY, Weather Cap 6 PinCONNECTOR ASSEMBLY, Weather Cap 6 Pin
-
3154-879962 CLIPCLIP
-
3284-8M0113732 HARNESS ASSEMBLYHARNESS ASSEMBLY
-
33862646 FUSE, Tan - 5 AmpereFUSE, Tan - 5 Ampere
-
3484-88439A25 CABLE ASSEMBLY, Battery - Positive
(Long)CABLE ASSEMBLY, Battery - Positive
(Long) -
3511-401388 NUT, (M8) Stainless SteelNUT, (M8) Stainless Steel
-
3611-86226 NUT, (.375-16), Battery Cable-PositiveNUT, (.375-16), Battery Cable-Positive
-
3710-8M0103814 SCREW, (M8 x 35 MM)SCREW, (M8 x 35 MM)
-
3812-817274 WASHER, (.344 x 1.00 x .063) Stainless SteelWASHER, (.344 x 1.00 x .063) Stainless Steel
-
3984-88439A26 CABLE ASSEMBLY, Battery - Negative
(Long)CABLE ASSEMBLY, Battery - Negative
(Long) -
4011-68292 NUT, (.312-18), Battery Cable-NegativeNUT, (.312-18), Battery Cable-Negative
-
4154-891520001 CLIPCLIP
