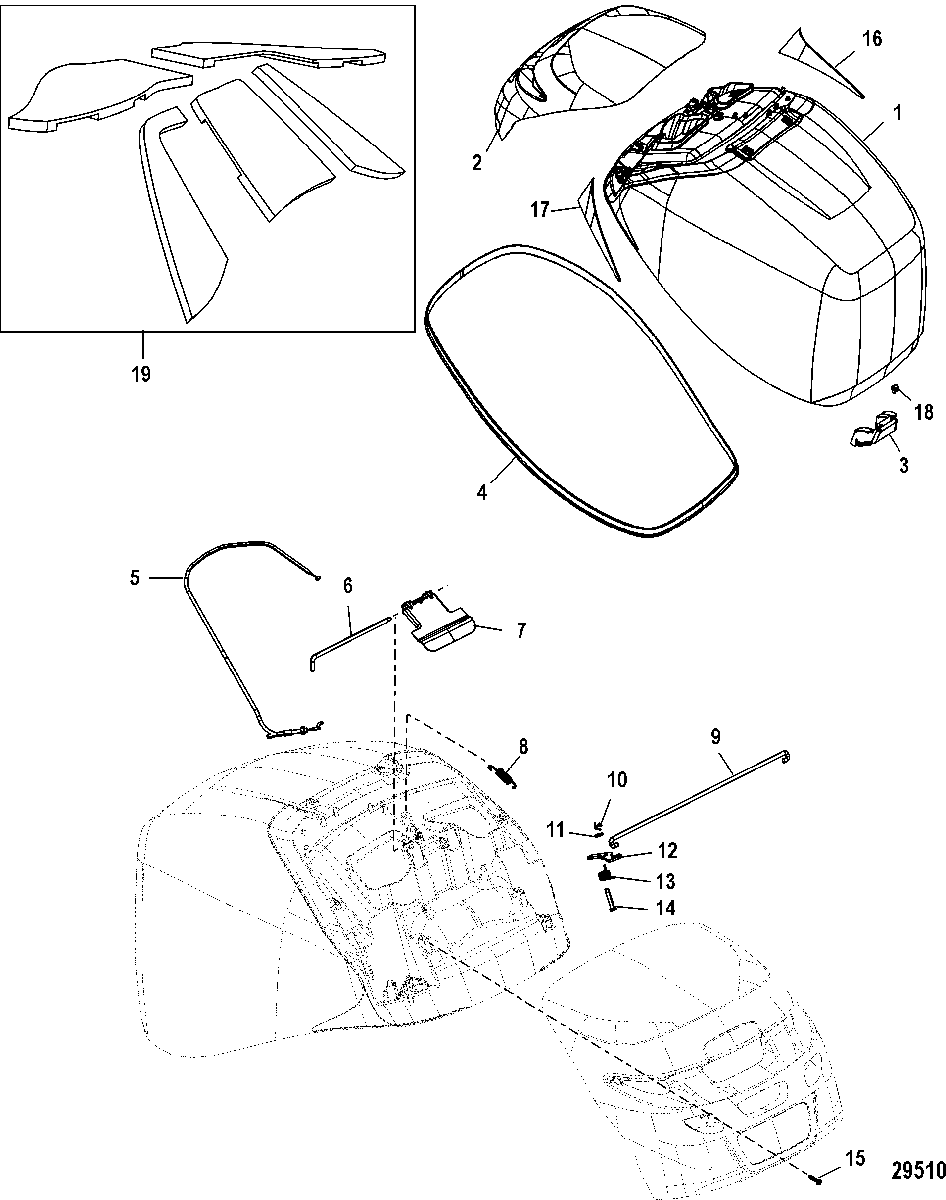

Top Cowl для Mercury - 250 PRO VERADO (4-Stroke)(6 CYL.) 1B830170 THRU 2B144122
-
№АртикулНазвание
-
1100-8M0052576 TOP COWL ASSEMBLY, MercuryTOP COWL ASSEMBLY, Mercury
-
2885354T01 CAP, Air Dam, Mercury, BlackCAP, Air Dam, Mercury, Black
-
3888971 FRONT LATCH RECEIVERFRONT LATCH RECEIVER
-
48M0111178 SEALSEAL
-
58M0127199 CABLECABLE
-
617-888959 PIN, HingePIN, Hinge
-
7888956 LATCH, Hand LeverLATCH, Hand Lever
-
824-895373 SPRINGSPRING
-
9888955 LINK, Latch ConnectingLINK, Latch Connecting
-
1018-26953 COTTER PINCOTTER PIN
-
1112-89302 WASHER, (.203 x .406 x .040)WASHER, (.203 x .406 x .040)
-
12888952 LINKAGE ARMLINKAGE ARM
-
1324-888953 SPRINGSPRING
-
1417-822417 PINPIN
-
1510-888950020 SCREW, (M4 x 20 mm) (M4 x 1.75)SCREW, (M4 x 20 mm) (M4 x 1.75)
-
168M0033614 APPLIQUE, Port, MercuryAPPLIQUE, Port, Mercury
-
178M0033615 APPLIQUE, Starboard, MercuryAPPLIQUE, Starboard, Mercury
-
1810-8M0103804 SCREW, (M6 x 12 MM) Stainless SteelSCREW, (M6 x 12 MM) Stainless Steel
-
198M4501639 SOUND BLANKET KITSOUND BLANKET KIT
-
-37-8M0103041 DECAL SET, Mercury Pro Verado, Cowl, Without Horse Power DecalsDECAL SET, Mercury Pro Verado, Cowl, Without Horse Power Decals
-
-37-8M0110609 DECAL, HORSEPOWER , 200 PRO, Top of CowlDECAL, HORSEPOWER , 200 PRO, Top of Cowl
-
-37-8M0110608 DECAL, HORSEPOWER , 200 PRO, Rear of CowlDECAL, HORSEPOWER , 200 PRO, Rear of Cowl
-
-37-8M0110611 DECAL, HORSEPOWER , 250 PRO, Top of CowlDECAL, HORSEPOWER , 250 PRO, Top of Cowl
-
-37-8M0110610 DECAL, HORSEPOWER , 250 PRO, Rear of CowlDECAL, HORSEPOWER , 250 PRO, Rear of Cowl
-
-37-8M0110613 DECAL, HORSEPOWER , 300 PRO, Top of CowlDECAL, HORSEPOWER , 300 PRO, Top of Cowl
-
-37-8M0110612 DECAL, HORSEPOWER , 300 PRO, Rear of CowlDECAL, HORSEPOWER , 300 PRO, Rear of Cowl
-
-37-8M0024870 DECAL, (Mercury Verado)
Air DamDECAL, (Mercury Verado)
Air Dam
