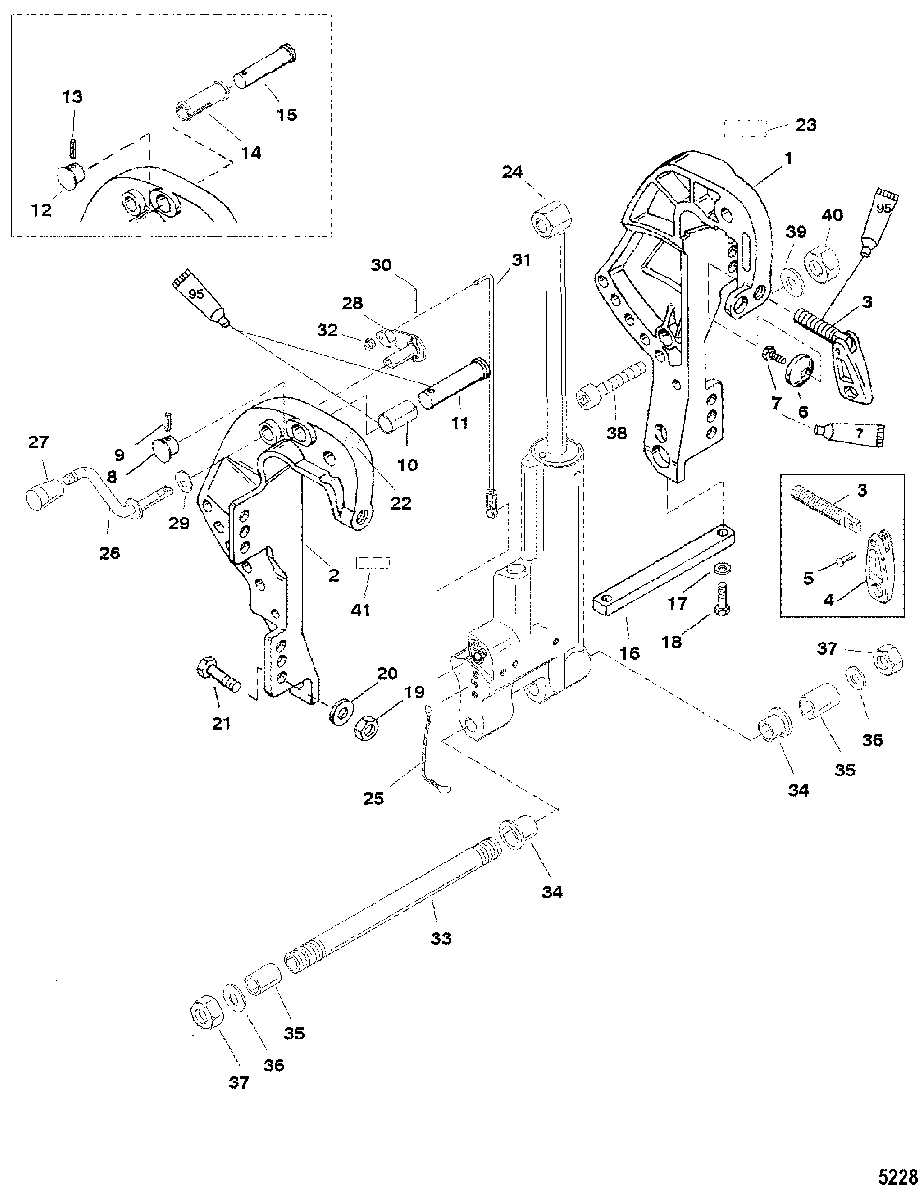

Clamp Bracket(Gas Assist Trim) для Mercury - 30 (2 CYL.) 0G760300 THRU 0T979999
-
№АртикулНазвание
-
13411-821773T1 CLAMP BRACKET
(Port)CLAMP BRACKET
(Port) -
23412-821774T8 CLAMP BRACKET
(Storboard)(Use With .56 O.D. Ref. #15)CLAMP BRACKET
(Storboard)(Use With .56 O.D. Ref. #15) -
23412-821774T8 CLAMP BRACKET
(Storboard)(Use With .75 O.D. Ref. #11)CLAMP BRACKET
(Storboard)(Use With .75 O.D. Ref. #11) -
310-818883A1 THUMB SCREW ASSEMBLY
(Manual)THUMB SCREW ASSEMBLY
(Manual) -
4NSS NOT SOLD SEPARATE, Handle-ManualNOT SOLD SEPARATE, Handle-Manual
-
5NSS NOT SOLD SEPARATE, Rivet-ManualNOT SOLD SEPARATE, Rivet-Manual
-
612-818884 WASHER
(Manual)WASHER
(Manual) -
710-768042 SHOULDER SCREW, Hex
(Manual)SHOULDER SCREW, Hex
(Manual) -
88224011 CAP
(O.D. of Ref. # 11 is .75 & Ref. # 10 Is NOT Flanged)CAP
(O.D. of Ref. # 11 is .75 & Ref. # 10 Is NOT Flanged) -
917-25810 PIN
(O.D. of Ref. # 11 is .75 & Ref. # 10 Is NOT Flanged)PIN
(O.D. of Ref. # 11 is .75 & Ref. # 10 Is NOT Flanged) -
1023-86637 BEARING
(O.D. of Ref. # 11 is .75 & Ref. # 10 Is NOT Flanged)BEARING
(O.D. of Ref. # 11 is .75 & Ref. # 10 Is NOT Flanged) -
1117-8224002 PIN, Tilt Stop
(O.D. of Ref. # 11 is .75 & Ref. # 10 Is NOT Flanged)PIN, Tilt Stop
(O.D. of Ref. # 11 is .75 & Ref. # 10 Is NOT Flanged) -
12822401 CAP, Tilt Stop Pin
(O.D. of Ref. # 15 is .56 & Ref. # 14 IS Flanged)CAP, Tilt Stop Pin
(O.D. of Ref. # 15 is .56 & Ref. # 14 IS Flanged) -
1317-25319 PIN, (.125 x 0.75 Inches)
(O.D. of Ref. # 15 is .56 & Ref. # 14 IS Flanged)PIN, (.125 x 0.75 Inches)
(O.D. of Ref. # 15 is .56 & Ref. # 14 IS Flanged) -
1423-823589 BUSHING
(O.D. of Ref. # 15 is .56 & Ref. # 14 IS Flanged)BUSHING
(O.D. of Ref. # 15 is .56 & Ref. # 14 IS Flanged) -
1517-8224001 PIN, Tilt Stop
(O.D. of Ref. # 15 is .56 & Ref. # 14 IS Flanged)PIN, Tilt Stop
(O.D. of Ref. # 15 is .56 & Ref. # 14 IS Flanged) -
1697-8252711 ANODEANODE
-
1712-29245 WASHER, (.281 x .500 x .060) Stainless SteelWASHER, (.281 x .500 x .060) Stainless Steel
-
1810-4000330 SCREW, (M6 x 25)SCREW, (M6 x 25)
-
1911-82671117 NUT, (.500-20)NUT, (.500-20)
-
2012-28421 WASHER, (1.5 x 3.05 x 0.13) Stainless SteelWASHER, (1.5 x 3.05 x 0.13) Stainless Steel
-
2110-814259 SCREW, (.500-20 x 4.00)SCREW, (.500-20 x 4.00)
-
2237-830253 DECAL, Tilt LockDECAL, Tilt Lock
-
23NSS NOT SOLD SEPARATE, Decal-WarningNOT SOLD SEPARATE, Decal-Warning
-
24828533T1 TRIM, Hydraulic Assist
(Gas Assist Trim)TRIM, Hydraulic Assist
(Gas Assist Trim) -
2588238A11 CABLE ASSEMBLY
(Gas Assist Trim)CABLE ASSEMBLY
(Gas Assist Trim) -
26828924 LEVER, Tilt
(Gas Assist Trim)LEVER, Tilt
(Gas Assist Trim) -
278M0007469 TILT KNOB
(Gas Assist Trim)TILT KNOB
(Gas Assist Trim) -
28828930 ARM, Lever
(Gas Assist Trim)ARM, Lever
(Gas Assist Trim) -
2913-31030 WAVE WASHER
(Gas Assist Trim)WAVE WASHER
(Gas Assist Trim) -
3017-25319 PIN, (.125 x 0.75 Inches)
(Gas Assist Trim)PIN, (.125 x 0.75 Inches)
(Gas Assist Trim) -
318289961 LINK
(Gas Assist Trim)LINK
(Gas Assist Trim) -
3211-826709106 NUT, (#10-32)
(Gas Assist Trim)NUT, (#10-32)
(Gas Assist Trim) -
3317-822481001 PIN, Anchor (14 mm)
(Gas Assist/Power Trim)PIN, Anchor (14 mm)
(Gas Assist/Power Trim) -
3423-822482 BUSHING
(Gas Assist/Power Trim)BUSHING
(Gas Assist/Power Trim) -
3523-822484 BUSHING
(Gas Assist/Power Trim)BUSHING
(Gas Assist/Power Trim) -
3612-825190 WASHER
(Gas Assist/Power Trim)WASHER
(Gas Assist/Power Trim) -
3711-826712 NUT
(Gas Assist/Power Trim)NUT
(Gas Assist/Power Trim) -
3810-4009040 SCREW, (M10 x 40) Stainless Steel
(Gas Assist/Power Trim)SCREW, (M10 x 40) Stainless Steel
(Gas Assist/Power Trim) -
3912-4002319 WASHER
(Gas Assist/Power Trim)WASHER
(Gas Assist/Power Trim) -
4011-40140 NUT, (M10)
(Gas Assist/Power Trim)NUT, (M10)
(Gas Assist/Power Trim) -
41NSS NOT SOLD SEPARATE, Decal-Shallow Water DriveNOT SOLD SEPARATE, Decal-Shallow Water Drive
