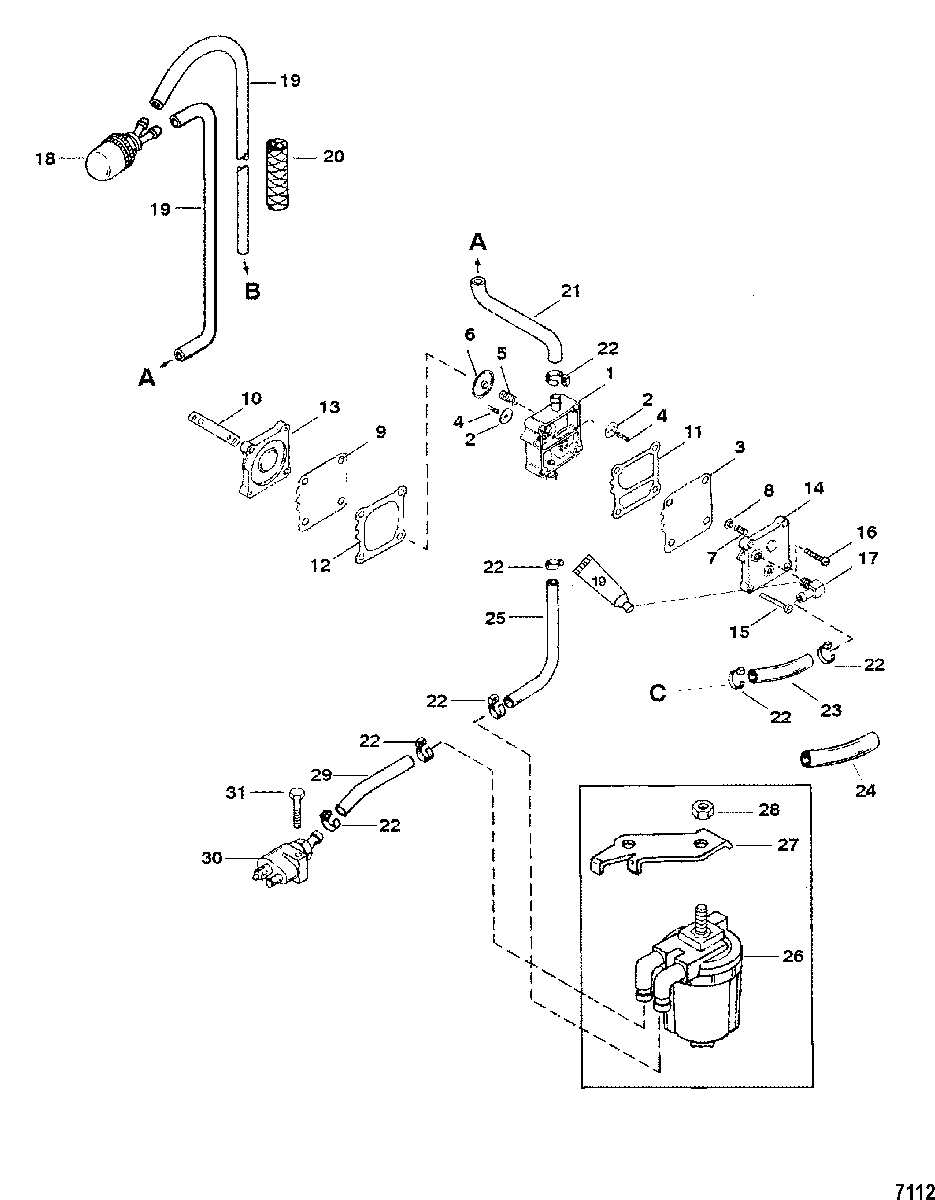

Fuel Pump(Manual)(Design I) для Mercury - 30 (2 CYL.) 0G760300 THRU 0T979999
-
№АртикулНазвание
-
-14360A78 PUMP ASSEMBLY, FuelPUMP ASSEMBLY, Fuel
-
1NSS NOT SOLD SEPARATE, Fuel PumpNOT SOLD SEPARATE, Fuel Pump
-
221-857005A1 DIAPHRAGM KITDIAPHRAGM KIT
-
3NSS NOT SOLD SEPARATE, DiaphragmNOT SOLD SEPARATE, Diaphragm
-
4NSS NOT SOLD SEPARATE, RetainerNOT SOLD SEPARATE, Retainer
-
5NSS NOT SOLD SEPARATE, SpringNOT SOLD SEPARATE, Spring
-
6NSS NOT SOLD SEPARATE, CapNOT SOLD SEPARATE, Cap
-
7NSS NOT SOLD SEPARATE, SpringNOT SOLD SEPARATE, Spring
-
8NSS NOT SOLD SEPARATE, CapNOT SOLD SEPARATE, Cap
-
9NSS NOT SOLD SEPARATE, DiaphragmNOT SOLD SEPARATE, Diaphragm
-
1027-987691 GASKETGASKET
-
11NSS NOT SOLD SEPARATE, Gasket-BoostNOT SOLD SEPARATE, Gasket-Boost
-
12NSS NOT SOLD SEPARATE, Gasket-PulseNOT SOLD SEPARATE, Gasket-Pulse
-
13144303 BASEBASE
-
14987752 PLATEPLATE
-
1510-82104540 SCREW, (M5 x 40)SCREW, (M5 x 40)
-
1610-82130050 SCREW, (M6 x 50)SCREW, (M6 x 50)
-
1722-433351 CONNECTOR, 90 Degree (.125-27) NylonCONNECTOR, 90 Degree (.125-27) Nylon
-
18858763 PRIMER BULBPRIMER BULB
-
1932-892024122 TUBING, (20.00 Feet Bulk)TUBING, (20.00 Feet Bulk)
-
2023-82538115 SLEEVE, (.500 x 5.00)SLEEVE, (.500 x 5.00)
-
2132-830764 HOSEHOSE
-
2254-816311T TIE STRAP, (8.00 Inches)TIE STRAP, (8.00 Inches)
-
2332-9912878 HOSE, (.187) (26.00 Inches Bulk) (Cut to 3.25 Inch Length)HOSE, (.187) (26.00 Inches Bulk) (Cut to 3.25 Inch Length)
-
248507051 INSULATORINSULATOR
-
2532-830765 HOSE, MoldedHOSE, Molded
-
2635-8M0063726 FILTER, FuelFILTER, Fuel
-
27822387 BRACKETBRACKET
-
2811-401366 NUT, (M6) Stainless SteelNUT, (M6) Stainless Steel
-
2932-8M0108349 TUBING, (.312) (70.00 Inches Bulk) (Cut to 14.25 Inch Length)TUBING, (.312) (70.00 Inches Bulk) (Cut to 14.25 Inch Length)
-
3022-816856T01 CONNECTOR ASSEMBLY, FuelCONNECTOR ASSEMBLY, Fuel
-
3110-4000332 SCREW, (M6 x 35)SCREW, (M6 x 35)
-
-27-822420A94 GASKET SETGASKET SET
-
-808569T02 POWERHEAD ASSEMBLY
30 HPPOWERHEAD ASSEMBLY
30 HP -
-61-8M0063311 POWERHEAD ASSEMBLY
40 HPPOWERHEAD ASSEMBLY
40 HP
