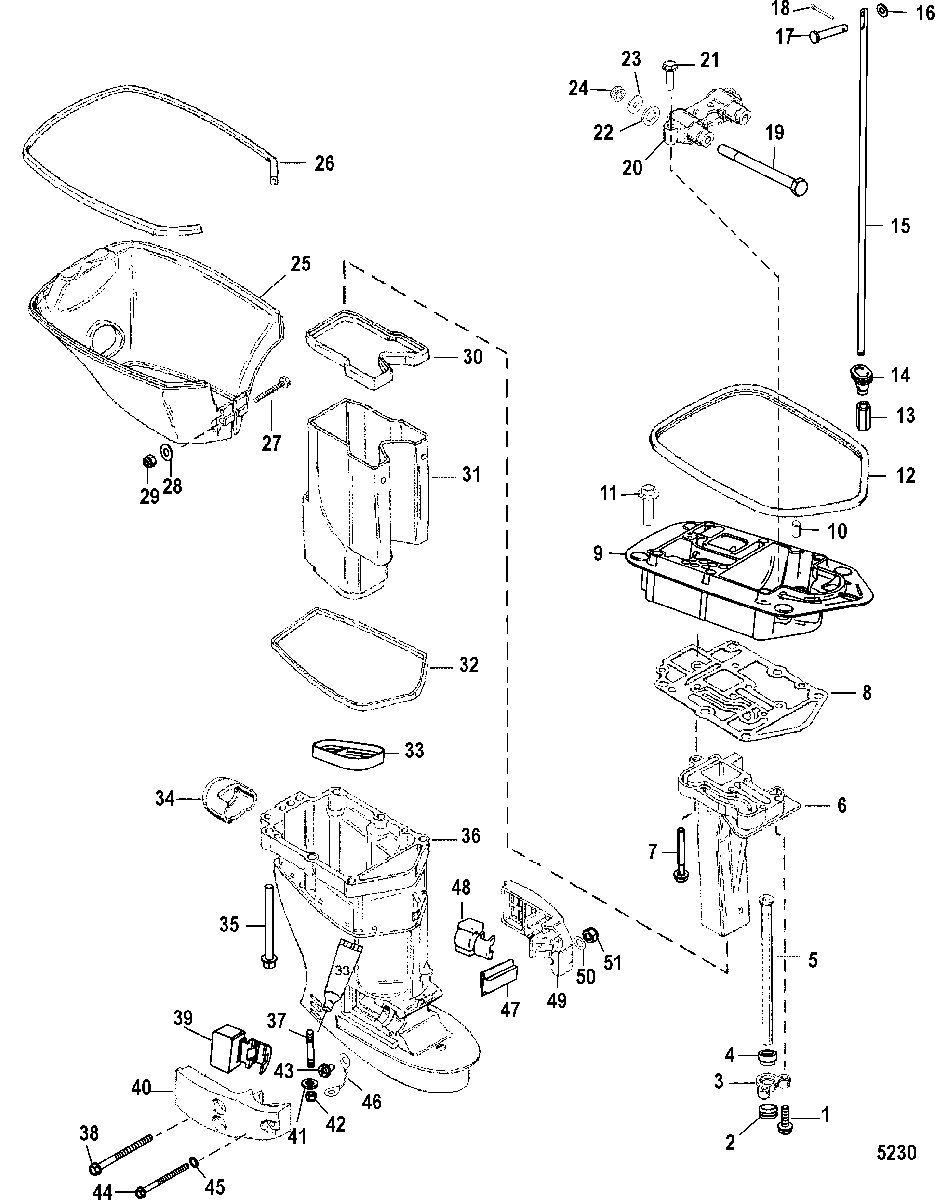

Driveshaft Housing для Mercury - 30 (2 CYL.) 0P017000 THRU 0P325499
-
№АртикулНазвание
-
110-40011155 SCREW, (M8 x 55) Stainless SteelSCREW, (M8 x 55) Stainless Steel
-
225-93221002 GROMMETGROMMET
-
399019 CLAMPCLAMP
-
442941001 SEAL, Water TubeSEAL, Water Tube
-
532-8M0042795 TUBE, Water
(Short)TUBE, Water
(Short) -
532-8M0042794 TUBE, Water
(Long)TUBE, Water
(Long) -
68M0046061 TUBE, ExhaustTUBE, Exhaust
-
710-40011153 SCREW, (M8 x 45) Stainless SteelSCREW, (M8 x 45) Stainless Steel
-
827-8M0000821 GASKET, Driveshaft HousingGASKET, Driveshaft Housing
-
9821439T4 ADAPTOR PLATEADAPTOR PLATE
-
1017-23784 PIN, DowelPIN, Dowel
-
1110-4010875 SCREW, (M10 x 75) Hex Flange - Stainless SteelSCREW, (M10 x 75) Hex Flange - Stainless Steel
-
128M0043148 SEAL, Bottom CowlSEAL, Bottom Cowl
-
13822419 COUPLERCOUPLER
-
1425-822408001 GROMMET, Shift ShaftGROMMET, Shift Shaft
-
15880042 SHIFT SHAFT, UpperSHIFT SHAFT, Upper
-
1612-89302 WASHER, (.203 x .406 x .040)WASHER, (.203 x .406 x .040)
-
1717-822417 PINPIN
-
1818-210711 COTTER PINCOTTER PIN
-
198M0000520 SCREW, (M12 x 162)SCREW, (M12 x 162)
-
201400-8M4501487 MOUNTMOUNT
-
2110-40011153 SCREW, (M8 x 45) Stainless SteelSCREW, (M8 x 45) Stainless Steel
-
2212-32834 WASHER, NeopreneWASHER, Neoprene
-
2312-28421 WASHER, (1.5 x 3.05 x 0.13) Stainless SteelWASHER, (1.5 x 3.05 x 0.13) Stainless Steel
-
2411-896963 NUT, (M12)NUT, (M12)
-
25821512A4 TRIM COVERTRIM COVER
-
268M0043155 BUMPERBUMPER
-
2710-826173 SCREW, (M5 x .8 x 60)SCREW, (M5 x .8 x 60)
-
2812-73288 WASHER, (.220 x .500 x .030) Stainless SteelWASHER, (.220 x .500 x .030) Stainless Steel
-
2911-400263 NUT, (M5)NUT, (M5)
-
308249423 SEAL, Exhaust BucketSEAL, Exhaust Bucket
-
318M0036863 BUCKET, ExhaustBUCKET, Exhaust
-
328M0043170 BUMPER, Trim CoverBUMPER, Trim Cover
-
33822395001 SEAL, Exhaust TubeSEAL, Exhaust Tube
-
34822422001 SEAL, Idle ReliefSEAL, Idle Relief
-
3510-817430110 SCREW, (M10 x 110)SCREW, (M10 x 110)
-
363525-821841T7 HOUSING, Driveshaft
(Short)HOUSING, Driveshaft
(Short) -
363531-821447T10 HOUSING, Driveshaft
(Long)HOUSING, Driveshaft
(Long) -
3716-823984 STUD, (M10 x 50)
(Short/Long)STUD, (M10 x 50)
(Short/Long) -
3716-824083 STUD, (M10 x 114)
(LL)STUD, (M10 x 114)
(LL) -
3810-824459120 SCREW, (M8 x 120) Stainless SteelSCREW, (M8 x 120) Stainless Steel
-
39821781003 MOUNTMOUNT
-
40821780T5 COVER, MountCOVER, Mount
-
4112-856774 WASHER, (.406 x .750 x .105) Stainless SteelWASHER, (.406 x .750 x .105) Stainless Steel
-
4211-40140 NUT, (M10)NUT, (M10)
-
4310-878607 SCREW, (#10-16 x .375)SCREW, (#10-16 x .375)
-
4410-82445965 SCREW, (M8 x 65) Stainless SteelSCREW, (M8 x 65) Stainless Steel
-
4513-72521 LOCKWASHER, Internal ToothLOCKWASHER, Internal Tooth
-
4688238A11 CABLE ASSEMBLYCABLE ASSEMBLY
-
47821782002 BUMPER, FrontBUMPER, Front
-
48821781003 MOUNTMOUNT
-
49821780T5 COVER, MountCOVER, Mount
-
5012-36001 WASHERWASHER
-
5111-401378 NUT, (M8)NUT, (M8)
-
-27-822420A94 GASKET SETGASKET SET
