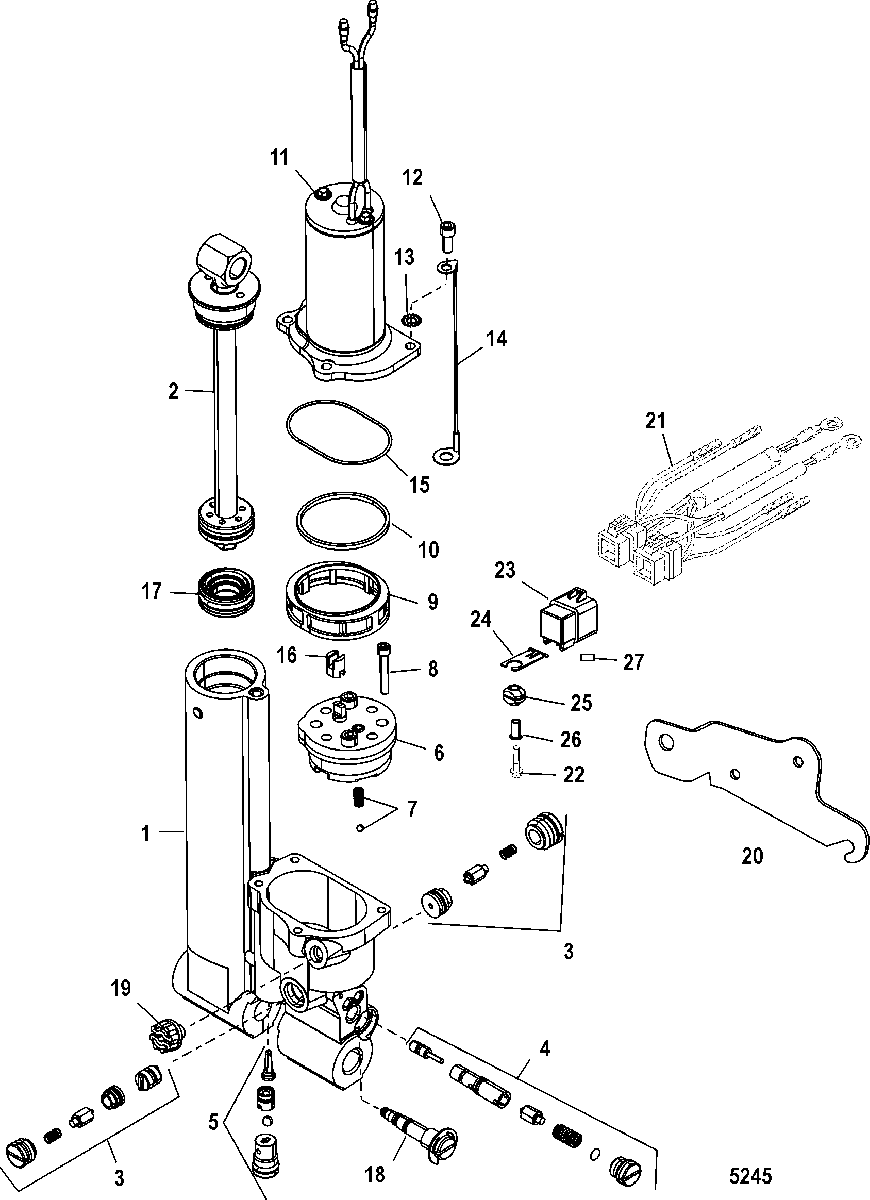

Power Trim для Mercury - 30 (2 CYL.) 0P017000 THRU 0P325499
-
№АртикулНазвание
-
1822344T14 POWER TRIM ASSEMBLYPOWER TRIM ASSEMBLY
-
-25-827668A1 O-RING KITO-RING KIT
-
2893931A01 SHOCK ROD ASSEMBLYSHOCK ROD ASSEMBLY
-
3827671A1 PILOT CHECK ASSEMBLYPILOT CHECK ASSEMBLY
-
4827672A1 TILT RELIEF VALVE ASSEMBLYTILT RELIEF VALVE ASSEMBLY
-
5827673A1 SEAT ASSEMBLY, SuctionSEAT ASSEMBLY, Suction
-
6827674A1 PUMP ASSEMBLYPUMP ASSEMBLY
-
7NSS NOT SOLD SEPARATE, Ball and SpringNOT SOLD SEPARATE, Ball and Spring
-
8NSS NOT SOLD SEPARATE, ScrewNOT SOLD SEPARATE, Screw
-
9NSS NOT SOLD SEPARATE, FilterNOT SOLD SEPARATE, Filter
-
10NSS NOT SOLD SEPARATE, O RingNOT SOLD SEPARATE, O Ring
-
11827675A1 MOTOR ASSEMBLYMOTOR ASSEMBLY
-
12NSS NOT SOLD SEPARATE, ScrewNOT SOLD SEPARATE, Screw
-
13NSS NOT SOLD SEPARATE, WasherNOT SOLD SEPARATE, Washer
-
1488238A15 CABLE ASSEMBLYCABLE ASSEMBLY
-
15NSS NOT SOLD SEPARATE, O RingNOT SOLD SEPARATE, O Ring
-
16NSS NOT SOLD SEPARATE, CouplerNOT SOLD SEPARATE, Coupler
-
17827676 PISTON, MemoryPISTON, Memory
-
18893929A01 MANUAL RELEASE ASSEMBLYMANUAL RELEASE ASSEMBLY
-
1919-811613 PLUG ASSEMBLYPLUG ASSEMBLY
-
20830238T BRACKETBRACKET
-
2184-826802A9 HARNESS ASSEMBLY, Trim, TrimHARNESS ASSEMBLY, Trim, Trim
-
2210-82129125 SCREW, (M6 x 25 MM)SCREW, (M6 x 25 MM)
-
23882751A1 RELAY ASSEMBLYRELAY ASSEMBLY
-
24828102 BRACKETBRACKET
-
2525-818967 GROMMETGROMMET
-
2623-818968 BUSHINGBUSHING
-
27NSS NOT SOLD SEPARATE, Decal-Trim RelayNOT SOLD SEPARATE, Decal-Trim Relay
