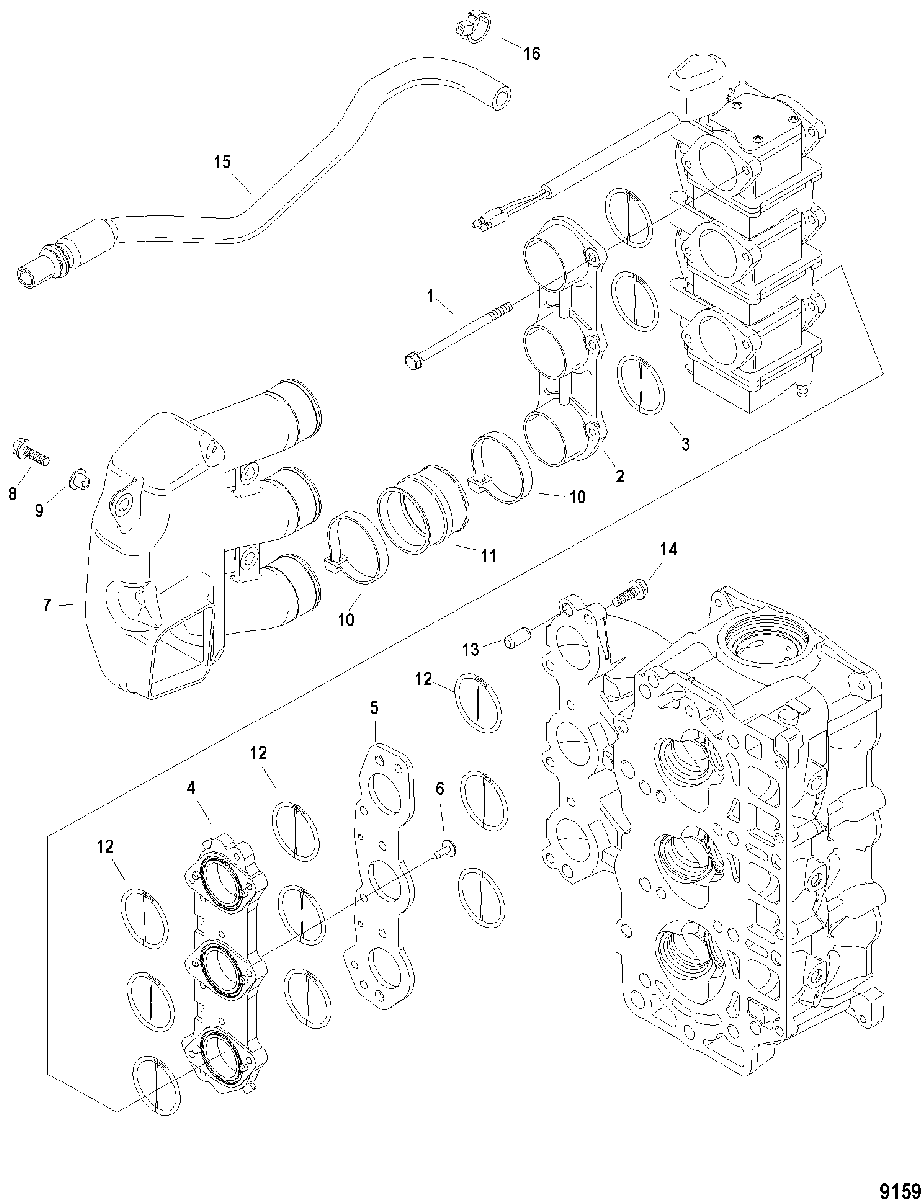

Intake для Mercury - 30 (4-STROKE) 0P017000 THRU 0P153499
-
№АртикулНазвание
-
110-82615890 SCREW, (M6 x 90)SCREW, (M6 x 90)
-
2856126T INTAKE, AirINTAKE, Air
-
325-856525 O-RINGO-RING
-
4834783T PLATEPLATE
-
5834784T ISOLATOR
(40)ISOLATOR
(40) -
5834784T1 ISOLATOR
(30)ISOLATOR
(30) -
619-827633 PLUGPLUG
-
7856127A2 ATTENUATOR, SoundATTENUATOR, Sound
-
810-8M4503518 SCREW, (M6 x 20) Stainless SteelSCREW, (M6 x 20) Stainless Steel
-
923-17044M BUSHINGBUSHING
-
1054-850181 TIE STRAP, (11.750 Inches)TIE STRAP, (11.750 Inches)
-
1126-856128001 SEALSEAL
-
1225-8250572 O-RINGO-RING
-
1317-23784 PIN, DowelPIN, Dowel
-
1410-8248326 SCREW, (M6 x 25 MM)SCREW, (M6 x 25 MM)
-
1532-8M0021347 BREATHER HOSEBREATHER HOSE
-
1654-816311T TIE STRAP, (8.00 Inches)TIE STRAP, (8.00 Inches)
-
-27-825231A99 GASKET SET, EngineGASKET SET, Engine
