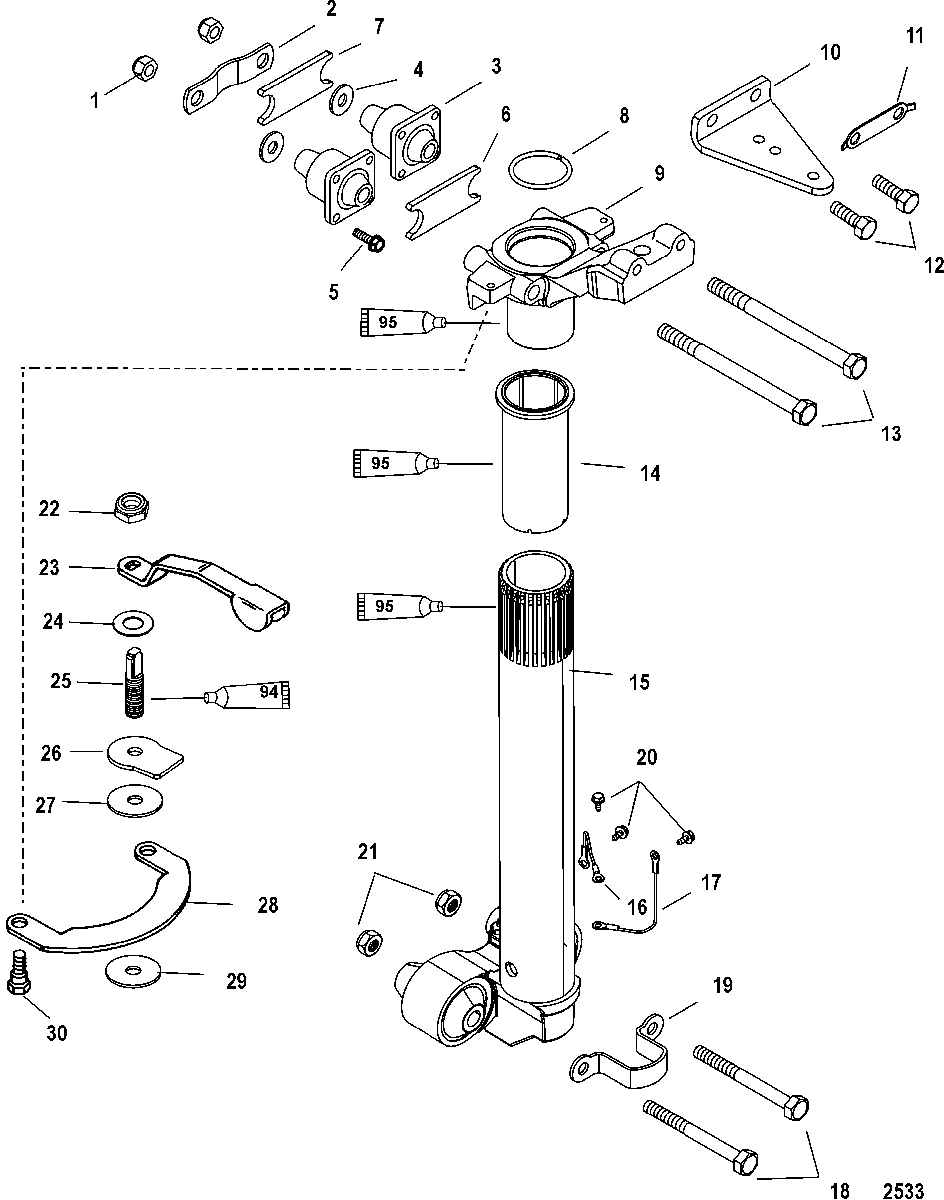

Steering Arm для Mercury - 30 (4-STROKE) 0P017000 THRU 0P153499
-
№АртикулНазвание
-
111-896963 NUT, (M12)NUT, (M12)
-
2893773002 STRAPSTRAP
-
3893655T MOUNTMOUNT
-
412-4002321 WASHER, (12.80 mm x 24.0 mm x 2.4 mm) Stainless Steel
(BIGFOOT)WASHER, (12.80 mm x 24.0 mm x 2.4 mm) Stainless Steel
(BIGFOOT) -
510-8M4503518 SCREW, (M6 x 20) Stainless SteelSCREW, (M6 x 20) Stainless Steel
-
6826658 BUMPERBUMPER
-
7826658 BUMPER
(BIGFOOT)BUMPER
(BIGFOOT) -
853-89531 RING, RetainingRING, Retaining
-
98M0118183 ARM, SteeringARM, Steering
-
10893696 BRACKET
(ELECTRIC)BRACKET
(ELECTRIC) -
1114-8M0009820 TAB WASHER
(ELECTRIC)TAB WASHER
(ELECTRIC) -
1210-4000377 SCREW, (M10 x 30)
(ELECTRIC)SCREW, (M10 x 30)
(ELECTRIC) -
1310-898835001 BOLT, (M12 x 154)BOLT, (M12 x 154)
-
1423-8279973 SPACER
(SHORT)SPACER
(SHORT) -
1423-8279971 SPACER
(LONG)SPACER
(LONG) -
15850175T03 SWIVEL TUBE
(SHORT)SWIVEL TUBE
(SHORT) -
15893590T01 SWIVEL TUBE
(LONG)SWIVEL TUBE
(LONG) -
1684-88238T01 CABLE ASSEMBLYCABLE ASSEMBLY
-
1788238A13 CABLE ASSEMBLY, GroundCABLE ASSEMBLY, Ground
-
1810-823567105 SCREW, (M10 x 105) Hex Flange - Stainless SteelSCREW, (M10 x 105) Hex Flange - Stainless Steel
-
19893703 BRACKETBRACKET
-
2010-878607 SCREW, (#10-16 x .380)SCREW, (#10-16 x .380)
-
2111-40140 NUT, (M10)NUT, (M10)
-
2211-8M0042636 NUT, (.375-24)
(HANDLE)NUT, (.375-24)
(HANDLE) -
23823792 LEVER
(HANDLE)LEVER
(HANDLE) -
2412-29330 WASHER
(HANDLE)WASHER
(HANDLE) -
25821961 ROD (THREADED)
(HANDLE)ROD (THREADED)
(HANDLE) -
26821957 BRAKE PLATE
(HANDLE)BRAKE PLATE
(HANDLE) -
278165621 DISC
(HANDLE)DISC
(HANDLE) -
288M0007471 PLATE
(HANDLE)PLATE
(HANDLE) -
298165621 DISC
(HANDLE)DISC
(HANDLE) -
3010-768042 SHOULDER SCREW, Hex
(HANDLE)SHOULDER SCREW, Hex
(HANDLE)
