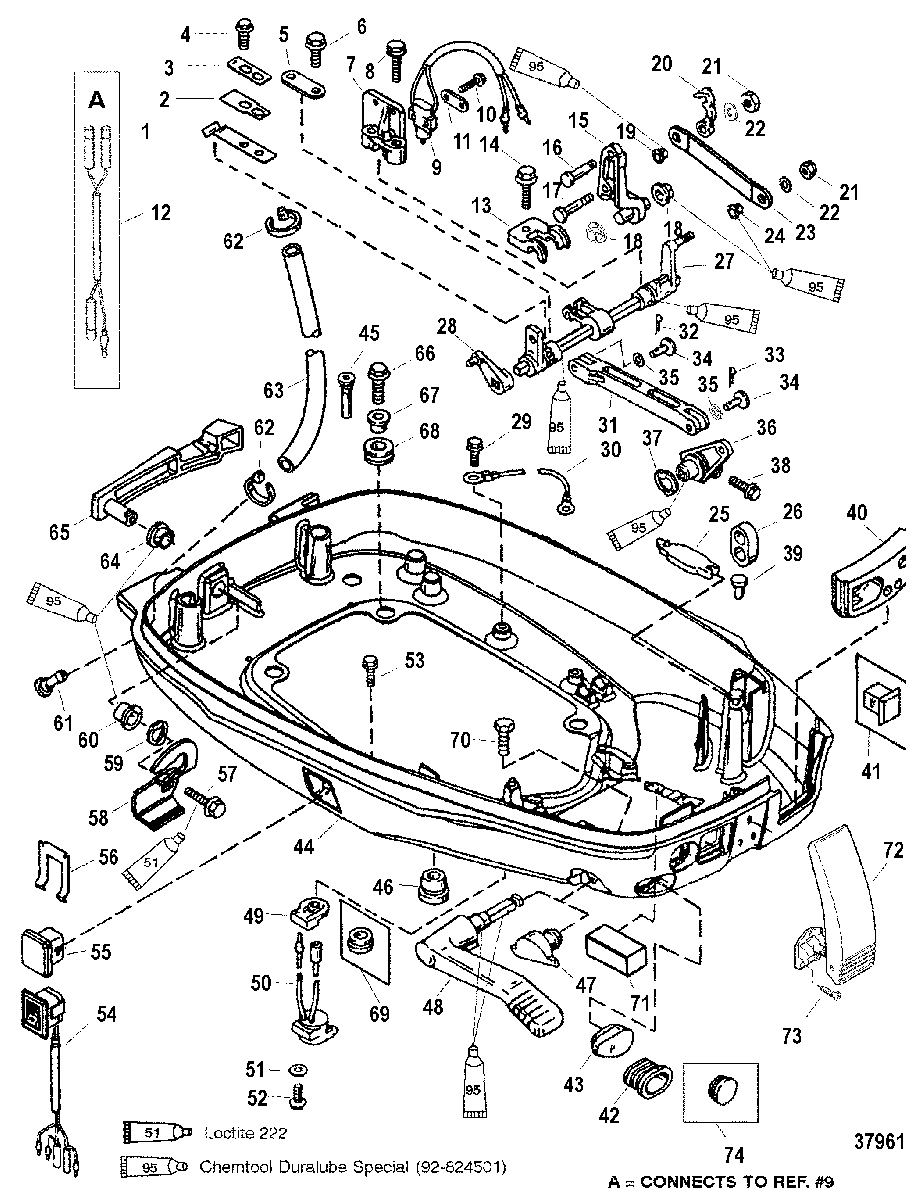

BOTTOM COWL для Mercury - 30 JET (3 CYL.) 0G590000 THRU 0G760299
-
№АртикулНазвание
-
124-824992 SPRING, DetentSPRING, Detent
-
224-824993 SPRING, BackingSPRING, Backing
-
3824994 SPRING, PlateSPRING, Plate
-
410-82191916 SCREW, (M5 x 14)SCREW, (M5 x 14)
-
58280471 STRAPSTRAP
-
610-4006731 SCREW, (M6 x 16) Stainless SteelSCREW, (M6 x 16) Stainless Steel
-
78M0039049 CLAMPCLAMP
-
810-40011130 SCREW, (M6 x 30) Stainless SteelSCREW, (M6 x 30) Stainless Steel
-
987-8M0052927 SWITCH
ELECTRIC HANDLESWITCH
ELECTRIC HANDLE -
1010-88075020 SCREW, (M3.5 x 20) Stainless Steel
ELECTRIC HANDLESCREW, (M3.5 x 20) Stainless Steel
ELECTRIC HANDLE -
11824923 PLATE
ELECTRIC HANDLEPLATE
ELECTRIC HANDLE -
1284-824934A3 HARNESS ASSEMBLY
ELECTRIC HANDLEHARNESS ASSEMBLY
ELECTRIC HANDLE -
138M0036802 CAP
NON-HANDLE VERSIONSCAP
NON-HANDLE VERSIONS -
1410-4006731 SCREW, (M6 x 16) Stainless Steel
NON-HANDLE VERSIONSSCREW, (M6 x 16) Stainless Steel
NON-HANDLE VERSIONS -
158M0041741 LEVER
NON-HANDLE VERSIONSLEVER
NON-HANDLE VERSIONS -
1642927 INSERT
NON-HANDLE VERSIONSINSERT
NON-HANDLE VERSIONS -
1717-8224561 PIN
NON-HANDLE VERSIONSPIN
NON-HANDLE VERSIONS -
1823-26954 BUSHING
NON-HANDLE VERSIONSBUSHING
NON-HANDLE VERSIONS -
1923-48475 BUSHING
NON-HANDLE VERSIONSBUSHING
NON-HANDLE VERSIONS -
20822459 RETAINER
NON-HANDLE VERSIONSRETAINER
NON-HANDLE VERSIONS -
2111-401386 NUT, (M6)
NON-HANDLE VERSIONSNUT, (M6)
NON-HANDLE VERSIONS -
2212-69056 WASHER, (.255 x .620 x .030) Stainless Steel
NON-HANDLE VERSIONSWASHER, (.255 x .620 x .030) Stainless Steel
NON-HANDLE VERSIONS -
238224701 LINK, Shift
NON-HANDLE VERSIONSLINK, Shift
NON-HANDLE VERSIONS -
2423-48475 BUSHING
NON-HANDLE VERSIONSBUSHING
NON-HANDLE VERSIONS -
2598889 LATCH
NON-HANDLE VERSIONSLATCH
NON-HANDLE VERSIONS -
2639519 CUP
NON-HANDLE VERSIONSCUP
NON-HANDLE VERSIONS -
27821483A6 SHIFT SHAFT, HorizontalSHIFT SHAFT, Horizontal
-
28821487 LEVER, -INTERLOCK ACTUATING
(MANUAL)LEVER, -INTERLOCK ACTUATING
(MANUAL) -
2910-878607 SCREW, (#10-16 x .380)SCREW, (#10-16 x .380)
-
3084-88807A28 CABLE ASSEMBLY (BLACK-7 1/2 IN.)CABLE ASSEMBLY (BLACK-7 1/2 IN.)
-
318M0037997 SHIFT ROD
HANDLESHIFT ROD
HANDLE -
3218-210711 COTTER PIN
HANDLECOTTER PIN
HANDLE -
3318-210711 COTTER PIN
HANDLECOTTER PIN
HANDLE -
3417-8251851 PIN
HANDLEPIN
HANDLE -
3513-827418 LOCKWASHER
HANDLELOCKWASHER
HANDLE -
36822011 LEVER, Shift
HANDLELEVER, Shift
HANDLE -
3713-825273 WAVE WASHER
HANDLEWAVE WASHER
HANDLE -
3810-40011107 SCREW, (M5 x 16) Stainless Steel
HANDLESCREW, (M5 x 16) Stainless Steel
HANDLE -
3910-42975 DRIVE SCREWDRIVE SCREW
-
4025-828462001 GROMMETGROMMET
-
4119-17230 PLUGPLUG
-
42822424001 SEAL
(HANDLE VERSIONS)SEAL
(HANDLE VERSIONS) -
4319-823874001 SEAL
(NON HANDLE VERSIONS)SEAL
(NON HANDLE VERSIONS) -
444023-828165A1 BOTTOM COWL
(BLACK)BOTTOM COWL
(BLACK) -
444023-828165A2 BOTTOM COWL
(GRAY)BOTTOM COWL
(GRAY) -
4521-817519A1 CHECK VALVE ASSEMBLY, DrainCHECK VALVE ASSEMBLY, Drain
-
4625-19565002 GROMMET
(SPLIT - POWER TRIM)GROMMET
(SPLIT - POWER TRIM) -
4625-19564001 GROMMET
(NON POWER TRIM)GROMMET
(NON POWER TRIM) -
4719-824076001 PLUG
(NON HANDLE VERSIONS)PLUG
(NON HANDLE VERSIONS) -
488214901 HANDLE
MANUAL HANDLEHANDLE
MANUAL HANDLE -
49823572001 SEAL
MANUAL HANDLESEAL
MANUAL HANDLE -
5084-8M3001068 ALARM ASSEMBLY, Audio Warning
MANUAL HANDLEALARM ASSEMBLY, Audio Warning
MANUAL HANDLE -
5112-4002316 WASHER
MANUAL HANDLEWASHER
MANUAL HANDLE -
5210-82239312 SCREW, (M5 x 12)
MANUAL HANDLESCREW, (M5 x 12)
MANUAL HANDLE -
5310-878608 SCREW, (#10-16 x .500)
(MANUAL) MANUAL HANDLESCREW, (#10-16 x .500)
(MANUAL) MANUAL HANDLE -
5487-8M0042301 SWITCH
(POWER TRIM)SWITCH
(POWER TRIM) -
55812830T01 PLUG
(NON POWER TRIM)PLUG
(NON POWER TRIM) -
568M0032848 RETAINERRETAINER
-
5710-82130016 SCREW, (M6 x 16)SCREW, (M6 x 16)
-
58828464 CAM, LatchCAM, Latch
-
5913-12134 WASHER, WaveWASHER, Wave
-
6023-812707 BUSHINGBUSHING
-
6122-813613 FITTINGFITTING
-
6254-816311T TIE STRAP, (8.00 Inches)TIE STRAP, (8.00 Inches)
-
6332-7568058 HOSE, (15.00 Inches)HOSE, (15.00 Inches)
-
6423-812707 BUSHINGBUSHING
-
65823573F1 LEVER, Cowl Latch
(BLACK)LEVER, Cowl Latch
(BLACK) -
65823573F2 LEVER, Cowl Latch
(GRAY)LEVER, Cowl Latch
(GRAY) -
6610-40011129 SCREW, (M6 x 25) Stainless SteelSCREW, (M6 x 25) Stainless Steel
-
6723-822003 BUSHINGBUSHING
-
6825-822002 GROMMETGROMMET
-
6919-824473 PLUG
(ELECTRIC)PLUG
(ELECTRIC) -
7010-40011107 SCREW, (M5 x 16) Stainless Steel, INTERLOCK CABLESCREW, (M5 x 16) Stainless Steel, INTERLOCK CABLE
-
718M0043169 BUMPERBUMPER
-
72828463 LATCH, FrontLATCH, Front
-
7310-4001987 SCREW, (M4 x 16)SCREW, (M4 x 16)
-
7425-16226 GROMMETGROMMET
