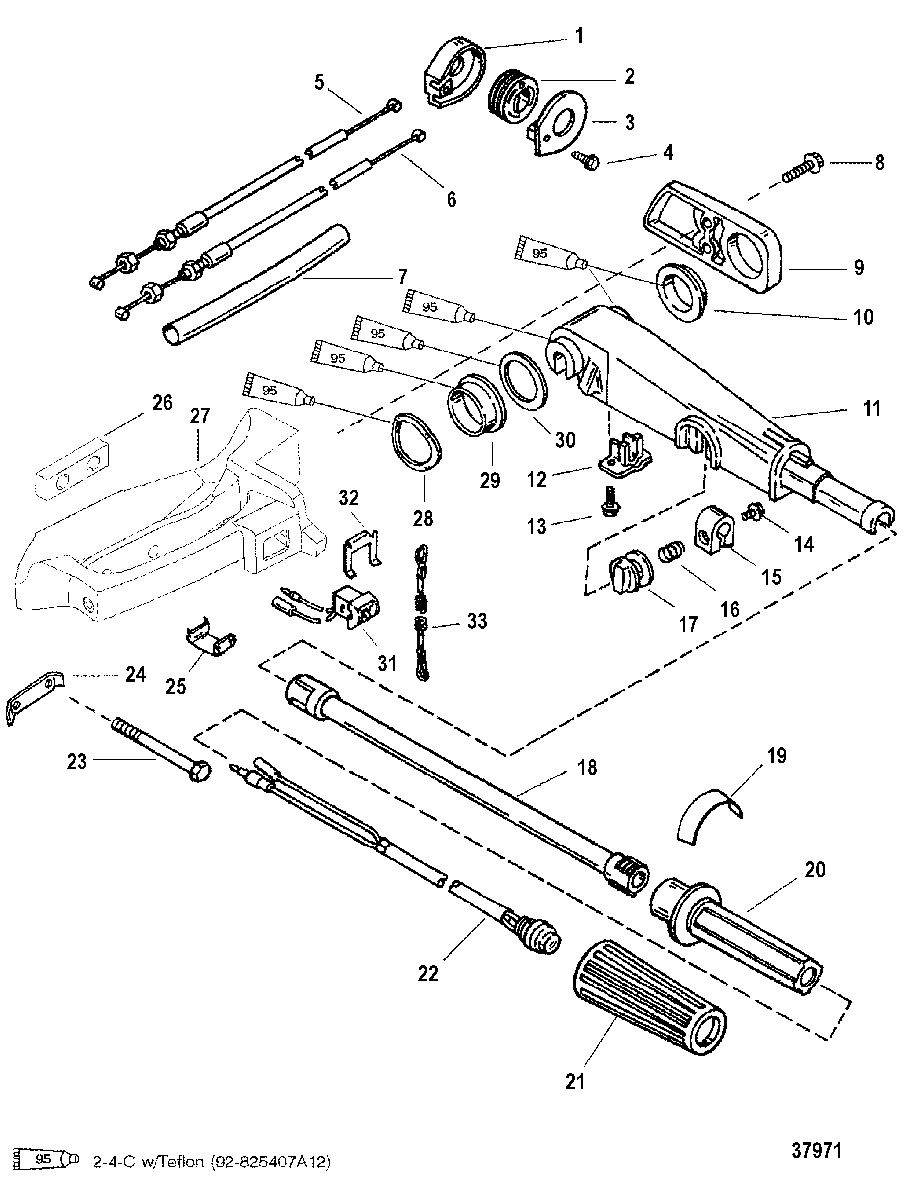

TILLER HANDLE для Mercury - 30 JET (3 CYL.) 0G590000 THRU 0G760299
-
№АртикулНазвание
-
1822148A7 COVER KITCOVER KIT
-
2822150 PULLEYPULLEY
-
3NSS NOT SOLD SEPARATE, CaseNOT SOLD SEPARATE, Case
-
410-878608 SCREW, (#10-16 x .500)SCREW, (#10-16 x .500)
-
54324212 CABLE ASSEMBLY, Throttle (28.50 Inches)CABLE ASSEMBLY, Throttle (28.50 Inches)
-
64324213 CABLE ASSEMBLY, Throttle (30.00 Inches)CABLE ASSEMBLY, Throttle (30.00 Inches)
-
785-960099 SLEEVE, (12.00 Inches)SLEEVE, (12.00 Inches)
-
810-82526225 SCREW, (M8 x 25)SCREW, (M8 x 25)
-
98M0072298 COVER
(BLACK)COVER
(BLACK) -
9822407F2 COVER
(GRAY)COVER
(GRAY) -
1023-821477 BUSHINGBUSHING
-
11828813T1 ARM
(BLACK)ARM
(BLACK) -
11828813T1 ARM, Steering Handle
(GRAY)ARM, Steering Handle
(GRAY) -
12822441 RETAINERRETAINER
-
1310-40011107 SCREW, (M5 x 16) Stainless SteelSCREW, (M5 x 16) Stainless Steel
-
1410-4000330 SCREW, (M6 x 25)SCREW, (M6 x 25)
-
15892995 LOCK, ThrottleLOCK, Throttle
-
1624-96203 SPRINGSPRING
-
17821972T KNOB, ThrottleKNOB, Throttle
-
188M0138696 TILLER TUBETILLER TUBE
-
1937-8242004 DECAL
(TURTLE/RABBIT)DECAL
(TURTLE/RABBIT) -
20821465 HANDLE, ThrottleHANDLE, Throttle
-
2199589003 GRIPGRIP
-
2287-8M0104614 SWITCH ASSEMBLYSWITCH ASSEMBLY
-
2310-824848110 SCREW, (M10 x 110)SCREW, (M10 x 110)
-
2414-8M0009820 TAB WASHERTAB WASHER
-
25823687 CLIPCLIP
-
2623-828569 SPACERSPACER
-
27821455A4 BRACKET, Tiller
(BLACK)BRACKET, Tiller
(BLACK) -
27821455A4 BRACKET, Tiller
(GRAY)BRACKET, Tiller
(GRAY) -
2813-826792 WAVE WASHERWAVE WASHER
-
2923-821477 BUSHINGBUSHING
-
3012-827314 WASHERWASHER
-
3187-11083A31 SWITCHSWITCH
-
328M0032846 RETAINER, BrassRETAINER, Brass
-
338M0092850 LANYARD ASSEMBLYLANYARD ASSEMBLY
