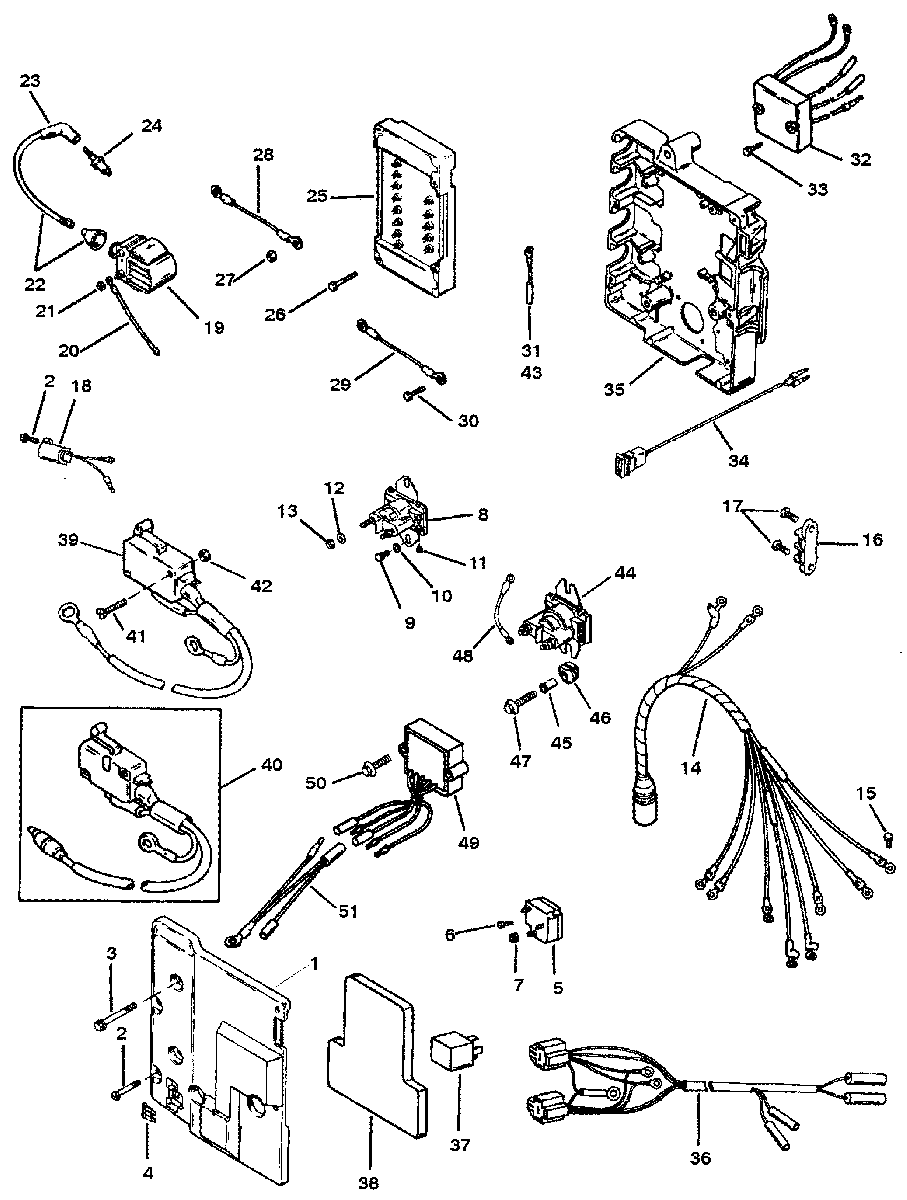

ELECTRICAL BOX COMPONENTS для Mercury - 30 JET 9570790 AND UP
-
№АртикулНазвание
-
119106 COVER-ELECTRICAL BOXCOVER-ELECTRICAL BOX
-
210-418051 SCREW-MERCURY SWITCH AND COVERSCREW-MERCURY SWITCH AND COVER
-
310-19639 SCREW-COVER AND BOX TO ENGINESCREW-COVER AND BOX TO ENGINE
-
488-812619 FUSE
ELECTRICFUSE
ELECTRIC -
58M0058226 RECTIFIER
ELECTRICRECTIFIER
ELECTRIC -
610-418051 SCREW-RECTIFIER
ELECTRICSCREW-RECTIFIER
ELECTRIC -
711-45076 NUT-RECTIFIER TERMINAL
ELECTRICNUT-RECTIFIER TERMINAL
ELECTRIC -
889-96054T STARTER SOLENOID
ELECTRICSTARTER SOLENOID
ELECTRIC -
910-41508 SCREW-SOLENOID
ELECTRICSCREW-SOLENOID
ELECTRIC -
1013-26992 WASHER-STARTER SOLENOID SCREW
ELECTRICWASHER-STARTER SOLENOID SCREW
ELECTRIC -
1111-26419 NUT-SOLENOID TERMINAL (#8-32)
ELECTRICNUT-SOLENOID TERMINAL (#8-32)
ELECTRIC -
1213-26992 LOCKWASHER-SOLENOID TERMINAL
ELECTRICLOCKWASHER-SOLENOID TERMINAL
ELECTRIC -
1311-64015 NUT-SOLENOID TERMINAL (1/4-20)
ELECTRICNUT-SOLENOID TERMINAL (1/4-20)
ELECTRIC -
1484-18672A2 WIRING HARNESS (USE WITH REF. #18)
ELECTRICWIRING HARNESS (USE WITH REF. #18)
ELECTRIC -
1484-18672A6 HARNESS (GRAY LEAD HAS RING TERMINAL)
ELECTRICHARNESS (GRAY LEAD HAS RING TERMINAL)
ELECTRIC -
1484-18672A8 HARNESS (GRAY LEAD HAS BULLET CONNECTOR)
ELECTRICHARNESS (GRAY LEAD HAS BULLET CONNECTOR)
ELECTRIC -
-84-88807A14 CABLE (RING/MALE CONNECTOR)
ELECTRICCABLE (RING/MALE CONNECTOR)
ELECTRIC -
-84-88807A15 CABLE (RING/FEMALE CONNECTOR)
ELECTRICCABLE (RING/FEMALE CONNECTOR)
ELECTRIC -
1510-878608 SCREW-WIRING HARNESS LEAD
ELECTRICSCREW-WIRING HARNESS LEAD
ELECTRIC -
1686-638131 TERMINAL BLOCK
MANUALTERMINAL BLOCK
MANUAL -
1710-418051 SCREW-TERMINAL BLOCK (5/8 IN.)
MANUALSCREW-TERMINAL BLOCK (5/8 IN.)
MANUAL -
1710-62568 SCREW-TERMINAL BLOCK (3/8 IN.)
MANUALSCREW-TERMINAL BLOCK (3/8 IN.)
MANUAL -
1816731T01 MERCURY SWITCHMERCURY SWITCH
-
19339-832757A4 IGNITION COIL ASSEMBLYIGNITION COIL ASSEMBLY
-
2084-60466A19 GROUND WIRE-COIL TO SWITCH BOXGROUND WIRE-COIL TO SWITCH BOX
-
2111-45076 NUT-IGNITION COIL TERMINALSNUT-IGNITION COIL TERMINALS
-
2284-813715A12 LEAD ASSEMBLY-SPARK PLUGLEAD ASSEMBLY-SPARK PLUG
-
2385-63709A1 PROTECTOR ASSEMBLYPROTECTOR ASSEMBLY
-
2433-97182Q SPARK PLUGSPARK PLUG
-
2433-14103550 SPARK PLUG
(BELGIUM AND CANADA)SPARK PLUG
(BELGIUM AND CANADA) -
25332-5772A7 SWITCH BOX ASSEMBLYSWITCH BOX ASSEMBLY
-
2610-812987 SCREW-SWITCH BOXSCREW-SWITCH BOX
-
2711-45076 NUT-SWITCH BOX TERMINALSNUT-SWITCH BOX TERMINALS
-
2884-88818A1 CABLE (GREEN)CABLE (GREEN)
-
2884-88819A1 CABLE (GREEN/WHITE)CABLE (GREEN/WHITE)
-
2884-88820A1 CABLE (GREEN/BLACK)CABLE (GREEN/BLACK)
-
2884-88821A1 CABLE (GREEN/RED)CABLE (GREEN/RED)
-
2984-88807A30 CABLE (BLACK)
MANUALCABLE (BLACK)
MANUAL -
3010-878608 SCREW
MANUALSCREW
MANUAL -
3184-813060A1 CABLE
MANUALCABLE
MANUAL -
3214857A16 OIL WARNING MODULE
ELECTRICOIL WARNING MODULE
ELECTRIC -
3310-812987 SCREW-OIL WARNING MODULE
ELECTRICSCREW-OIL WARNING MODULE
ELECTRIC -
3488-19637 SOCKET-FUSE
ELECTRICSOCKET-FUSE
ELECTRIC -
3518758T1 ELECTRICAL BOXELECTRICAL BOX
-
3684-18895A1 TRIM HARNESS
POWER TRIMTRIM HARNESS
POWER TRIM -
3787-19761 RELAY SWITCH
POWER TRIMRELAY SWITCH
POWER TRIM -
38812850 SUPPORT-RELAY
POWER TRIMSUPPORT-RELAY
POWER TRIM -
3987-88890A2 SWITCH ASSEMBLY
ELECTRIC HANDLE W/ PTSWITCH ASSEMBLY
ELECTRIC HANDLE W/ PT -
4087-74605A8 SWITCH ASSEMBLY
ELECTRIC HANDLE W/ PTSWITCH ASSEMBLY
ELECTRIC HANDLE W/ PT -
4110-90342 SCREW
ELECTRIC HANDLE W/ PTSCREW
ELECTRIC HANDLE W/ PT -
4211-24832 NUT
ELECTRIC HANDLE W/ PTNUT
ELECTRIC HANDLE W/ PT -
4384-11149A1 CABLE
ELECTRIC HANDLE W/ PTCABLE
ELECTRIC HANDLE W/ PT -
4489-818999A2 SOLENOID
DESIGN IISOLENOID
DESIGN II -
4523-818968 BUSHING
DESIGN IIBUSHING
DESIGN II -
4625-818967 GROMMET
DESIGN IIGROMMET
DESIGN II -
4710-28667 SCREW (1 IN.)
DESIGN IISCREW (1 IN.)
DESIGN II -
4884-88439A11 CABLE (BLACK)
DESIGN IICABLE (BLACK)
DESIGN II -
498M0084173 VOLTAGE REGULATOR
DESIGN IIVOLTAGE REGULATOR
DESIGN II -
5010-822970 SCREW
DESIGN IISCREW
DESIGN II -
5184-813524A2 CABLE
DESIGN IICABLE
DESIGN II
