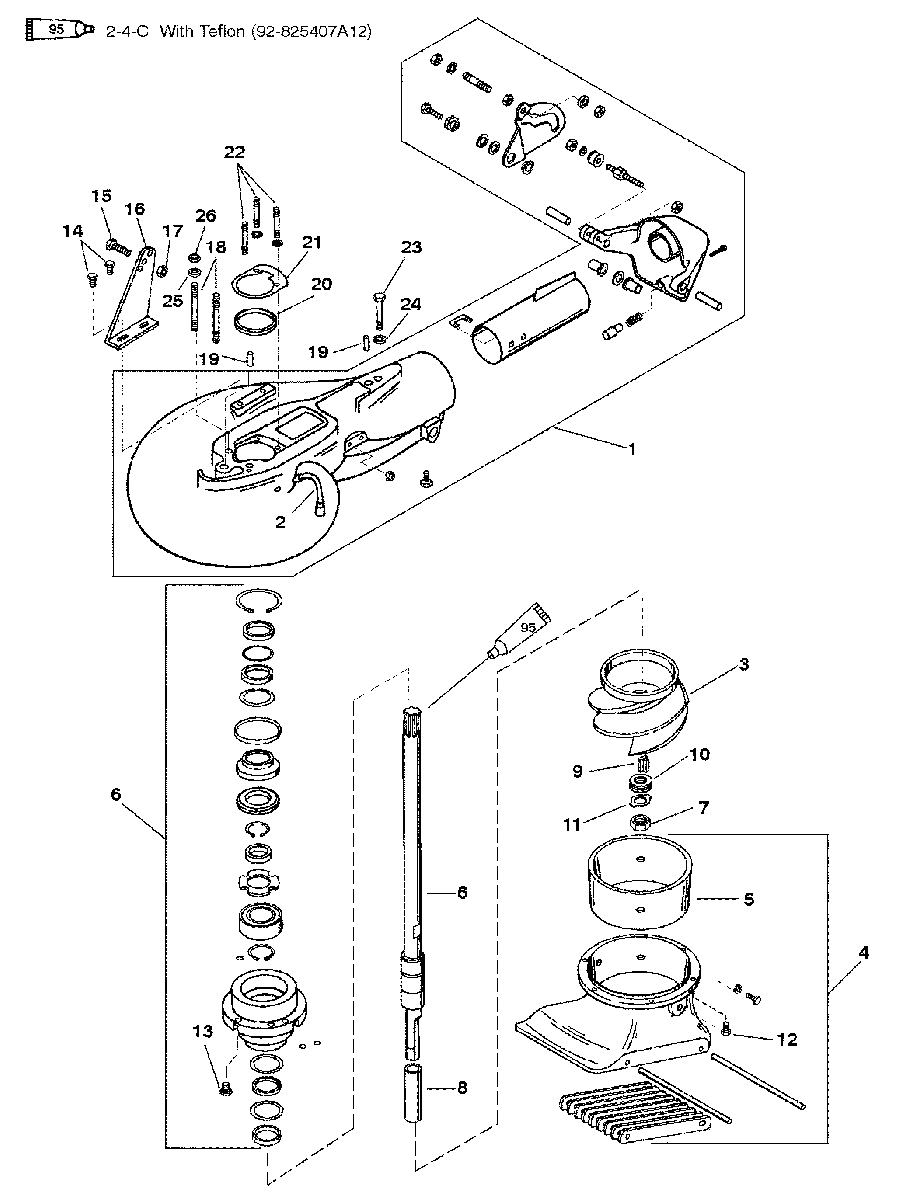

JET PUMP ASSEMBLY для Mercury - 30 JET 9570790 AND UP
-
№АртикулНазвание
-
-80140040 JET PUMP ASSEMBLY
(BLACK)JET PUMP ASSEMBLY
(BLACK) -
-80140140 JET PUMP ASSEMBLY
(GRAY)JET PUMP ASSEMBLY
(GRAY) -
180141140 HOUSING-PUMPHOUSING-PUMP
-
232-827490 HOSE-LUBEHOSE-LUBE
-
347-855708T40 IMPELLERIMPELLER
-
480141240 HOUSING-INTAKEHOUSING-INTAKE
-
5827188T1 LINERLINER
-
645-80141340 SHAFT-DRIVESHAFT-DRIVE
-
711-827190 NUTNUT
-
823-827189 SLEEVE-SHAFTSLEEVE-SHAFT
-
928-801405625 KEYKEY
-
1015-801404625 SHIMSHIM
-
1114-801403625 TAB WASHERTAB WASHER
-
1210-90192 SCREW (1/4-20 X .75)SCREW (1/4-20 X .75)
-
1310-19923088 SCREW (1/4-20 X .875)SCREW (1/4-20 X .875)
-
1410-19923062 SCREW (1/4-20 X .625)SCREW (1/4-20 X .625)
-
1510-60411 SCREW (.312-18 X 1.25)SCREW (.312-18 X 1.25)
-
16801410 BRACKETBRACKET
-
1711-82670910 NUTNUT
-
1816-808718 STUDSTUD
-
1917-801406 PIN-DOWELPIN-DOWEL
-
20801418 RING SUPPORT-WATER PUMPRING SUPPORT-WATER PUMP
-
2127-801408 GASKET-WATER PUMP BASEGASKET-WATER PUMP BASE
-
2216-33778 STUD (1/4 X 2-5/8 IN.)STUD (1/4 X 2-5/8 IN.)
-
2310-68299 SCREW (3/8-16 X 3 IN.)SCREW (3/8-16 X 3 IN.)
-
2412-856774 WASHERWASHER
-
2512-65791 WASHERWASHER
-
2611-34933 NUTNUT
